5. FAILURE OUTPUT DETECTION
5-34
Key Setting Function
Emergency Activation Activates the emergency broadcast
mode.
Emergency Reset Restores to general-purpose
broadcast mode.
Emergency
Reset (error)
Restores to general-purpose
broadcast mode after broadcasting
the false alarm EV message.
All Pre-selects the entire area.
Talk with 2 Tone Chime Makes microphone announcements.
Back Room
Pre-selects individual zones.
GF
1F
2F
3F
EV Message 1
Recalls individual EV messages.
EV Message 2
FailureConrmation Indicates total system failure.
(Assignment of all failure outputs)
Failure Output Reset Resets failure indications.
None No function assigned.
5. FAILURE OUTPUT DETECTION
Here, the settings of the Remote Microphone with the "Failure Output" indication set are used as an example
to explain system operation when a failure occurs.
5.1. Failure Output Indication
[GF Security Room Remote Microphone Settings]
A set of the RM-200X and 3 RM-210 units is installed in the GF Security Room.
RM-210 RM-210
REMOTE MICROPHONE
RM-200X
RM-210
(1) (2) (3)
Remote Microphone
RM-200X
Remote Microphone Extension RM-210

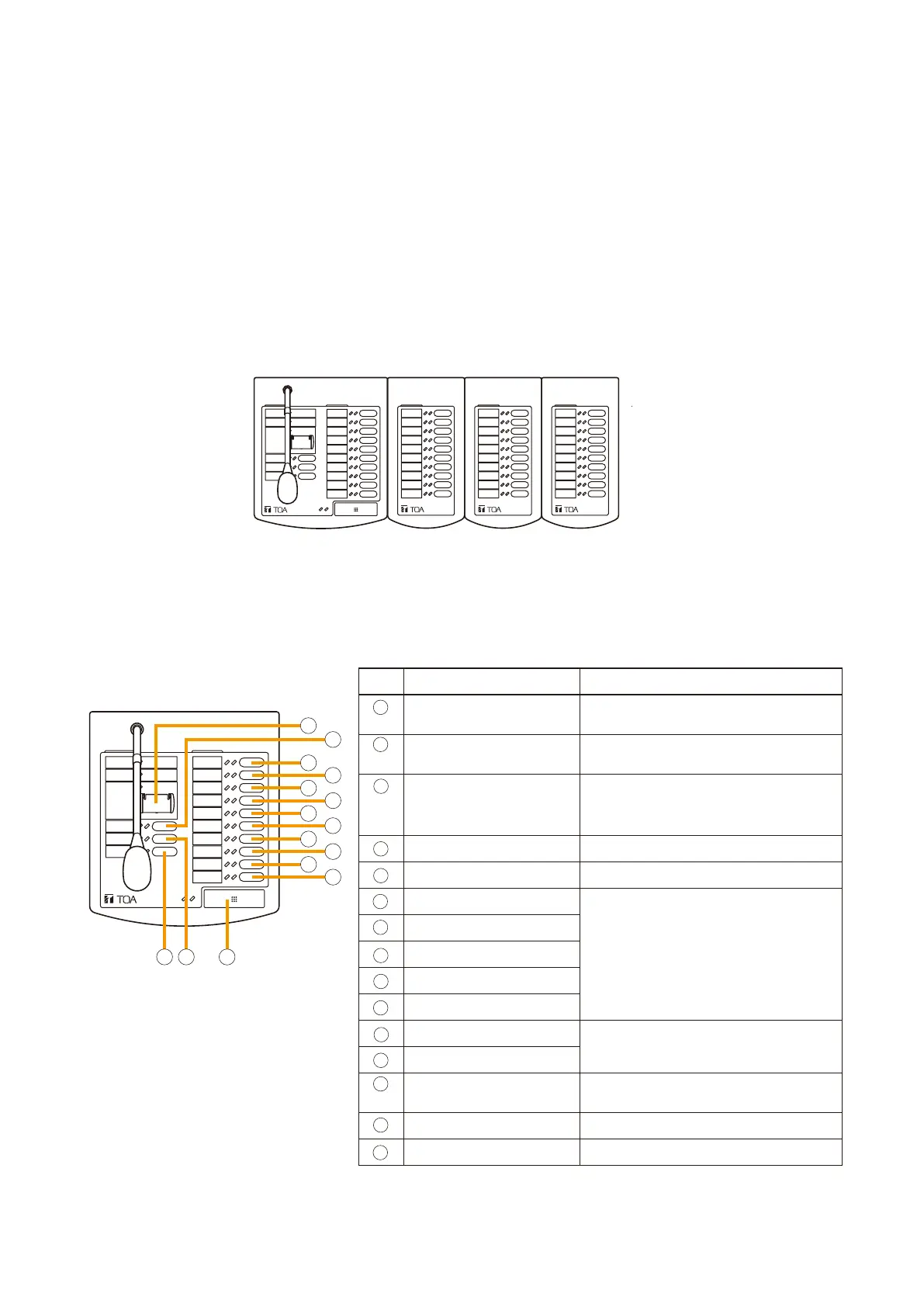

[Function Key Setting Example]
Patterns that indicate individual failures and total system failure are assigned to the Remote Microphone.
REMOTE MICROPHONE
RM-200X
RM-200X
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
