Chapter 5: OPERATION

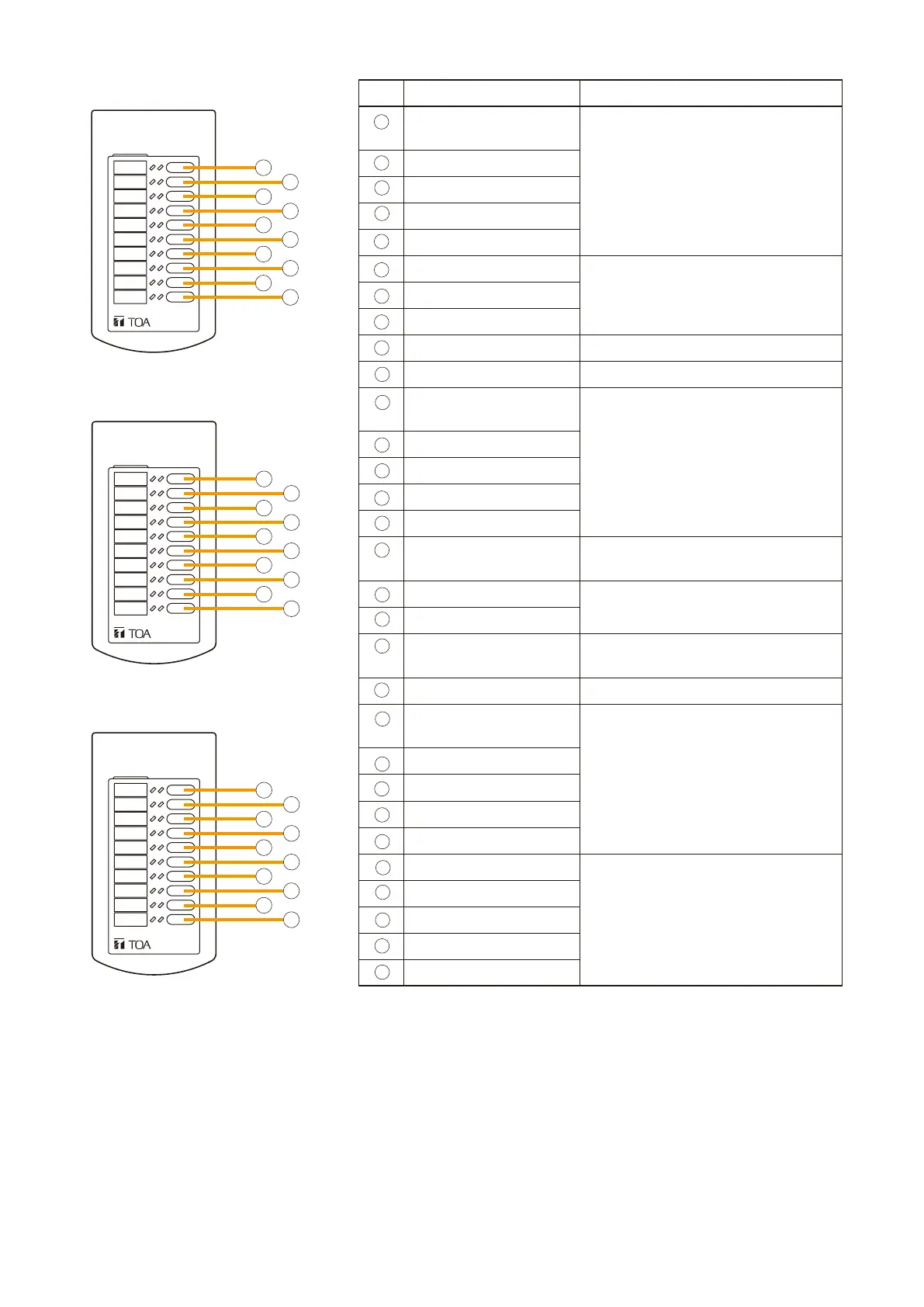

5. FAILURE OUTPUT DETECTION
5-35
RM-210
RM-210
RM-210
RM-210 (2)
RM-210 (3)
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
RM-210 (1)
21
22
23
24
25
16
18
19
17
20
Key Setting Function
Back Room Speaker
Open
Indicates individual speaker failure.
(Open circuit)
GF Speaker Open
1F Speaker Open
2F Speaker Open
3F Speaker Open
RM200XF Failure
Indicates individual Remote
Microphone failure.
RM200X-1 Failure
RM200X-2 Failure
VX Failure Indicates VX-2000 failure.
EV Failure Indicates EV-200 failure.
Back Room Speaker
Short
Indicates individual speaker failure.
(Short)
GF Speaker Short
1F Speaker Short
2F Speaker Short
3F Speaker Short
SF Failure Indicates individual VX-2000SF unit
failure.
DS-1 Failure
Indicates individual VX-2000DS or
VX-3000DS unit failure.
DS-2 Failure
StandbyAmplier
Failure
Indicatesindividualstandbyamplier
unit failure.
None No function assigned.
Back Room Amplier
Failure
Indicates individual power amplier
failure.
GFAmplierFailure
1FAmplierFailure
2FAmplierFailure
3FAmplierFailure
None
No function assigned.
None
None
None
None
