Chapter 7: PC SOFTWARE OFFLINE SETTINGS
9. OPERATION SETTING MODE
7-46
9.2.2. Interrupt broadcast pattern
Up to 50 interrupt broadcast patterns can be created.

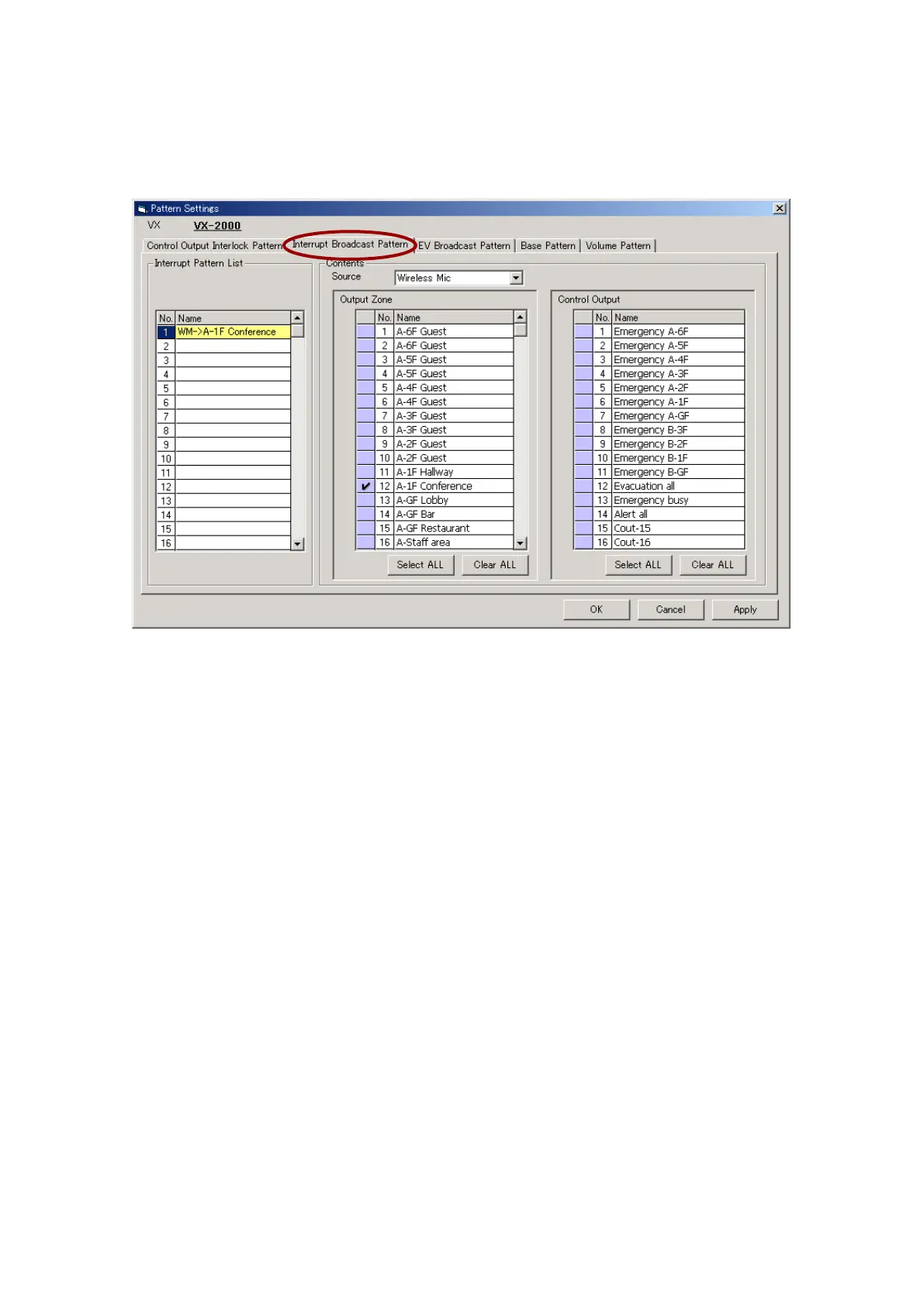

Step 1. Click the [Interrupt Broadcast Pattern] tab.
Step 2. Set the sound source, output zone and control output combination to be activated as interrupt broadcasts
by control input or internal timer.
2-1. Select the sound source.
VX-2000's input sources are displayed in the sound source menu. (The Remote Microphone, however,
is not listed in the source pull-down menu because the Remote Microphone broadcast can be made by
selecting zones, requiring no pattern settings.)
2-2. Select the output zone.
The pattern name will be displayed in the Interrupt Pattern List. The pattern name can also be changed,
if desired. Select a line to rename, then click on it again, and the name can be changed.
2-3. Select the control output.
Select the control output to be activated during interrupt broadcast.
To Next Page
