Chapter 9: CONNECTIONS
7. CABLE DISTANCE BETWEEN COMPONENTS
9-38

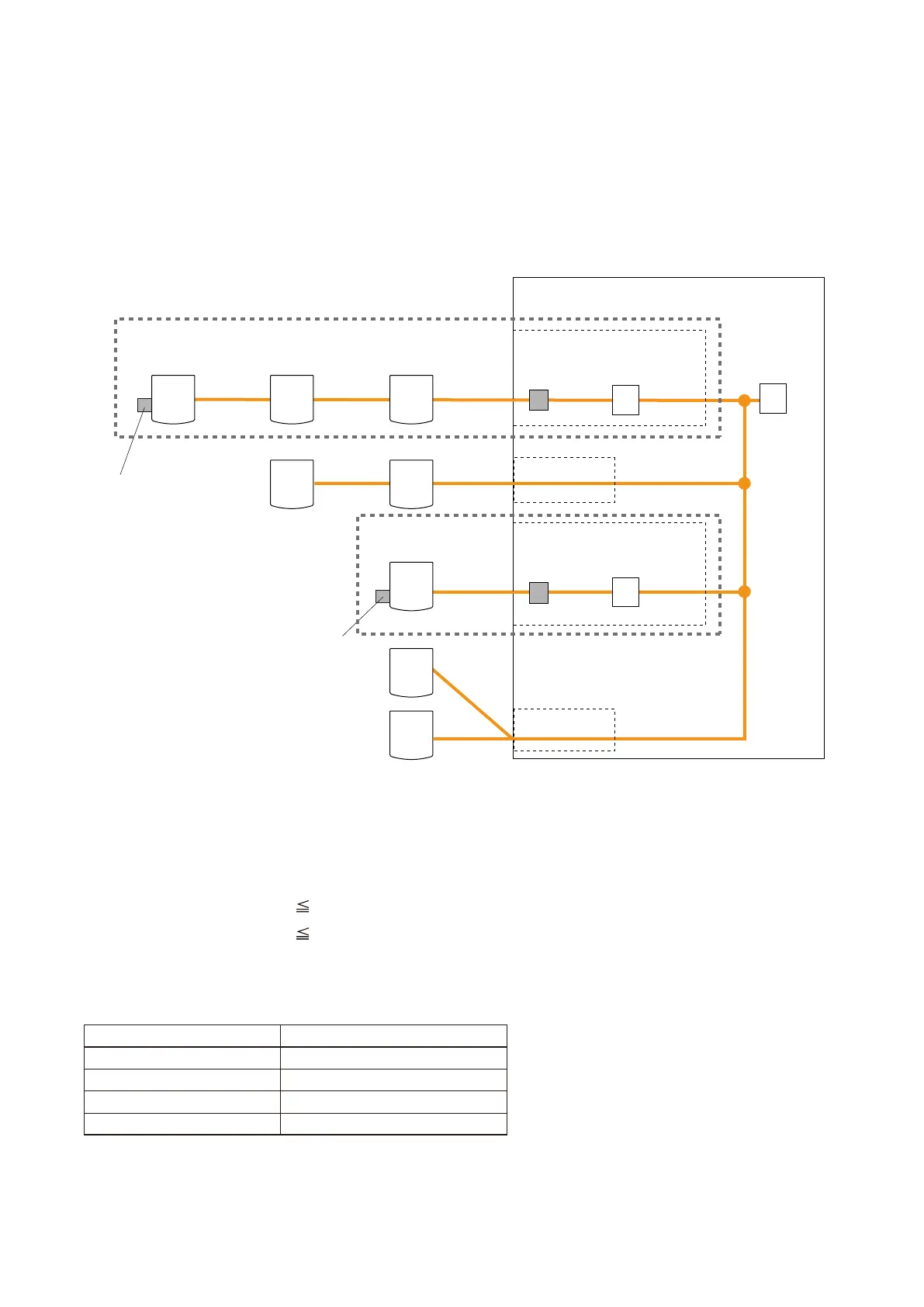

[Connection example and total cable distance]
Termination (100 Ω)
Termination (100
Ω)
VX-2000
VX-200XR with repeater
VX-200XR with repeater
VX-200XR
VX-200XR
RM
RM
RM
RM
RM
RM
RM
RM
abc
de
f
g
h
Transceiver
Repeater
Termination
(100 Ω)
Repeater
Termination
(100
Ω)
Total cable length between each repeater-mounted VX-200XR and its connected Remote Microphones can be
extended to up to 900 m. In this cable extension method, there is no limitation to the maximum cable distance
between components.
a + b + c
900 m
f
900 m
Example
All cable type can be extended up to 900 m.
Alsoattacha100ΩterminatingresistortothefurthestdistantRemoteMicrophone.
This setting permits the total cable length between the Remote Microphones and the repeater-mounted VX-
200XR to be extended to up to 900m (using Cat. 5 STP cable).
(Refer to
p. 9-39 for the setting procedure.)
7.2.2. Mount the Repeater on the VX-200XR and set the Doubly Terminated Bus Topology
If you need more extension, please contact your nearest TOA dealer.
Cable Type Total Cable Distance
Belden 85102 900 m
Belden 8471 900 m
Level IV, 22AWG 900 m
Cat. 5 STP 900 m
