Toa VX-2000SF - Surveillance Frame VX-2000 Sf

Chapter 2: PRODUCT DESCRIPTIONS
2. NOMENCLATURE AND FUNCTIONS
2-14

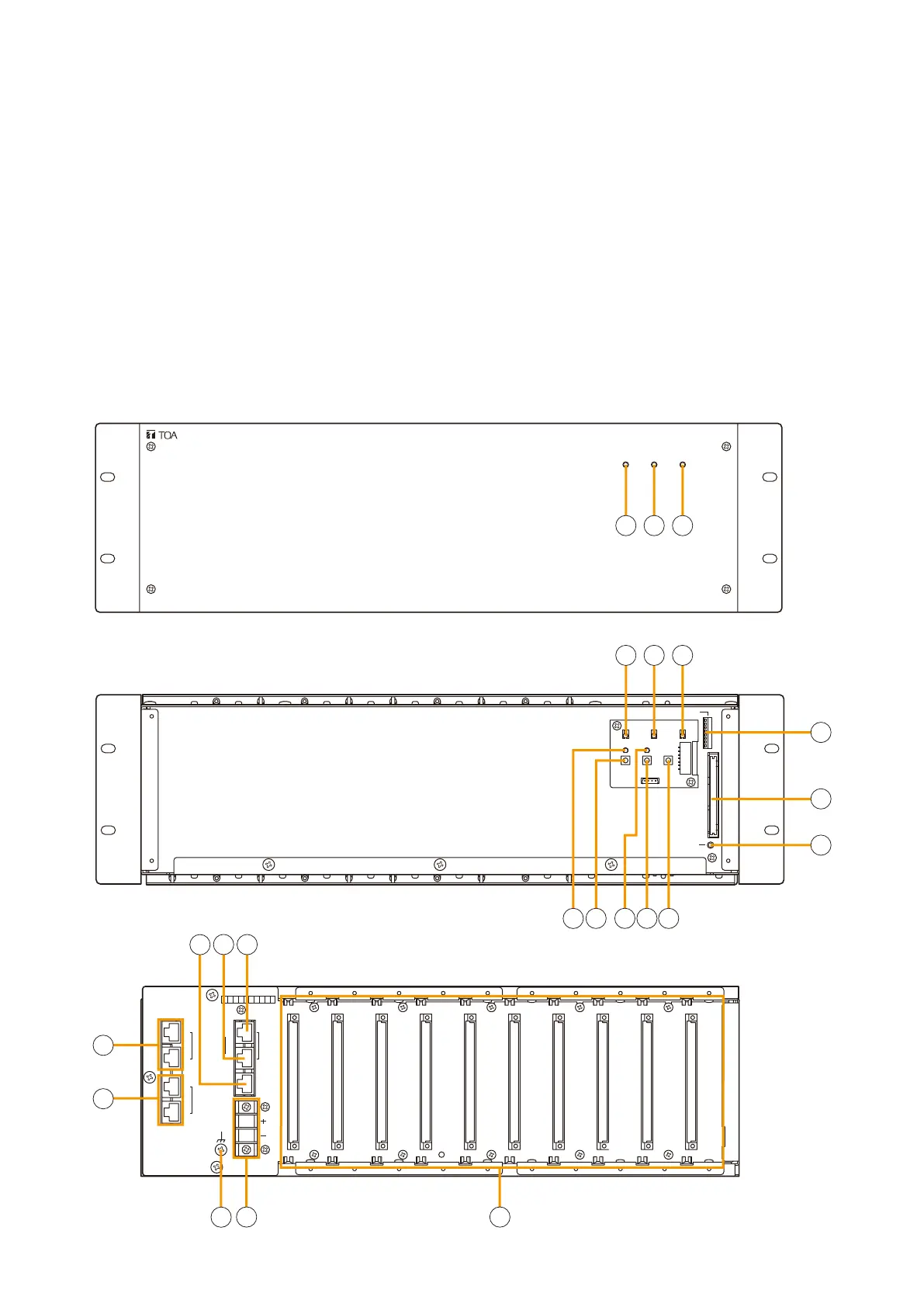

2.8. Surveillance Frame VX-2000SF
RUN FAULT POWER
SETTINGS
ATA FLASH CARD
ACCESS
DS-SF
LINK
1
2
IN
OUT
SLOT No.
AUDIO
LINK
DC POWER IN
STANDBY
PA LINK
DATA
LINK
10 987654 213
SURVEILLANCE FRAME VX-2000SF
[Front panel detached]
[Rear]
[Front]
4
5
6
7
8
9
11
13
15
16
18
17
23
1
23
1
19
10
12
14
• TheVX-2000SFSurveillanceFrameisthemainmatrixsectionoftheVX-2000systemthatassignsaudio
signals to individual zones from 4 audio buses. It can be extended to up to 8 units*.
• Atotalof10unitsofoutput modulesandcontrol modulescanbeinstalledperVX-2000SF. The following
4 types of modules can be used: the VX-200SP Pilot Tone Detection module, the VX-200SZ Impedance
Detection module, the VX-200SI Control Input module, and the VX-200SO Control Output module.
• Theoutputmodulefeaturesafailuredetectionfunction,andcandetectfailuresthatoccurbetweentheVX-
2000 unit and the speaker lines.
• OnestandbyamplifiercanbeconnectedperVX-2000SF.Shouldthepoweramplifierfail,outputisautomatically
switched to the standby amplifier.
• TheoutputvolumetothepoweramplifiercanbesetusingthePCsystemsoftware.
* Available when the label on each packing box of the VX-2000 system components (VX-2000, VX-2000SF,
RM-200X, and RM-200XF) indicates "EN80," and the Setting Software Version is 3.0 or later.
