Toa VX-2000SF - Mounting the Assembly of Rm-200 Xf and Its Extension Rm-210 on a Wall

Chapter 8: INSTALLATION AND SETTING PROCEDURES (HARDWARE)
1. RM-200XF AND RM-200X MICROPHONES
8-8
1.3. Mounting the Assembly of RM-200XF and Its Extension RM-210 on a Wall
When adding an RM-210 Remote Microphone Extension to expand the RM-200XF, use the optional WB-RM200
Wall Mounting Bracket.
[Necessary mounting hardware for adding the RM-210]
As the mounting bracket for the RM-210 is an optional product (model WB-RM200), prepare it separately.
Wall mounting bracket for the RM-210 (model WB-RM200) ...... 1 (optional)
M3.5 screw for wiring box .......................................................... 2 (supplied with the WB-RM200)
Tapping screw for wooden wall .................................................. 2 (supplied with the WB-RM200)

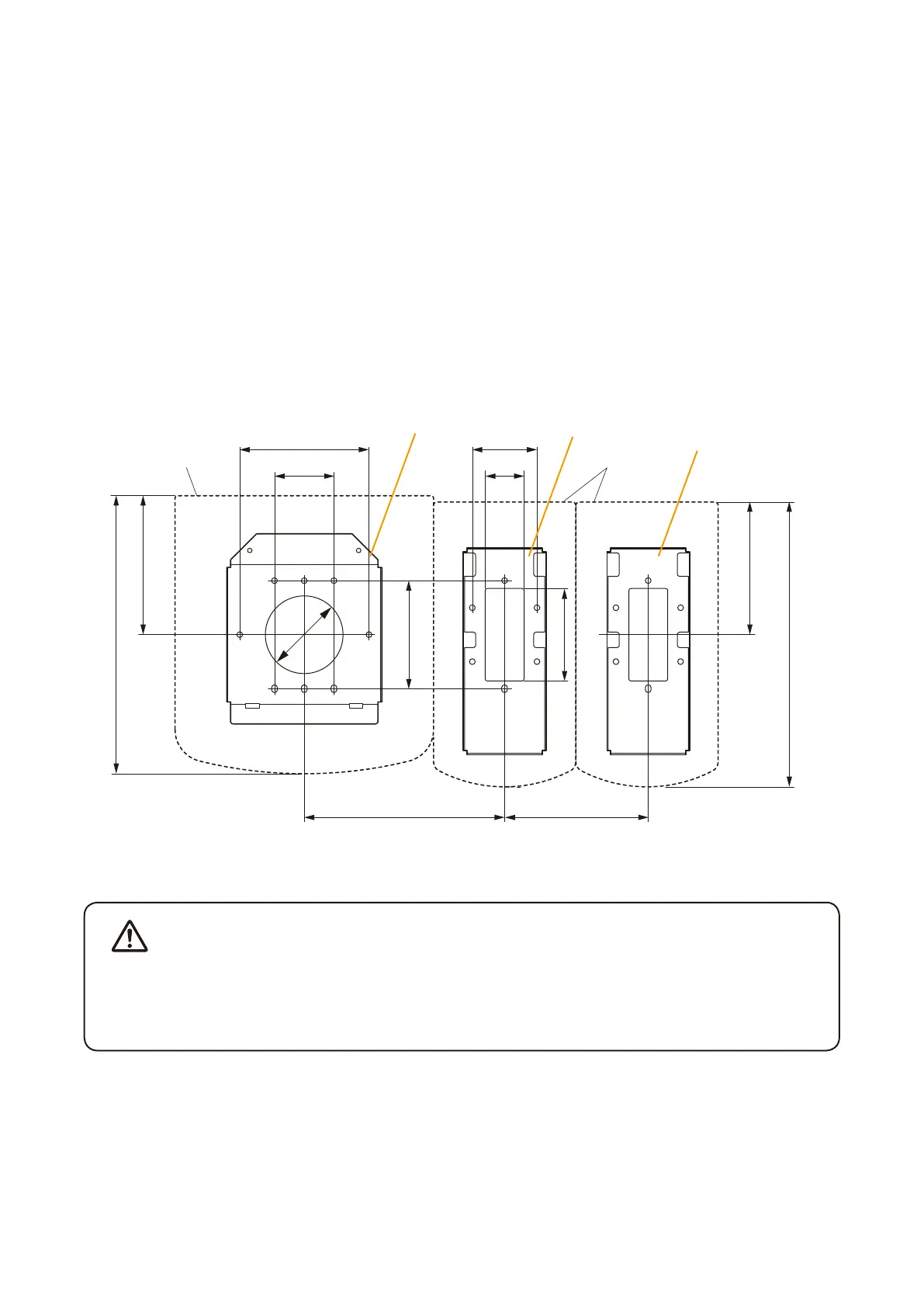

Step 1. Attach the RM-200XF and RM-210 wall-mounting brackets to the wall.
46
ø60
71.5 83.5
102.8
220.3
107.6
215
30
100
155 111
50
Wall mounting bracket
for the RM-200XF
WB-RM200
(Optional)
WB-RM200
(Necessary if one more
RM-210 is added.)
RM-200XF RM-210
• Installtheunitonlyinalocationthatcanstructurallysupporttheweightoftheunitandthemounting
bracket. Doing otherwise may result in the unit falling down and causing personal injury and/or
property damage.
• Besuretouseatleast2screwswhenmountingthebrackettothewall.
Continued on next page
Unit: mm
WARNING
