Chapter 8: INSTALLATION AND SETTING PROCEDURES (HARDWARE)
1. RM-200XF AND RM-200X MICROPHONES
8-7

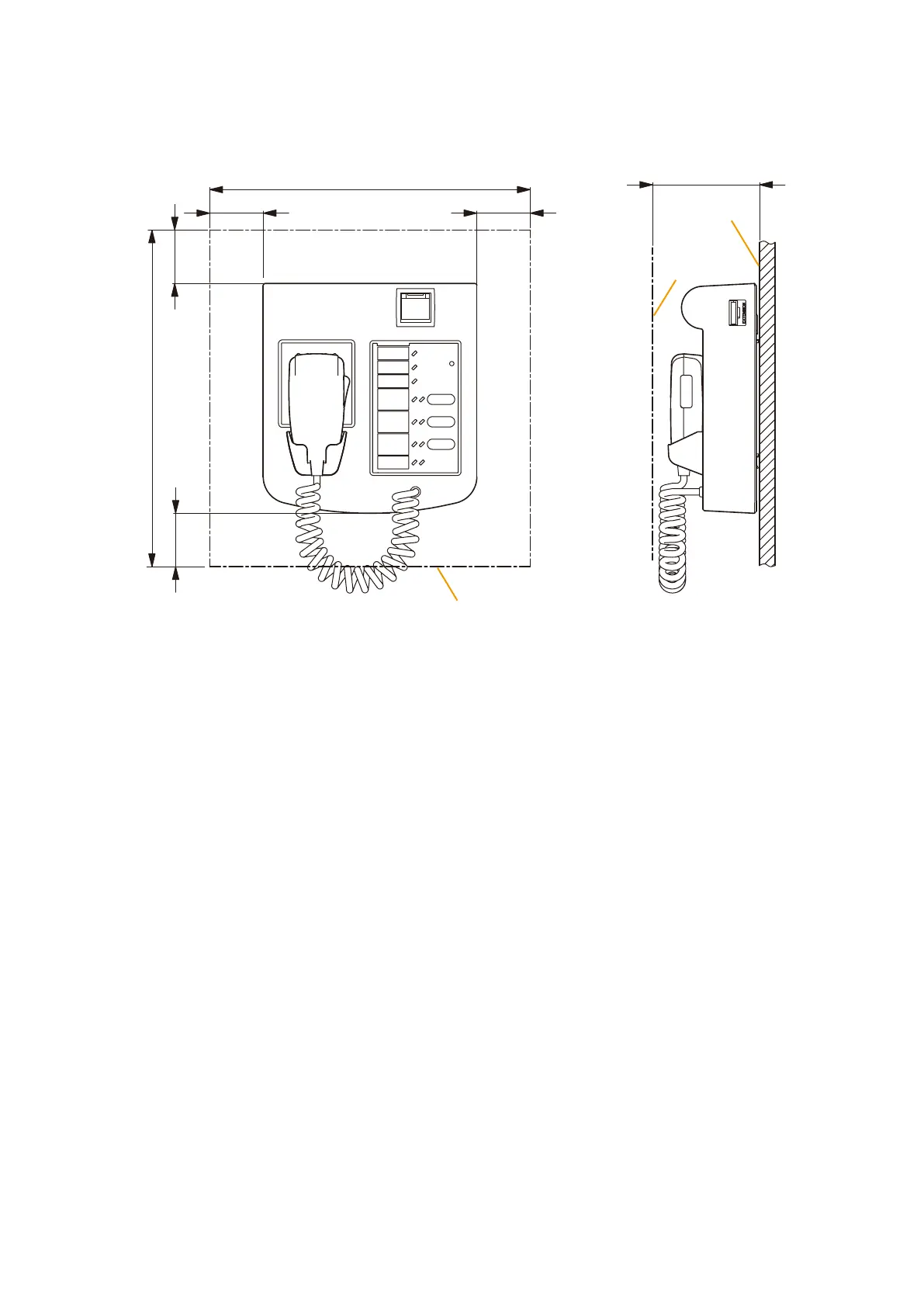

When the RM-200XF is installed in a wall box (prepare separately), the box should measure at least 300 mm
wide x 315 mm high as illustrated below.
300 min.
50 min.
50 min.
50 min.
50 min.
315 min.
Effective depth: 100 min.
Mounting
base surface
Rear surface of
the front door
Inside dimension of the box
Unit: mm
