7. CABLE DISTANCE BETWEEN COMPONENTS
9-42
6
3
RJ45 male connector
Use Cat.5 cable's inner wires.
The RJ45 male connector needs to be arranged for use as a terminator referring to the procedure below.
All the parts used here should be prepared locally.
Asfora100Ωresistoramongtheparts,itisavailableasaservicepartasfollows.
•MountingaterminatorontheRM-200X
LINK
DC POWER IN
24V
MICSP
EXTERNAL
MIC IN
RM-200X Rear
To the next Remote Microphone
or VX-200XR
Terminator

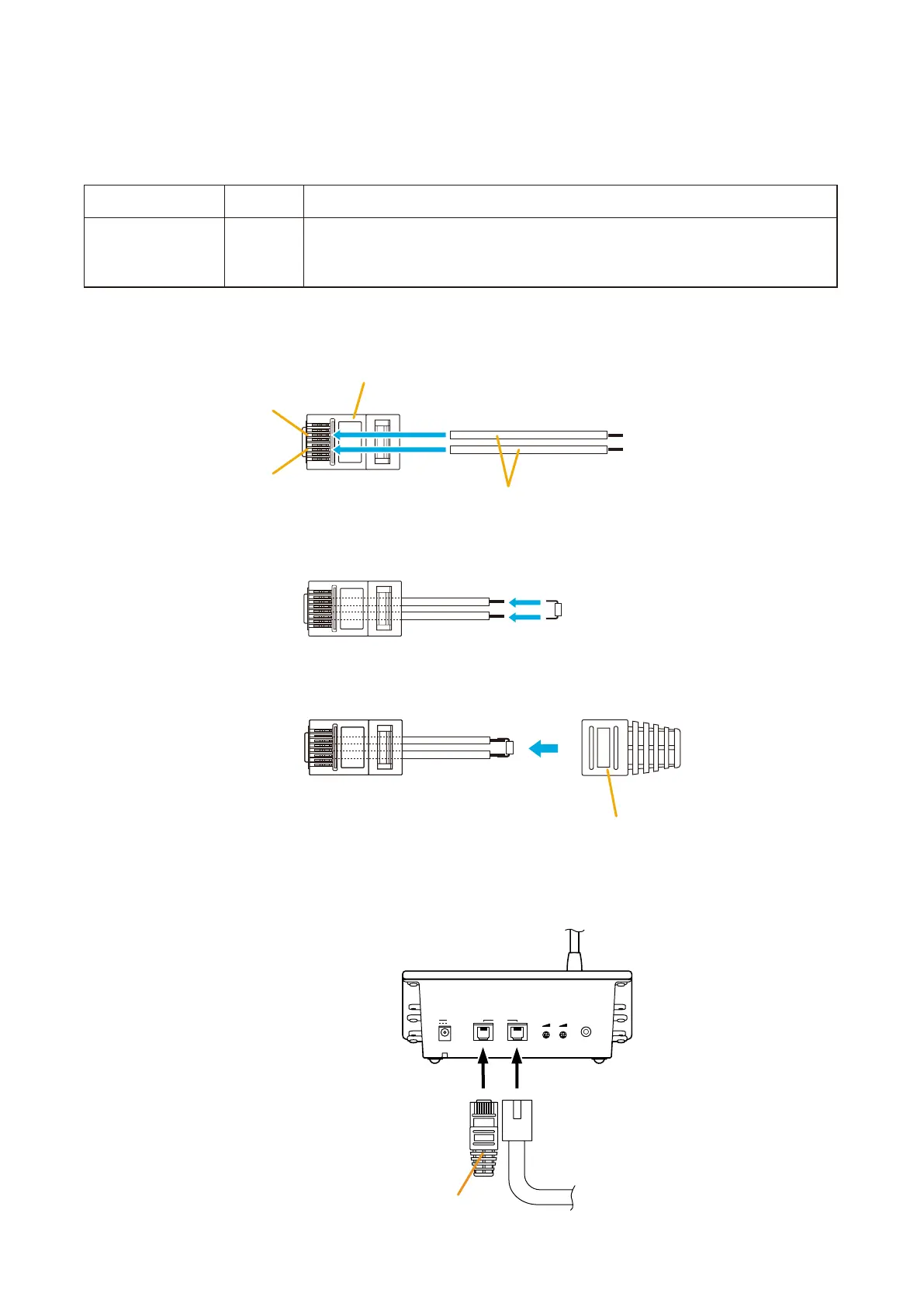

Step 1. Fasten Cat.5 cable's inner wires in Pins 3 and 6 of the RJ45 male connector using a crimp tool.
Resistor 100 Ω
Protective modular cover
Step 2. Soldera100Ωresistortotheendsofbothcables.
Step 3. Mount a protective modular cover onto the connector.
Step 4. Plug the assembled terminator into the RM-200X's LINK connector not in use.
Note
Mount the terminator on the last RM-200X
connected only to the modified VX-200XR
for doubly terminated bus topology.
Parts Quantity Description
100Ωresistor 1 1/4 W or 1/5 W
EquivalenttoTOAPartCode112-31-041-10(R25100Ω5%)
orTOAPartCode112-71-025-70(R20100Ω5%)
