Chapter 9: CONNECTIONS
7. CABLE DISTANCE BETWEEN COMPONENTS
9-41

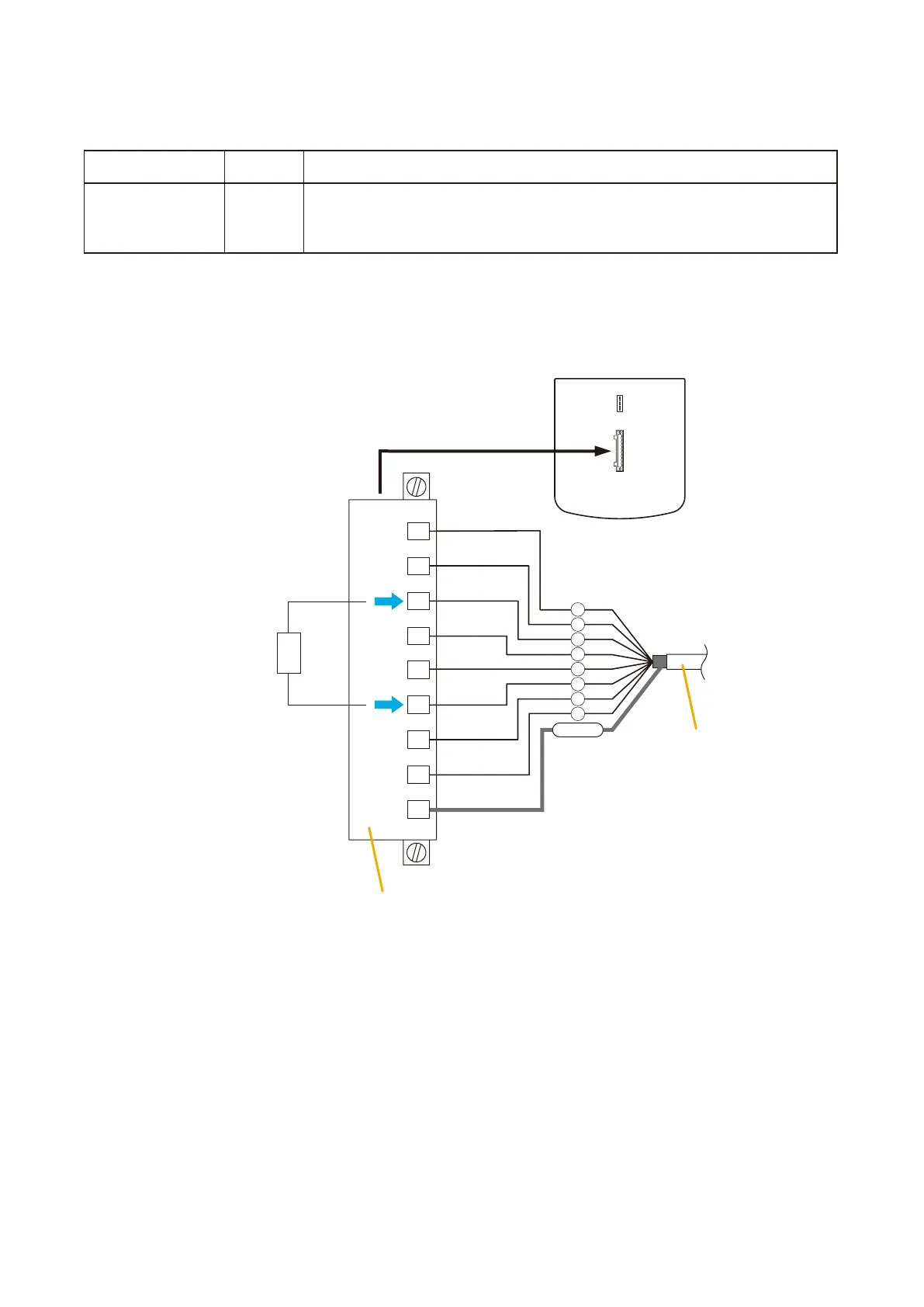

[Mounting a resistor to the plug-in screw terminal]
Prepare the following part separately.
RJ45 connector
Pin No.
Plug-in screw terminal (supplied with the RM-200XF)
1
2
5
6
3
4
7
8
Shield
Cat. 5 STP
Monitor in (H)
Monitor in (C)
RM data
Audio out (H)
Audio out (C)
RM data
DC power in (+)
DC power in (–)
Shield
Resistor 100 Ω
RM-200XF Bottom
Connectaresistorof100ΩacrosstheRMdataterminalstogetherwithconnectioncablesasshowbelow.
Parts Quantity Description
100Ωresistor 1 1/4 W or 1/5 W
EquivalenttoTOApartcode:112-31-041-10(R25100Ω5%)
orTOApartcode:112-71-025-70(R20100Ω5%)
