7. CABLE DISTANCE BETWEEN COMPONENTS
9-40
•MountingaterminatorontheRM-200XF
The following 2 methods are available to terminate the RM-200XF: Internal switch setting and External resistor
mounting.
Be sure to perform either method because doing both methods may cause system malfunction.
[Setting inside the RM-200XF]

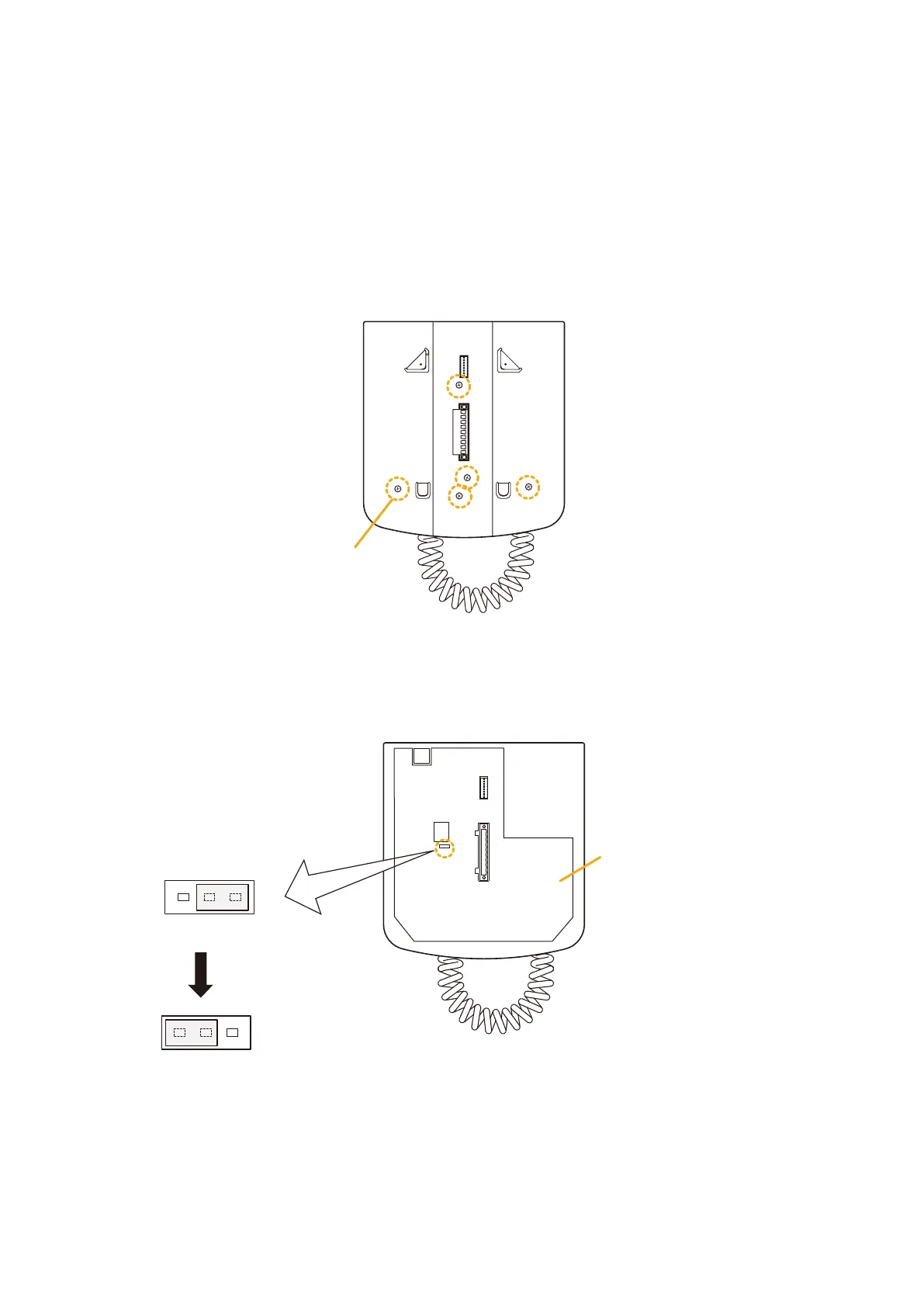

Step 1. Unscrew the RX-200XF's bottom plate.
RM-200XF's bottom
Unscrew
Step 2. Unplug the jumper socket connected across the pins 2 and 3. Then, plug it again into Pins.
RM-200XF's bottom
FTT10A
Factory-connected
between Pins 2 and 3.
Connecting between Pins 1 and
2 turns the terminator ON.
1 3
1 3
PCB board
Step 3. Replace the removed plate.
