Toa VX-2000SF - Page 232

Chapter 9: CONNECTIONS

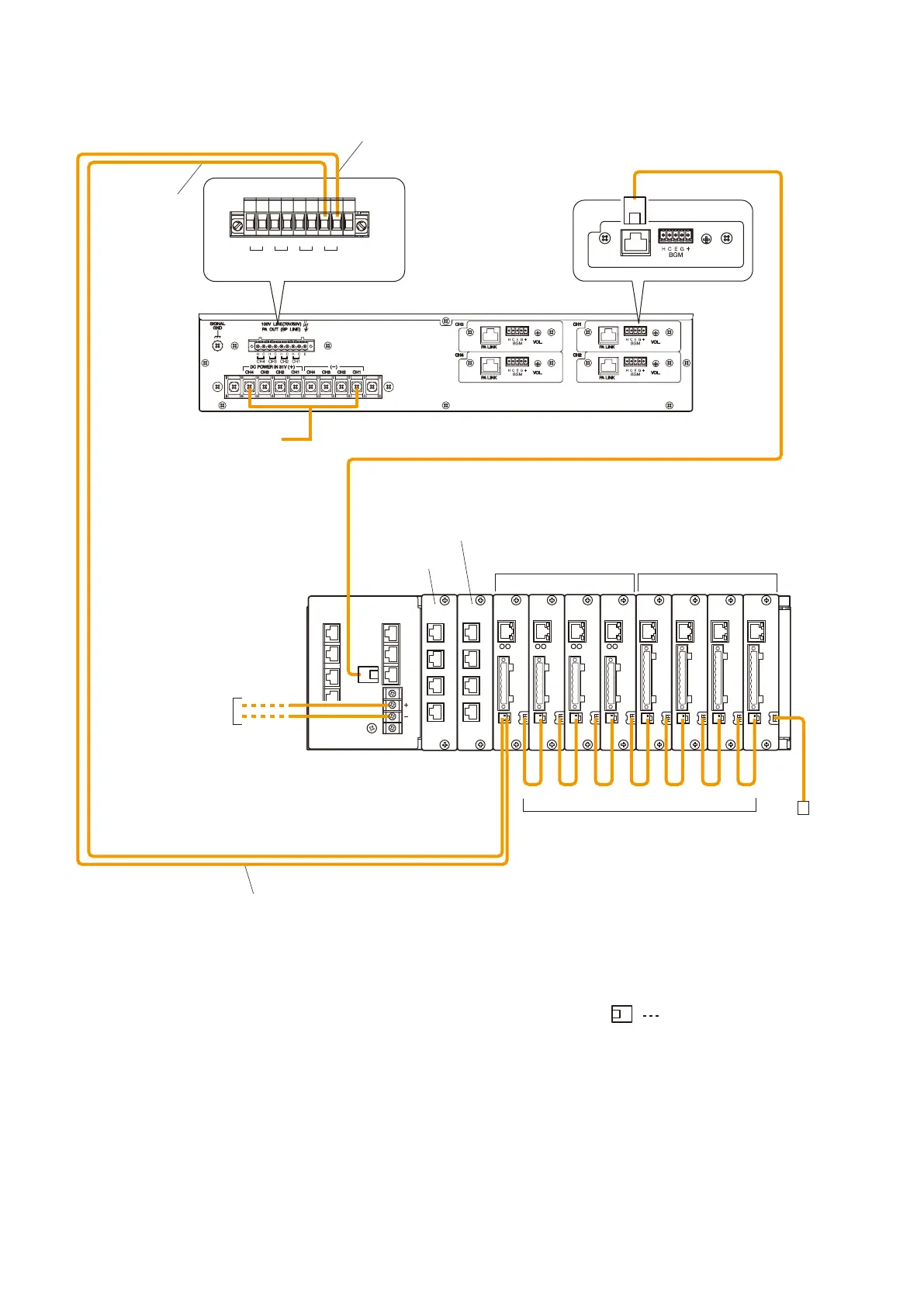

4. CONNECTIONS BETWEEN VX-2000SF AND STANDBY AMPLIFIER
9-10
DC POWER IN
STANDBY
PA LINK
RJ45 male connector
Cat. 5 STP
Red
Black
VX-200SZ VX-200SP
VX-200SO
VX-200SI
[VX-2000SF Rear]
Standby Amp. cable (supplied with the VX-2000SF)
Unused
Be sure to connect between all
STANDBY PA BUS connectors
as shown above.
From VX-2000DS'
or VX-3000DS'
DC POWER OUT
From VX-3000DS'
DC POWER OUT
[VP-3504 Rear]
Amplifier output terminal
PA LINK
VOL.
HCHCHCHC E
CH4 CH3 CH2 CH1
PA OUT (SP LINE)
[When VP-3504 is used]
