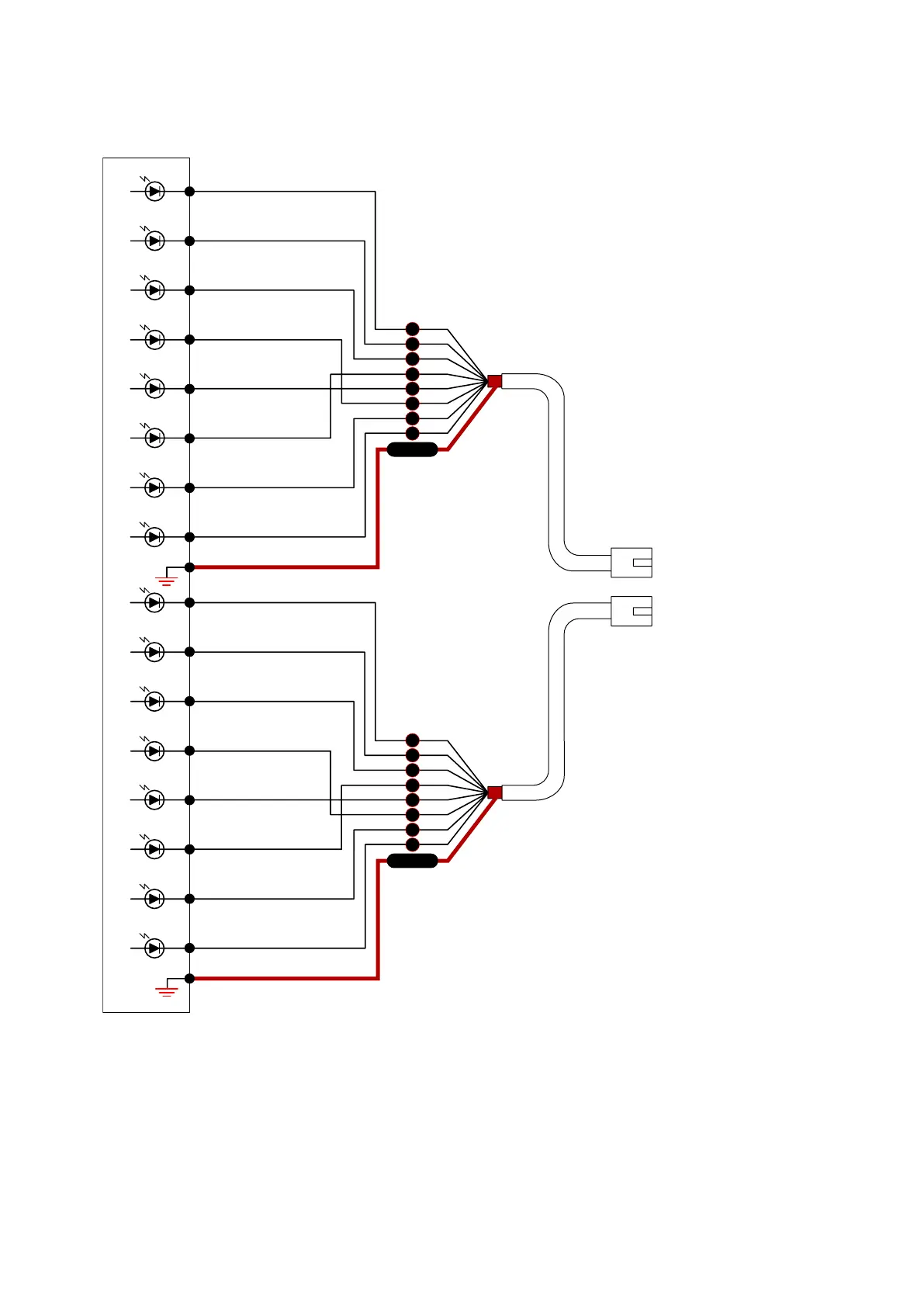

6. CONNECTION CABLE PIN ASSIGNMENT
9-29
To VX-2000 CTRL OUT
RJ45 connector
Pin No.
1
2
5
4
3
6
7
8
Shield
1 – 8
CTRL OUT 1
CTRL OUT 2
CTRL OUT 3
CTRL OUT 4
CTRL OUT 5
CTRL OUT 6
CTRL OUT 7
CTRL OUT 8
CTRL OUT 1 – 8 Common
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CTRL OUT 9
CTRL OUT 10
CTRL OUT 11
CTRL OUT 12
CTRL OUT 13
CTRL OUT 14
CTRL OUT 15
CTRL OUT 16
CTRL OUT 9 – 16 Common
RJ45 connector
Pin No.
1
2
5
4
3
6
7
8
Shield
9 – 16
VX-2000 Control Output
Electrical characteristics
Withstand voltage: 30 V DC
Contact current: Under 5 mA
Circuit: Open collector output
Because the VX-2000's control output uses photocouplers, it can be insulated by performing settings.
Through these settings, CTRL OUT 1 – 8 Common terminal and CTRL OUT 9 – 16 Common terminal are
disconnected from the VX-2000's internal GND terminal. (Refer to p. 8-17 for the setting procedure.)
[VX-2000 Control output connection example]
