WorkCentre 3210/3220 Multifunction Printer Service Manual 2-25
Theory of Operation
Power Supply
The Power Supply (switch-mode power supply, SMPS) supplies DC power for
driving the printer, and the AC heater control, which supplies power to the
Fuser.
The Power Supply has two output channels: +5.0 V and +24 V.
AC Input
■ Input rated voltage:
■ AC 110 V~127 V
■ AC 220 V~240 V
■ Input voltage fluctuation range:
■ AC 90 V~135 V
■ AC 180 V~270 V
■ Rated frequency: 50/60 Hz
■ Rated frequency fluctuating range: 47~63 Hz
■ Input current: under 4.0 A/ 2.0 A (when the lamp is Off or under rated
load)

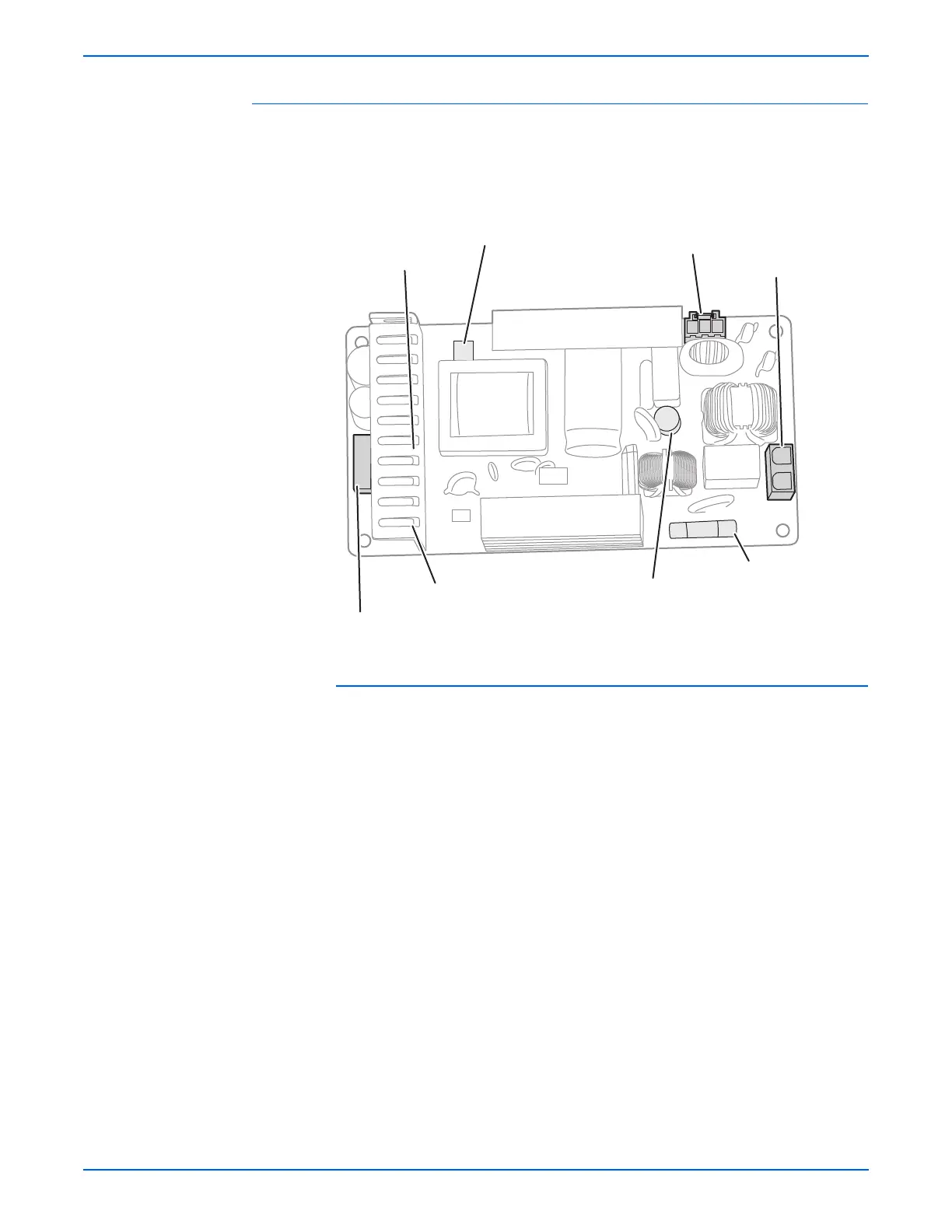

CON2 Heat Lamp
CON4 Main Controller PBA 24V: 3 5 7 9; 5V: 11 13 15
F72 250V 4A
PC51 TLP3061F
F71 SH: 250V 4A
F02 250V 3.15A
F1 V2C: 250V 8A;
V1: 250V 10A
s3210mfp-247
CON1 AC Power

Xerox WORKCENTRE 3210 Specifications

General

Print Technology	Laser
Functions	Print, Copy, Scan, Fax
Print Speed	Up to 24 ppm
Duplex Printing	Manual
Monthly Duty Cycle	Up to 30, 000 pages
Processor Speed	360 MHz
Memory	128 MB
Standard Paper Capacity	250 sheets
Scanner Type	Flatbed, ADF
Fax Transmission Speed	33.6 Kbps
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Folio, Legal, Letter
Scan Resolution	Up to 4800 x 4800 dpi
Maximum Paper Size	8.5 x 14 in (Legal)
Operating System Compatibility	Windows, Mac OS
Print Resolution	600 x 600 dpi
