CDM-625 Advanced Satellite Modem Revision 13
Ethernet-based Remote Product Management MN-CDM625
6–9

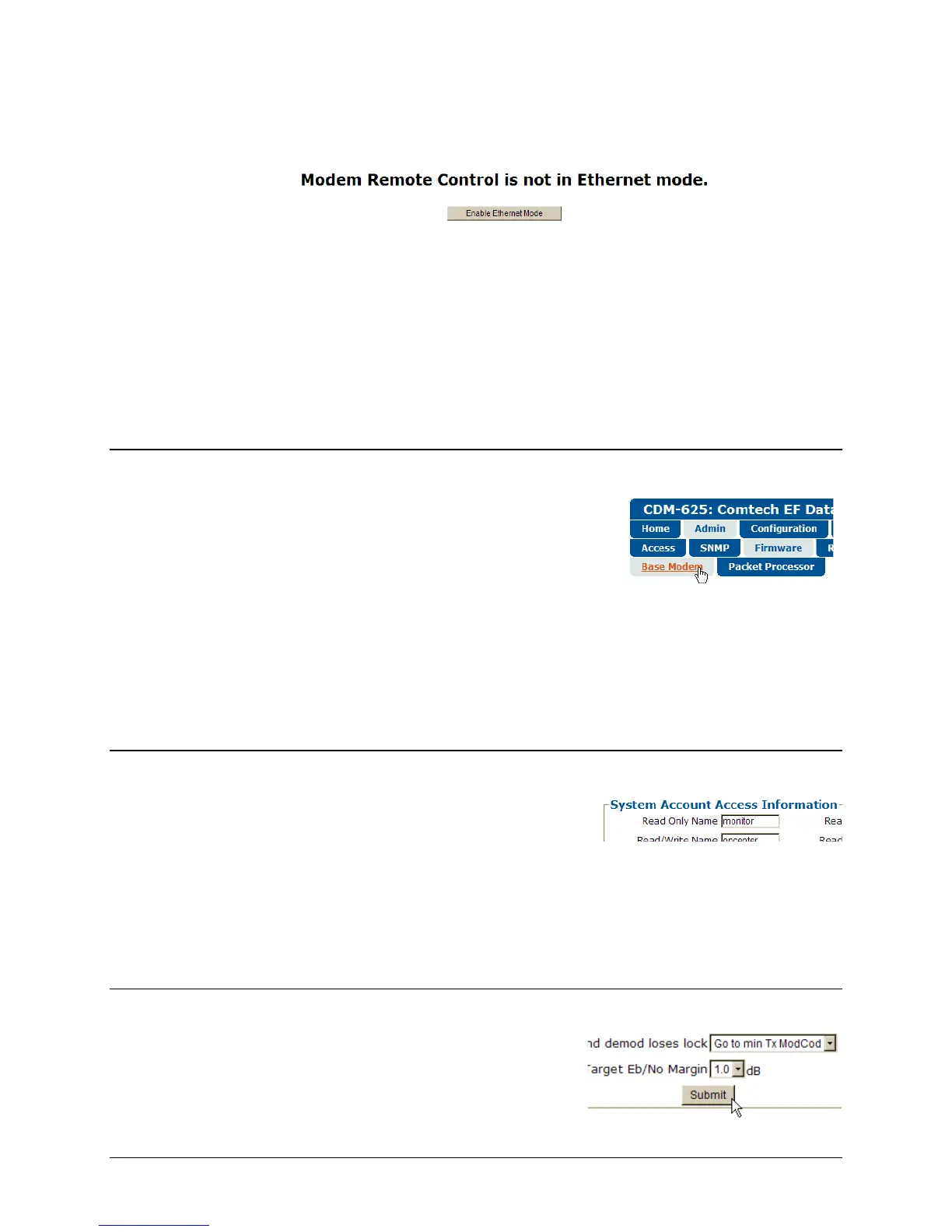

remote control for the CDM-625 has not been set to Ethernet mode, access is blocked and the
following error message displays in the browser window:
Click [Enable Ethernet Mode] to switch over from your current mode to Ethernet Mode.
Alternately, From the CDM-625 front panel, use the
◄ ► arrow keys to navigate to, and the ▲ ▼
arrow keys to edit, the remote control configuration menu (press ENTER when done):
SELECT: Configuration Remote Remote Control=Ethernet
6.5.2 Web Server Interface – Operational Features
6.5.2.1 Navigation
The CDM-625 Web Server Interface features navigation tabs
located at the top of each page. After you click a navigation
tab, you may click an available primary page tab. In turn, any
nested tabs appear for further selection.
This manual uses a naming format for all pages to indicate the depth of navigation needed to
view the subject page: “Top Level Tab | Primary Page Tab | Nested Tab”.
For example: “Admin | Firmware | Base Modem” is interpreted to mean “first click the top-
level ‘Admin’ navigation tab; then, click the ‘Firmware’ primary page tab; finally, click the nested
‘Base Modem’ tab.”
6.5.2.2 Page Sections
Each page features one or more sections. The title at the
upper-left corner of each page or page section describes its
operational features. Each section can feature editable
fields, action buttons, and read-only displays for a specific
function.
This manual explains the purpose and operation for each Web page on a per-page, per-section
basis.
6.5.2.3 Action Buttons
Action buttons are important in the Web Server Interface.
