CDM-625 Advanced Satellite Modem Revision 13

Appendix A MN-CDM625

A-2

A.1.1 EIA-530 to RS-422/449 DCE Conversion Cable

Use the EIA-530 to RS-422/449 DCE Conversion Cable (Figure A-1) for connections between the CDM-625 and the user data.

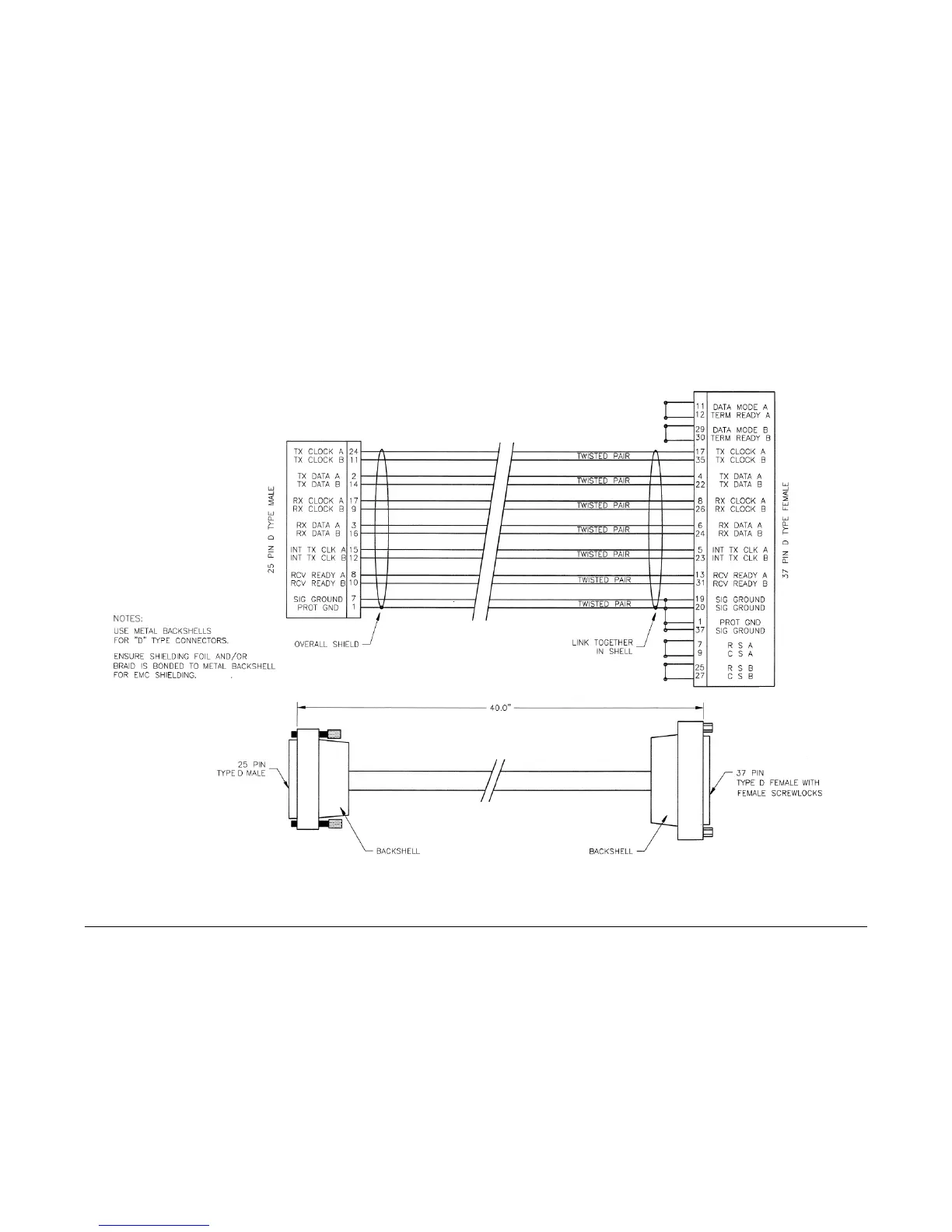

Figure A-1. EIA-530 to RS-422/449 DCE Conversion Cable (CEFD P/N CA/WR0049)
