CDM-625 Advanced Satellite Modem Revision 13
Ethernet-based Remote Product Management MN-CDM625
6–49
Up to eight keys may be programmed for each function; once set, a specified Encryption Key
may then be selected for active use via the ‘Configuration | Routing | Routes’ page (Sect.
6.5.4.3.3.1).
The user must program all eight encryption and decryption keys before selecting
Random Key operation on the ‘Configuration | Routing | Routes’ page. Otherwise,
the modem will select any of the eight allotted keys, even if a key is currently clear
(set to all zeroes).
6.5.4.3.6 Configuration | Overhead
This page appearance is dependent on whether Carrier-in-Carrier Automatic Power
Control (CnC-APC) Mode is selected.

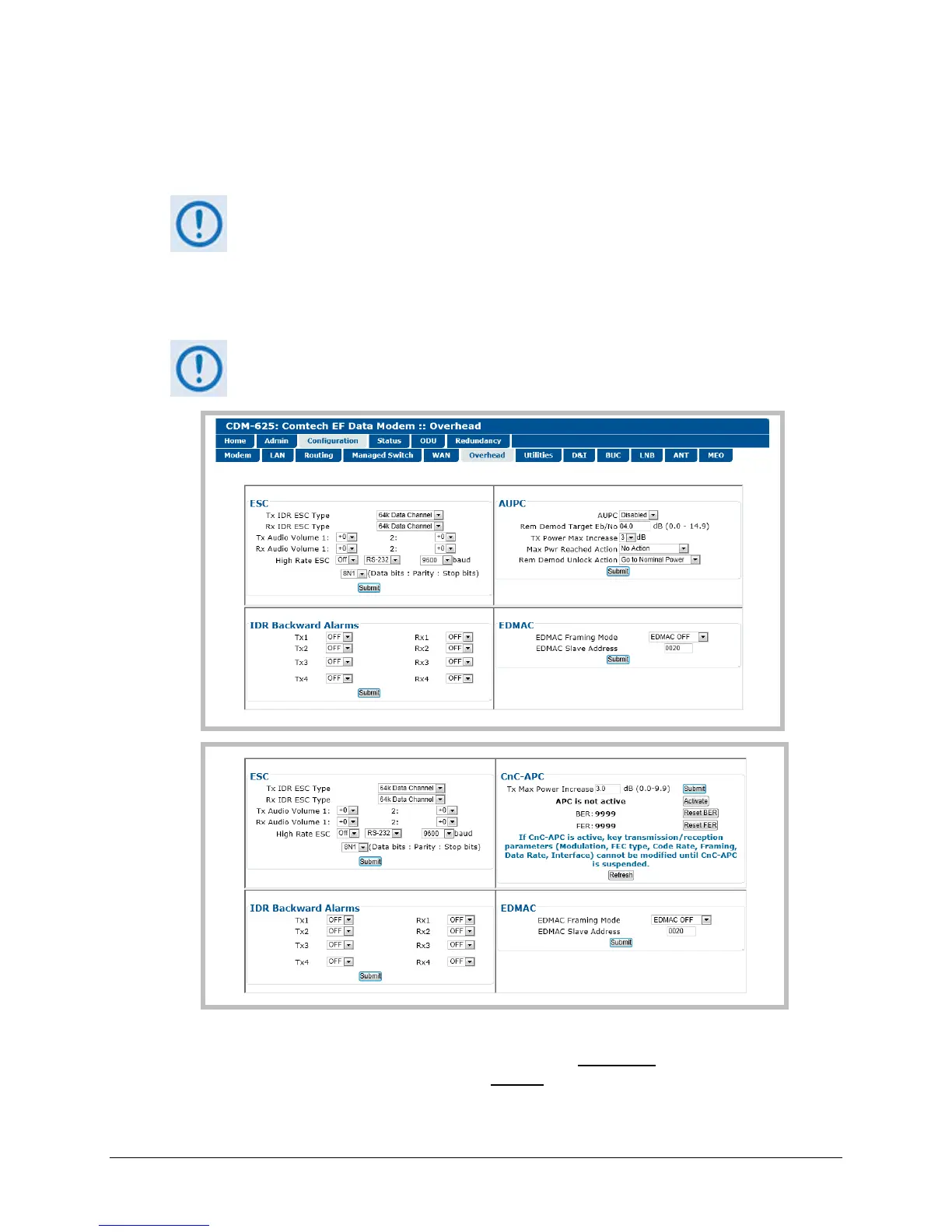

Figure 6-25. Configuration | Overhead page
(Top) Page when CnC-APC mode is not selected
(Bottom) Page with CnC-APC mode selected (Banner, Menu Bar not shown)
