CDM-625 Advanced Satellite Modem Revision 13

Appendix E MN-CDM625

E–85

E.3.10.6.1 Home > Statistics > Compression > Table View

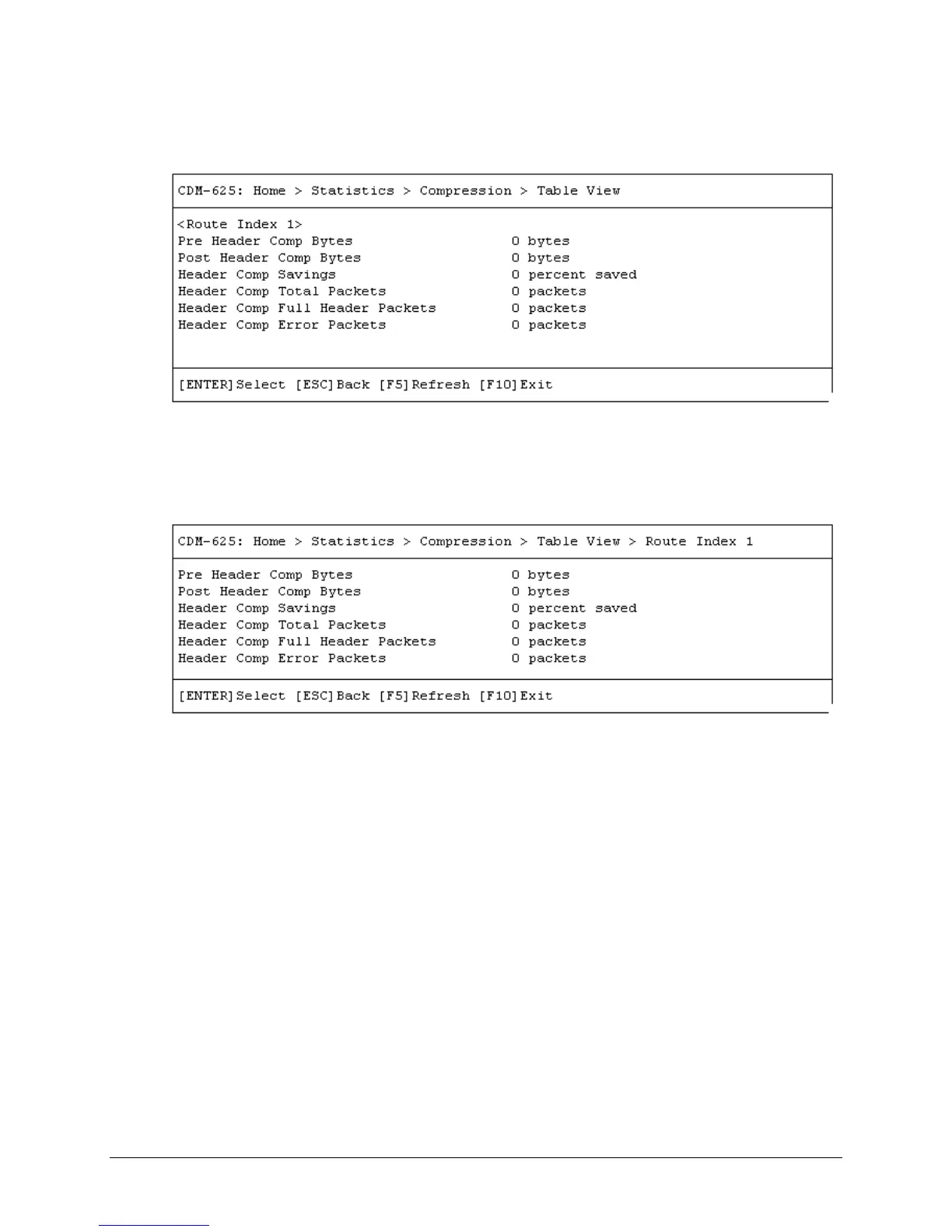

Open the scrollable Compression statistics table from the nested Compression submenu.

Use the ↑↓ arrow keys to scroll through the available entries. You may also select a header

(e.g., <Route Index 1>) and press [ENTER] to view, in a standalone window, a specific set of

statistics as shown in th

is example:

Press [ESC] to return to the Compression page.
