CDM-625 Advanced Satellite Modem Revision 13

Appendix F MN-CDM625

F–43

F.4.2.4.1 ODU | Enable

Use this page to enable or disable communications with CSAT-5060 or KST-2000A/B ODUs for

70/140 MHz operation, or LPOD BUCs for L-Band operation (see Sect. F.4.2.1 Configuration |

BUC (Block Up Converter)).

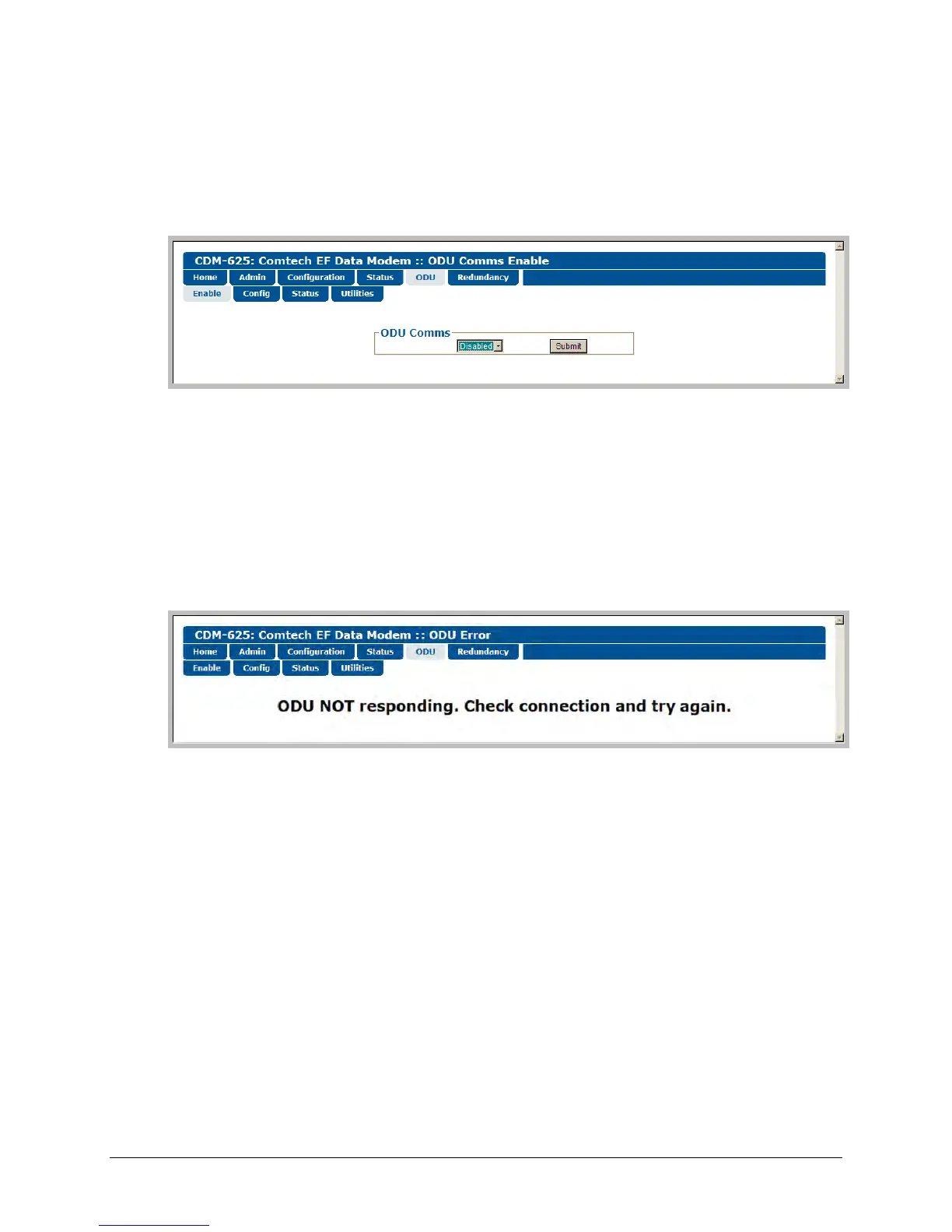

Figure F-8. ODU | Enable page

ODU Comms

Use the drop-down list to select ODU operation as Disabled or Enabled, and then click [Submit].

If you encounter a communications issue – e.g., an ODU is either physically not present or the

ODU Comms cable is not connected to the CDM-625 – the following error page displays after

clicking [Submit]:

Take steps to troubleshoot the ODU setup before attempting to enable ODU operations from

this page. See the pertinent ODU Installation and Operation Manual for further information.
