6.5.4.3.7 Configuration | Utilities

Use this page to configure a number of the CDM-625’s utility functions.

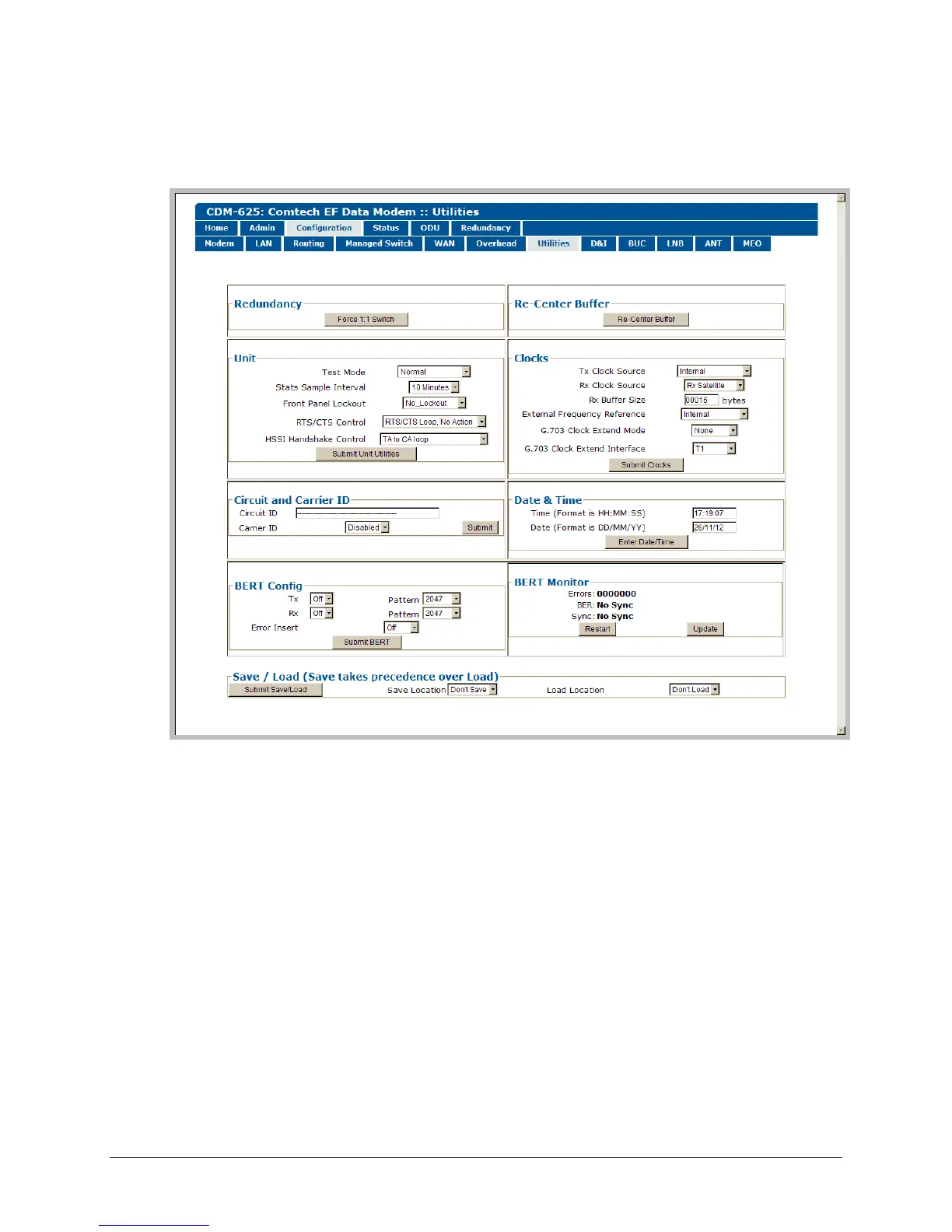

Figure 6-26. Configuration | Utilities page

Redundancy

If the unit is part of a 1:1 redundant pair of modems, and this unit is currently online, click

[Force 1:1 Switch] to cause the unit to switch to standby.

Re-Center Buffer

Click [Re-Center Buffer] to force the re-centering of the Plesiochronous/Doppler buffer.

Unit

Use the drop-down lists provided in this section to configure Test Mode, Stats Sample Interval,

Front Panel Lockout, RTS/CTS Control, and HSSI Handshake Control.

Click [Submit Unit Utilities] to save these settings.
