CDM-625 Advanced Satellite Modem Revision 13

Appendix F MN-CDM625

F–53

F.4.2.4.4.2 ODU | Utilities (KST-2000A/B)

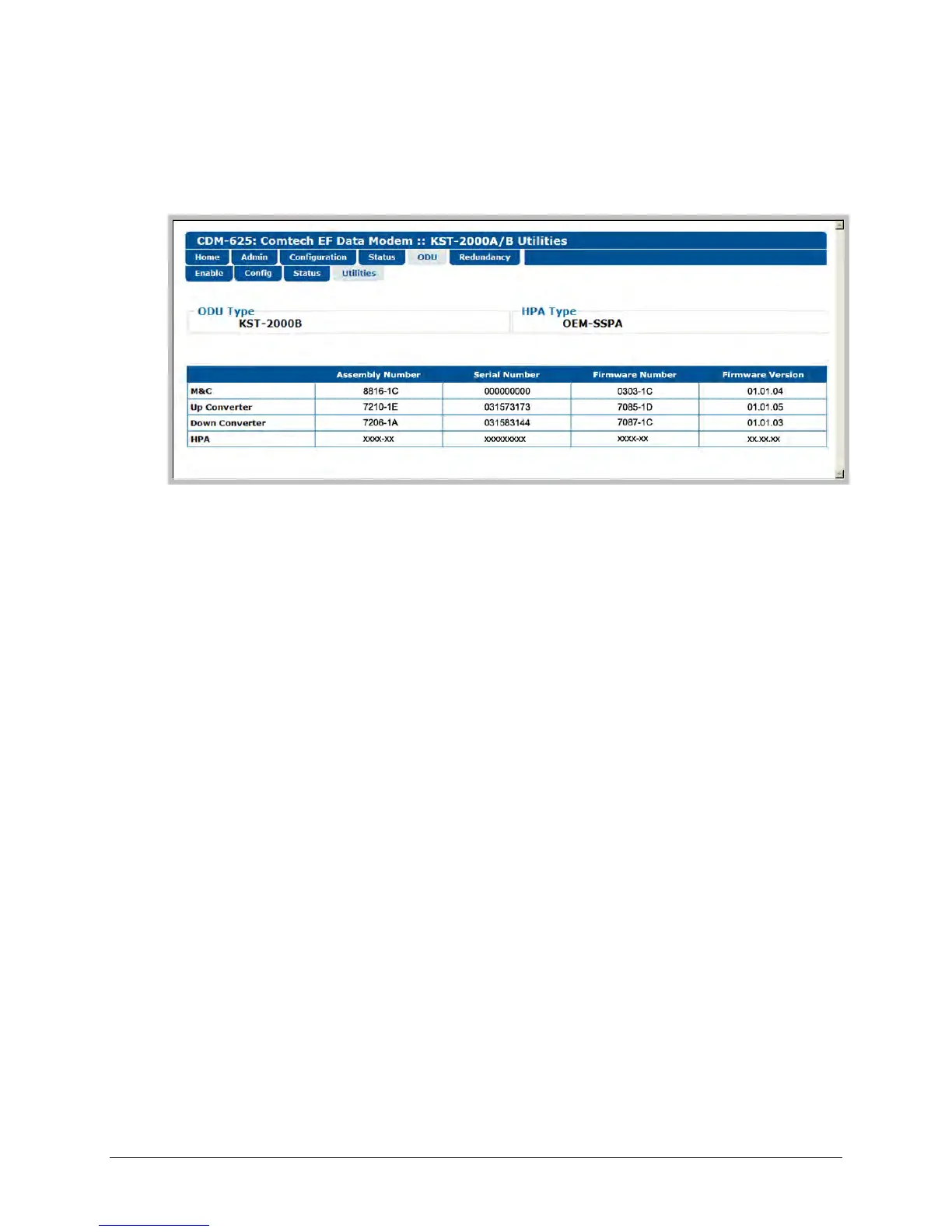

Figure F-14 shows the read-only ‘ODU | Utilities’ page as it appears when you configure the

Comtech EF Data KST-2000A/B as the ODU.

Figure F-14. ODU | Utilities page (KST-2000A/B)

ODU Type / HPA Type

This section identifies the installed equipment types.

The remainder of this page identifies the configured ODU chassis’ installed component assembly

numbers and serial numbers, and firmware numbers and versions.
