CDM-625 Advanced Satellite Modem Revision 13

Ethernet-based Remote Product Management MN-CDM625

6–25

6.5.4.3.2 Configuration | LAN Pages

Click the IP tab, or – when the optional IP Packet Processor card is installed and enabled – the

ARP tab to continue.

6.5.4.3.2.1 Configuration | LAN | IP

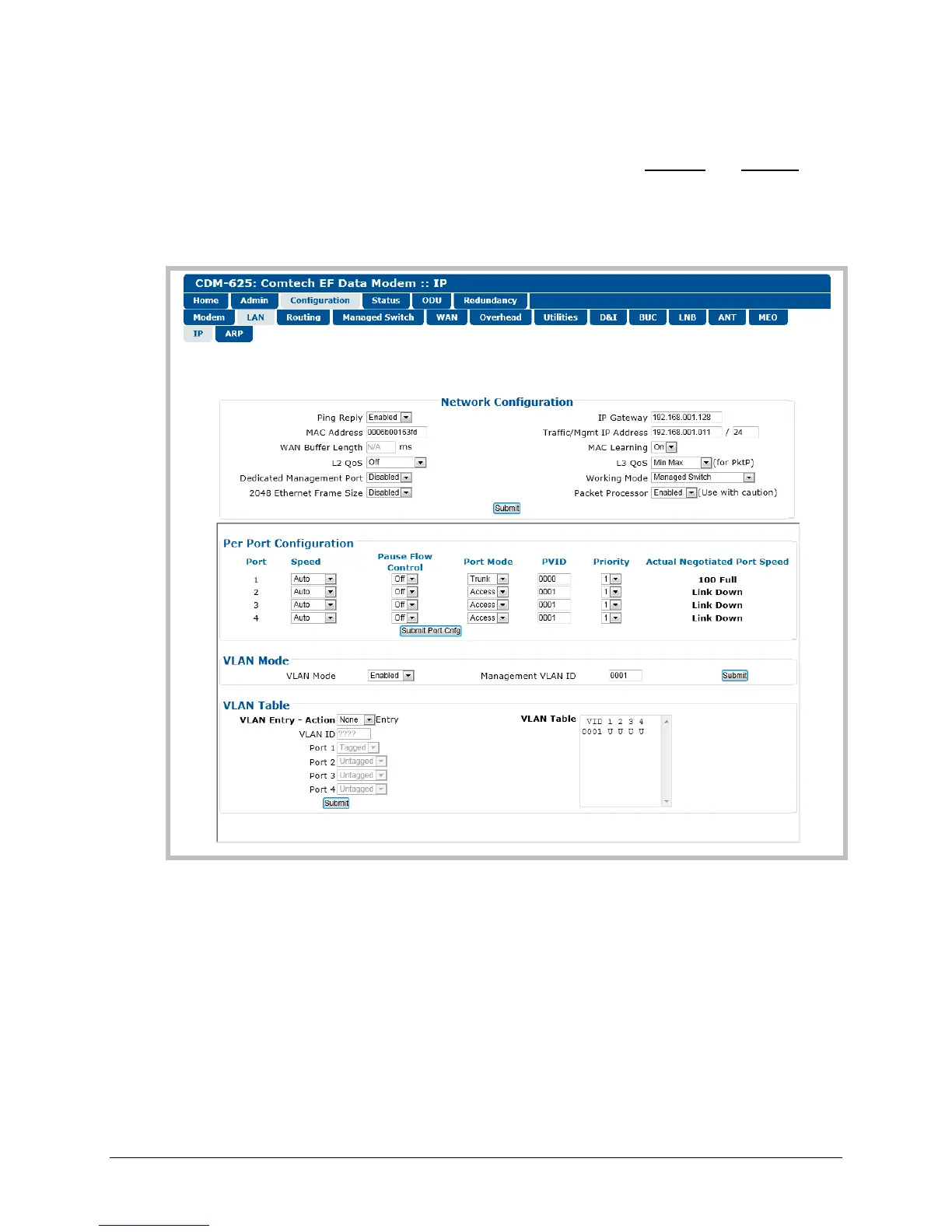

Figure 6-14. Configuration | LAN | IP page

Network Configuration

• Ping Reply – Use the drop-down list to select Ping Reply as Disabled or Enabled. When

Enabled, the modem responds to ICMP ping requests.

• MAC Address – This parameter is read-only and cannot be changed.

• WAN Buffer Length – Enter a value between 20ms and 400ms, in 20ms increments.
