CDM-625 Advanced Satellite Modem Revision 13
Appendix F MN-CDM625
F–44
F.4.2.4.2 ODU | Config Pages
When you configure either the Comtech EF Data CSAT-5060 or KST-2000A/B as the ODU, you
may use this page to configure operating settings specific to the active unit. Otherwise, when
you attempt to access this page without first enabling ODU communications per the previous
section, the following error page displays:
F.4.2.4.2.1 ODU | Config (CSAT-5060)

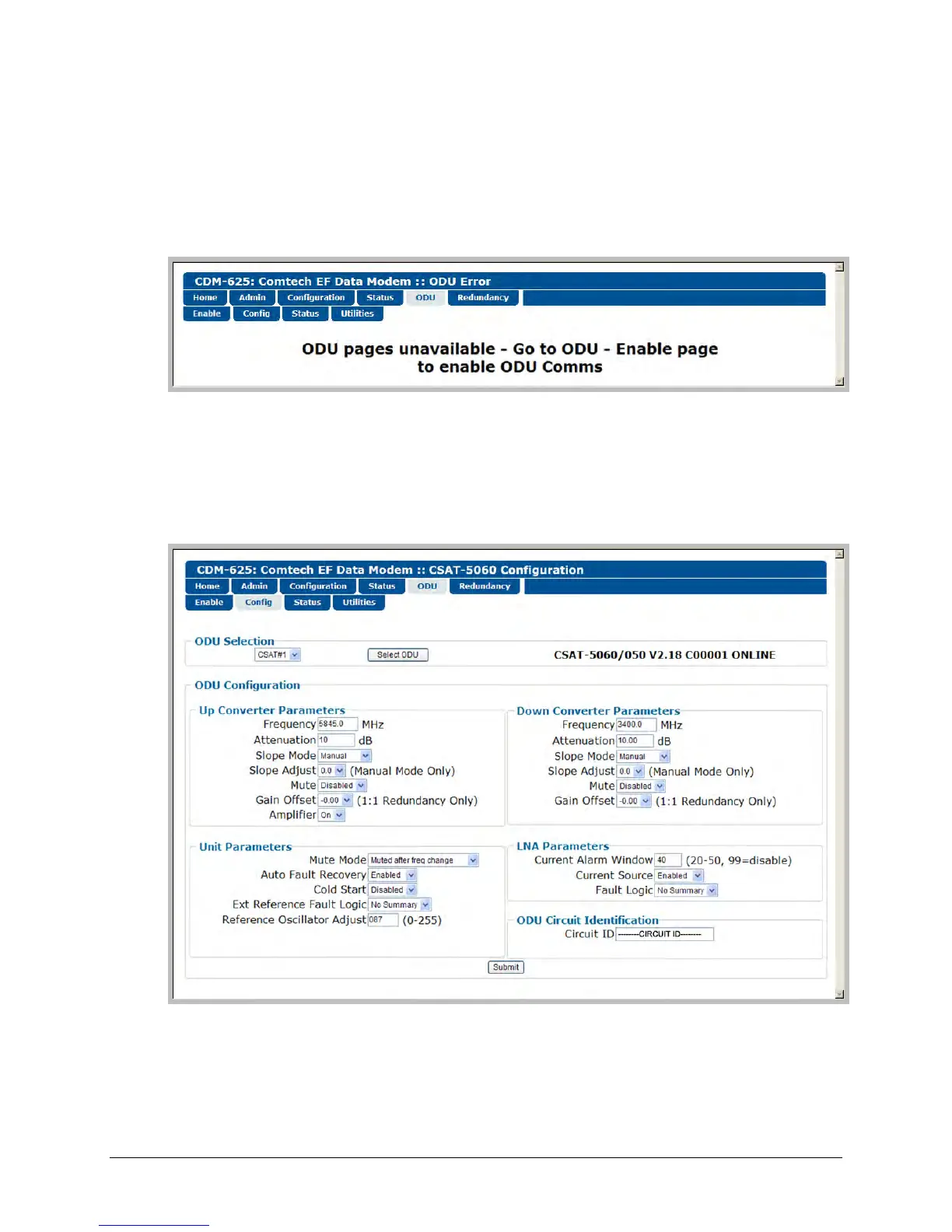

Figure F-9 shows the ‘ODU | Config’ page as it appears with you configure the Comtech EF Data
CSAT-5060 as the ODU. Use this page to configure the primary ODU’s Transmit and Receive
Parameters.
Figure F-9. ODU | Config page (CSAT-5060)
