CDM-625 Advanced Satellite Modem Revision 13
Ethernet Network Configuration MN-CDM625
16–8
16.3.2 Point-to-Multipoint Hub-to-R emotes, S plit-path Traffic Us ing
S witc hes
With switches used, the hub and remote are on the same subnet as shown in Figure 16-9,
meaning that broadcasts will be allowed to transverse the network. Learning Mode must be
disabled on the Hub Tx/Rx modem, because if a computer on the remote sends a broadcast out
to the Hub, the modem learns that MAC is local – when in fact it is not.

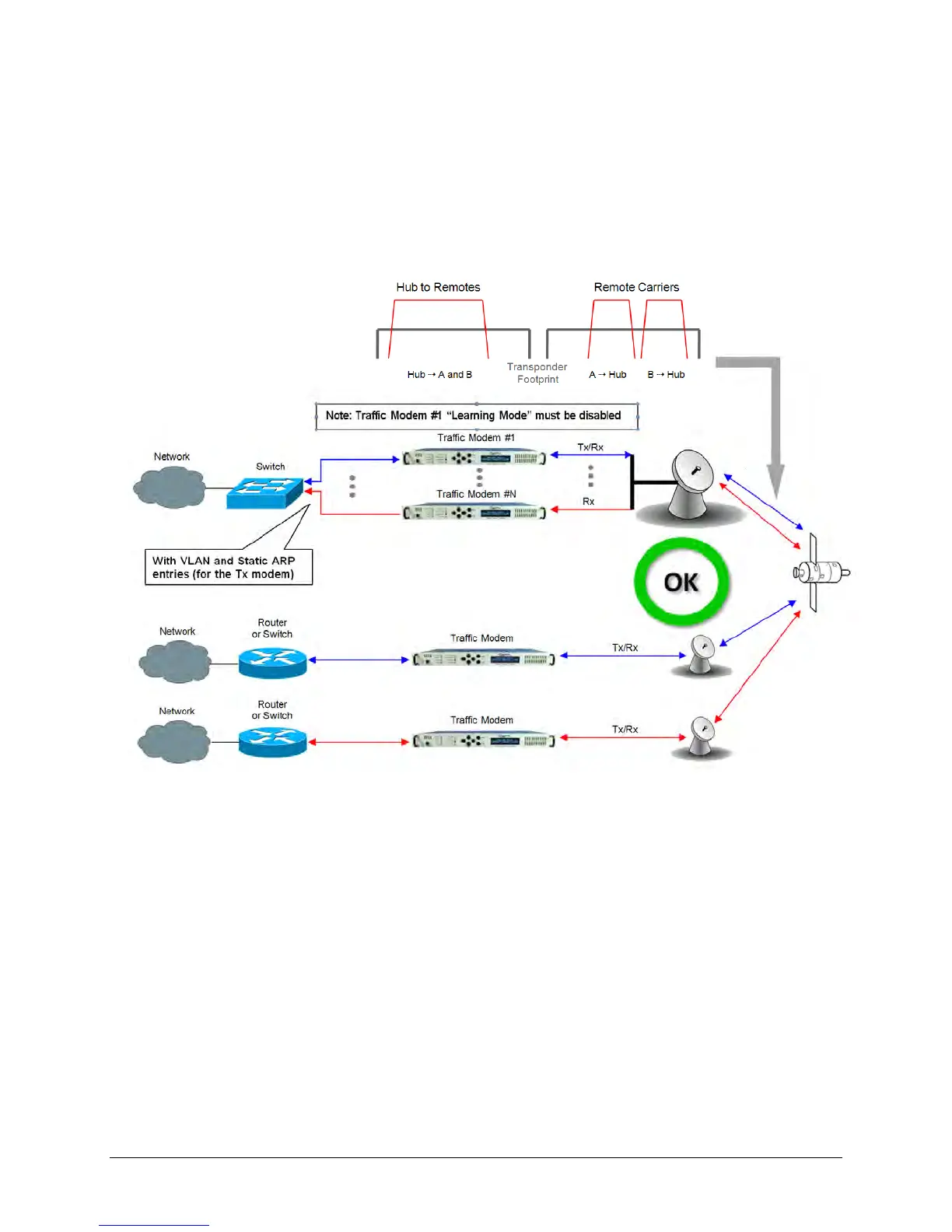

Figure 16-9. Point-to-Multipoint using Switches
