E.3.5.1.2 Home > WAN > QoS > QoS Differentiated Services Table

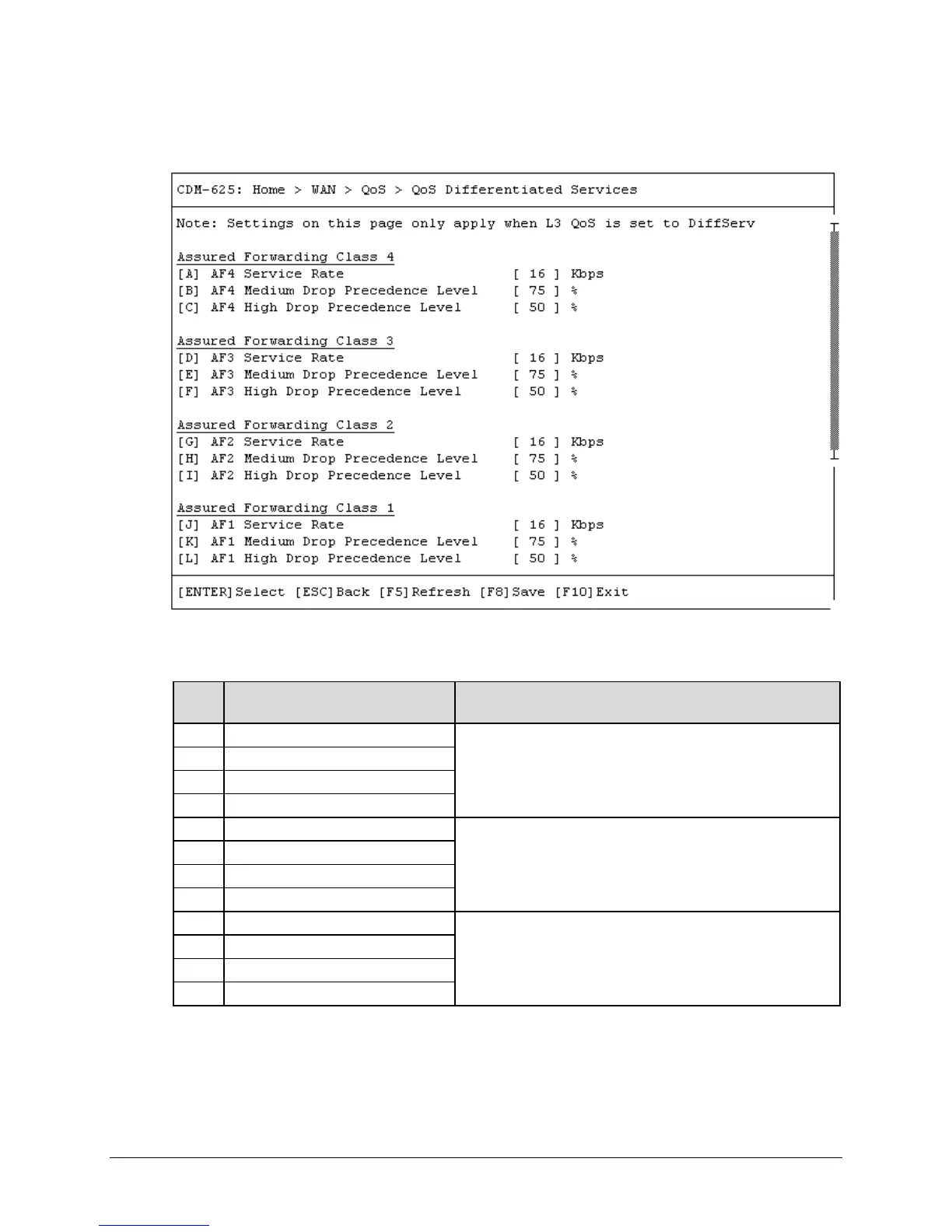

Open the nested QoS Differentiated Services page from the QoS submenu. This page contains
the following options:
Hot
Key
Dialog Window Option Entry
A
AF4 Service Rate
Typical for each entry – Enter a value from 0 to 100000000 Kbps
D
AF3 Service Rate
G
AF2 Service Rate
J
AF1 Service Rate
B
AF4 Medium Drop Precedence Level
Typical for each entry – Enter a value from 20 to 90%
E
AF3 Medium Drop Precedence Level
H
AF2 Medium Drop Precedence Level
K
AF1 Medium Drop Precedence Level
C
AF4 High Drop Precedence Level
Typical for each entry – Enter a value from 10 to 80%
F
AF3 High Drop Precedence Level
I
AF2 High Drop Precedence Level
L
AF1 High Drop Precedence Level
Press a hot key to open a dialog window. Otherwise, press [ESC] to return to the QoS submenu.
