E.3.4.4.1 Home > Network > VLAN > VLAN Table > VLAN #

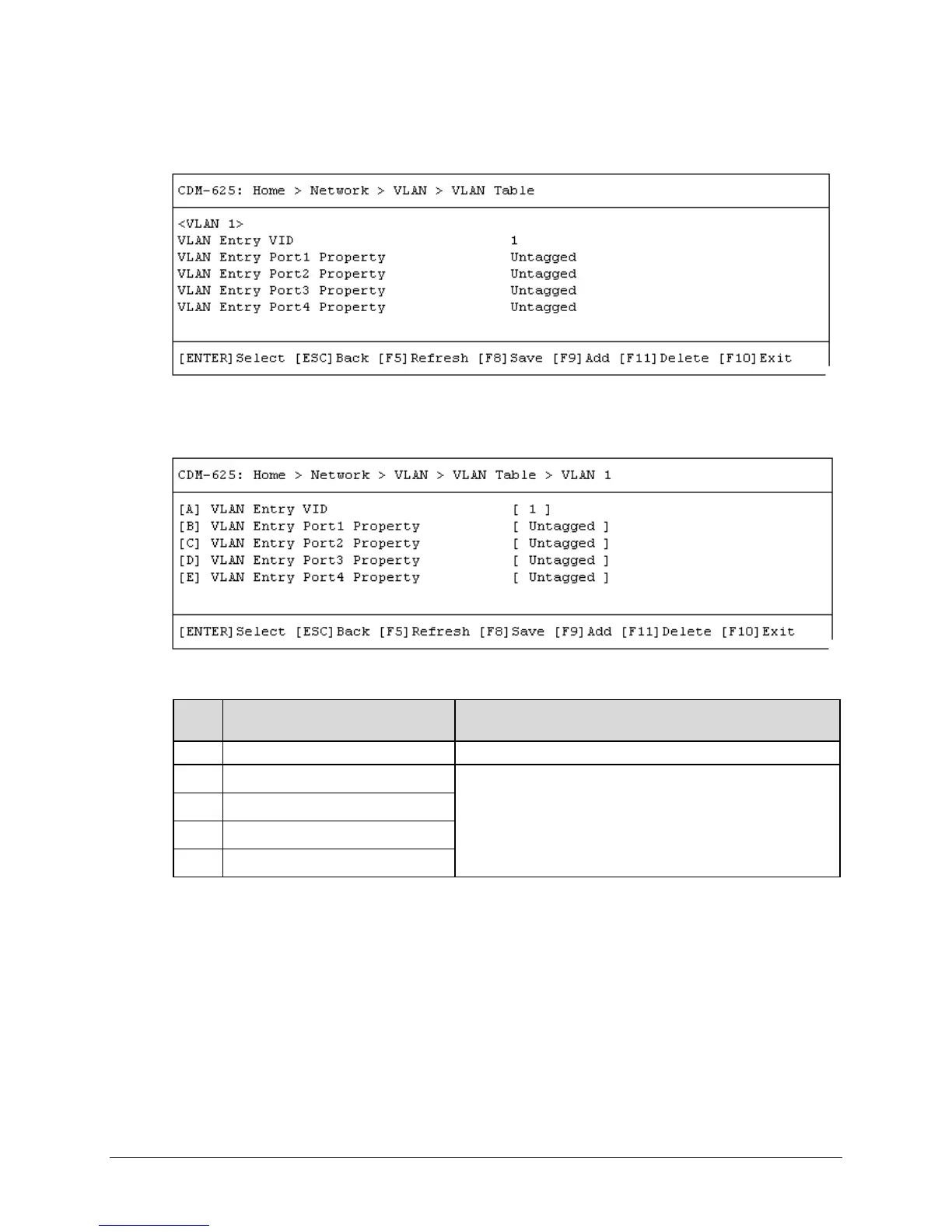

Open the VLAN Table from the nested VLAN submenu. Use the ↑↓ arrow keys to scroll through
the available entries. You may also select a header (e.g., <VLAN 1>) and press [ENTER] to view,
in a standalone window, a specific VLAN page as shown in th
is example:
Each available VLAN # page contains the following options:
Hot
Key
Dialog Window Option Entry
A
VLAN Entry VID
Enter a value from 1 to 4095
B
VLAN Entry Port1 Property
Typical for each entry – Use the ↑↓ arrow keys to select Tagged,
Filtered, or Untagged
C
VLAN Entry Port2 Property
D
VLAN Entry Port3 Property
E VLAN Entry Port4 Property
Typical for any accessed VLAN table, press a hot key to open a dialog window. Otherwise, press
[ESC] twice to return to the Network submenu.
