CDM-625 Advanced Satellite Modem Revision 13
Ethernet Network Configuration MN-CDM625
16–4
16.2.3.1.2 Hub-to-Hub using Ethernet Routers

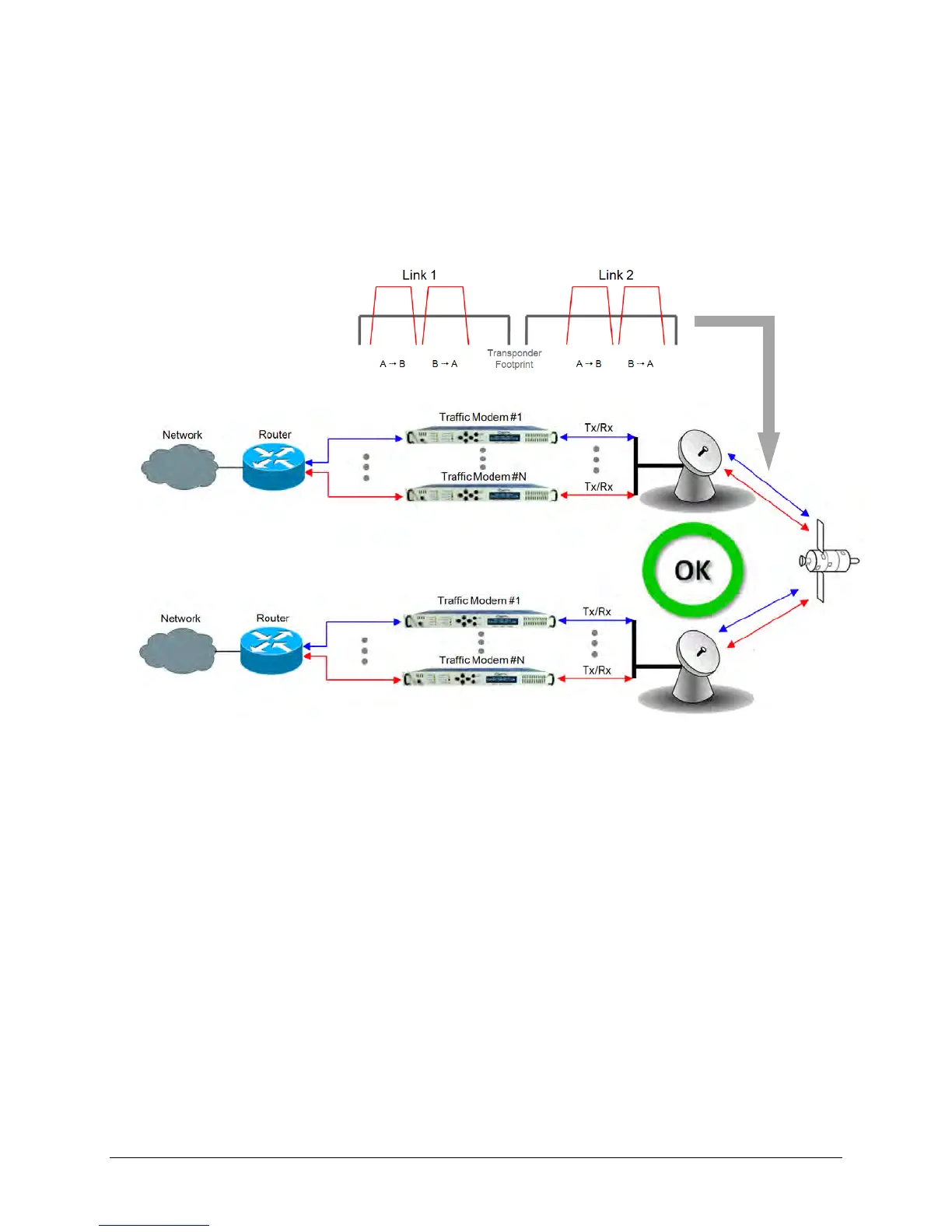

Figure 16-5 shows two hub-sites connected with standard Ethernet traffic, using routers instead
of switches for the Ethernet connection. The routers will block the broadcasts coming from the
remote network; therefore, the creation of a broadcast storm is prevented and there is no
possibility of having a remote MAC on the Hub networks.
Figure 16-5. Hub-to-Hub with Standard Traffic using Routers
