10.4.5.1 Symmetric Data Rate Link
Consider the following example:
Satellite & Transponder
Galaxy 18 @ 123º W, 13K/13K
Earth Station 1
Phoenix, AZ – 4.6 m
Earth Station 2
Phoenix, AZ – 2.4 m
Data Rate
512 kbps / 512 kbps

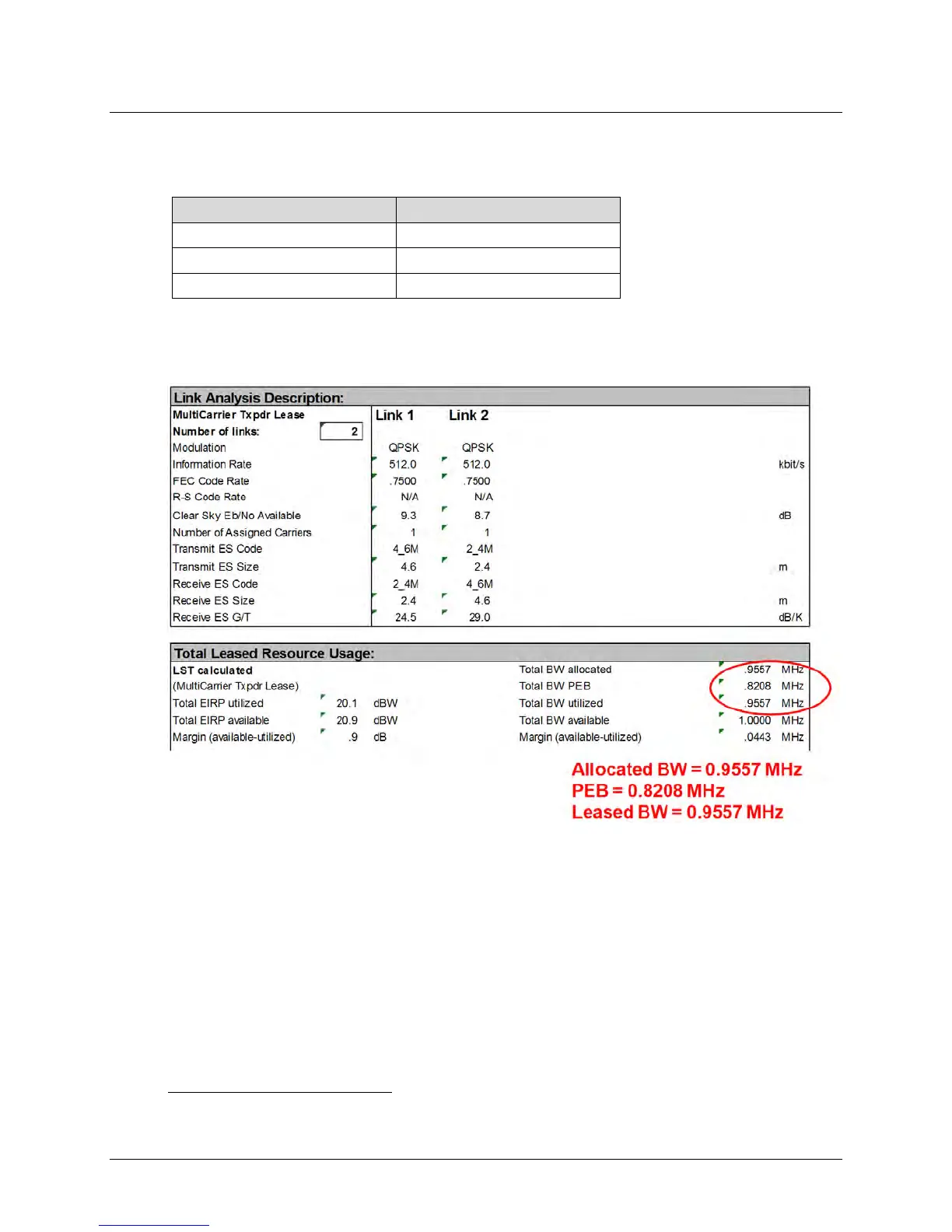

The traditional link was based on QPSK TPC 3/4 and required 0.96 MHz of leased BW. The LST
2
summary for the traditional link is as follows:
Carrier-in-Carrier link design involved trying different Modulation & FEC Code Rates to find the
optimal combination:
• 8-QAM, LDPC 2/3 with Carrier-in-Carrier
• QPSK, LDPC 3/4 with Carrier-in-Carrier
• QPSK, LDPC 2/3 with Carrier-in-Carrier
• QPSK, LDPC 1/2 with Carrier-in-Carrier
2
LST is Intelsat’s Lease Transmission Plan Program.
