6.5.4.3.5.1.2 Configuration | WAN | QoS Pages – DiffServ Mode

QoS can be set to DiffServ Mode to make it fully compliant to the Differentiated Services QoS

RFC (Request For Comments) standards.

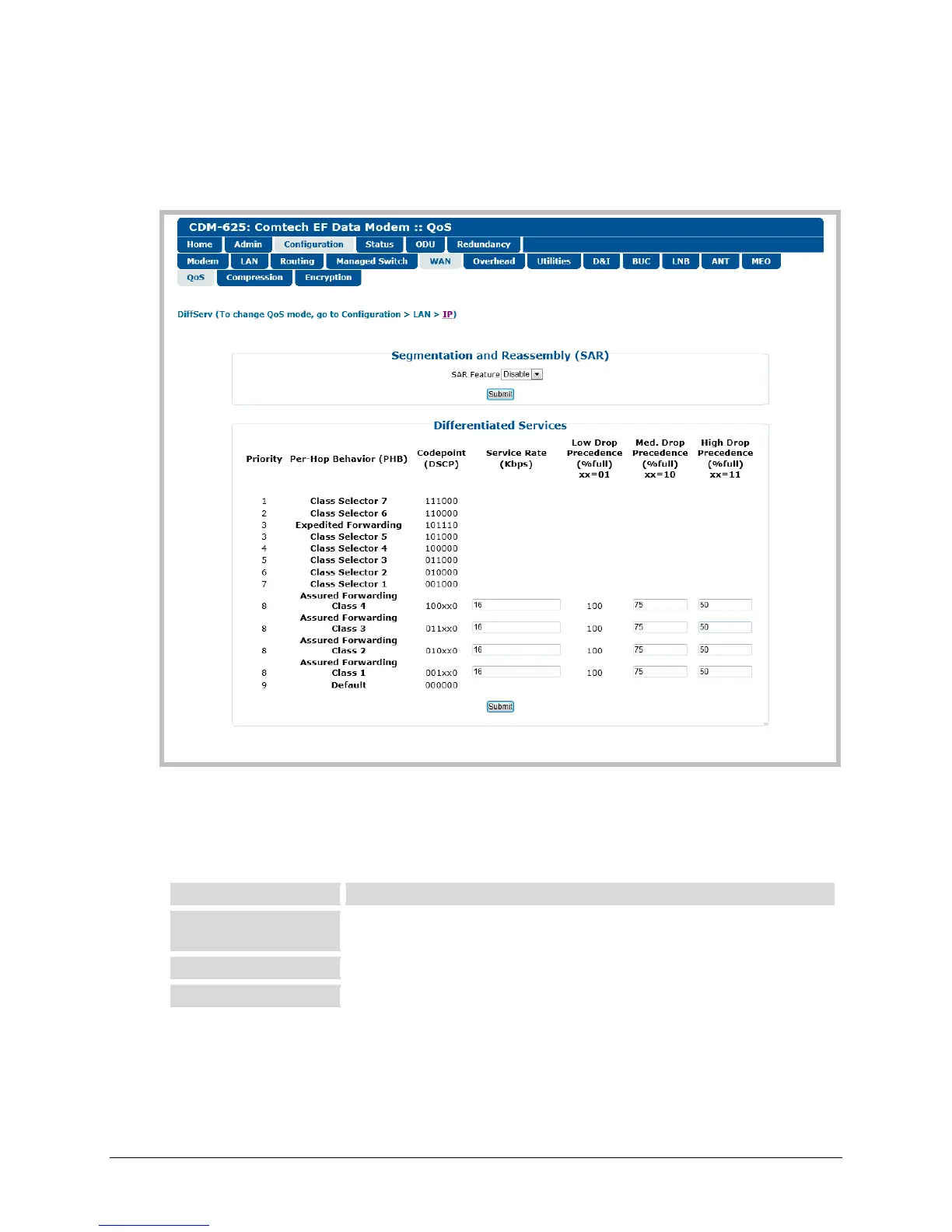

Figure 6-22. Configuration | WAN | QoS page (DiffServ Mode)

Differentiated Services

From left to right, note the following:

Column

Description

Priority

IP traffic is prioritized based upon the DSCP (DiffServ Code Points) Class Selector

Precedence.

Per-Hop Behavior (PHB)

Traffic class that determines how packets will be forwarded.

Codepoint (DSCP)

Codepoint value in Type of Service (ToS) byte in IP header.

The user has the option of configuring each queue to one of the following attributes (the

acceptable ranges are shown in brackets):
