Comtech EF Data CDM-625 - Figure 6-37. Status | Traffic Statistics | Ethernet Page; Status | Traffic Statistics Pages; Status | Traffic Statistics

To Next Page

To Previous Page

CDM-625 Advanced Satellite Modem Revision 13

Ethernet-based Remote Product Management MN-CDM625

6–65

6.5.4.4.4 Status | Traffic Statistics Pages

Click the Ethernet, WAN, or Clear Counters tab – and, when the optional IP Packet Processor

card is installed

and enabled – the Router, Managed Switch, WAN, Compression, QoS, PTP,

MAC Table, or Clear Counters tab to continue.

6.5.4.4.4.1 Status | Traffic Statistics | Ethernet

Use this page to view Ethernet Ingress/Egress Statistics on a ‘Per Port’ basis.

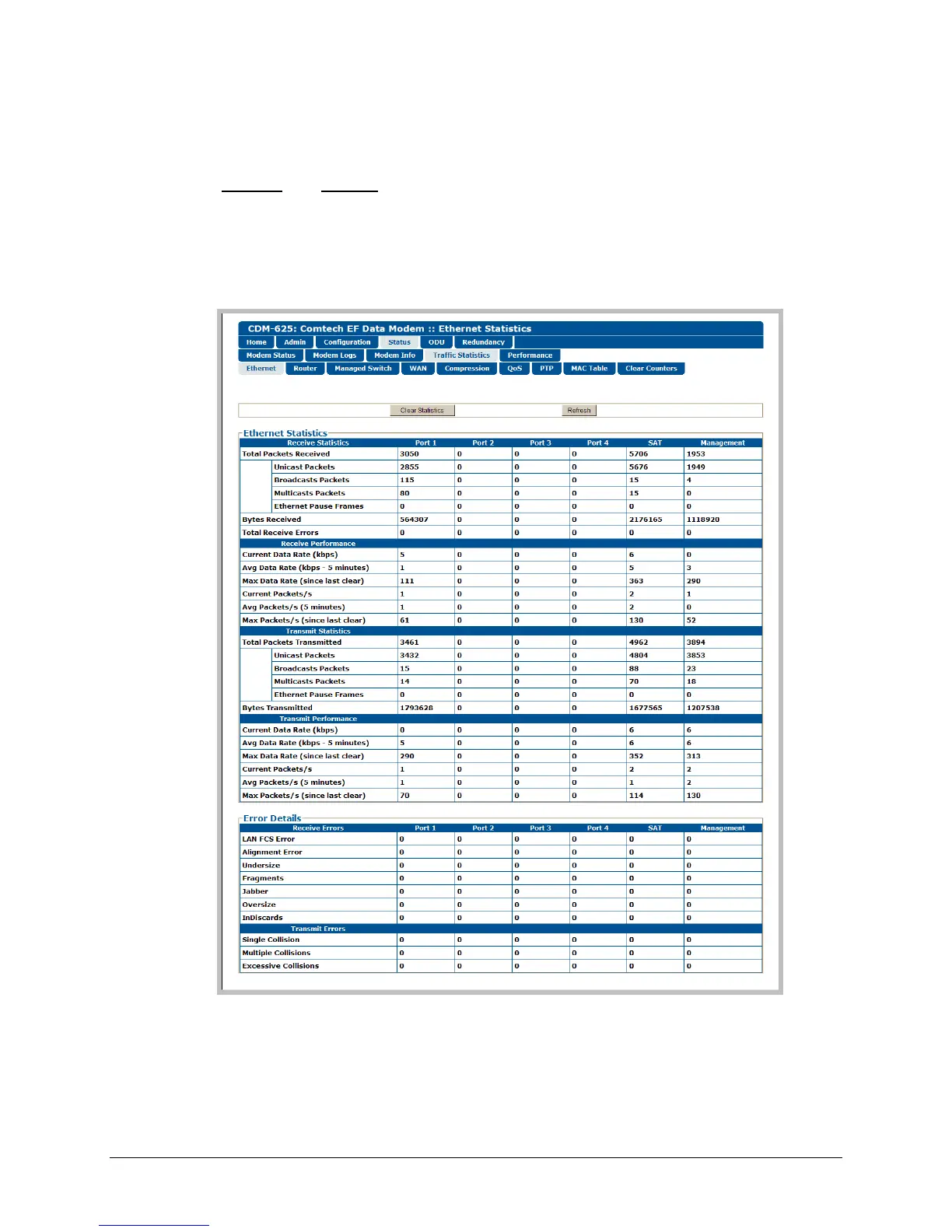

Figure 6-37. Status | Traffic Statistics | Ethernet page

Click [Clear Statistics] to clear all Ethernet statistics from the buffer.

Click [Refresh] to update the page with the latest available statistics.
