3.3.2 Standard 100V/240V Alternating Current (AC) Power Interface
Feature
Description
1
On / Off Switch
2
Press-fit Fuse Holder
3
IEC-60320 Type C14 Three-prong Connector
AC Power Specifications
Input Power
48 watts (typical with TPC/LDPC Codec and
CnC module installed), 68 watts (max)
280 watts (typical TPC/LDPC Codec, CnC
module and 48 volt BUC supply installed),
300 watts (max)
Input Voltage
100V to 240V AC, +6%/-10%, autosensing
(total absolute max. range is 90V to 264V
AC)
Connection Type
IEC-60320 Type C13/C14
Fuse Protection
Line and neutral fusing
(2X) 5mm x 20mm Slow-blow type fuses:
T4A ( 250V AC operation)

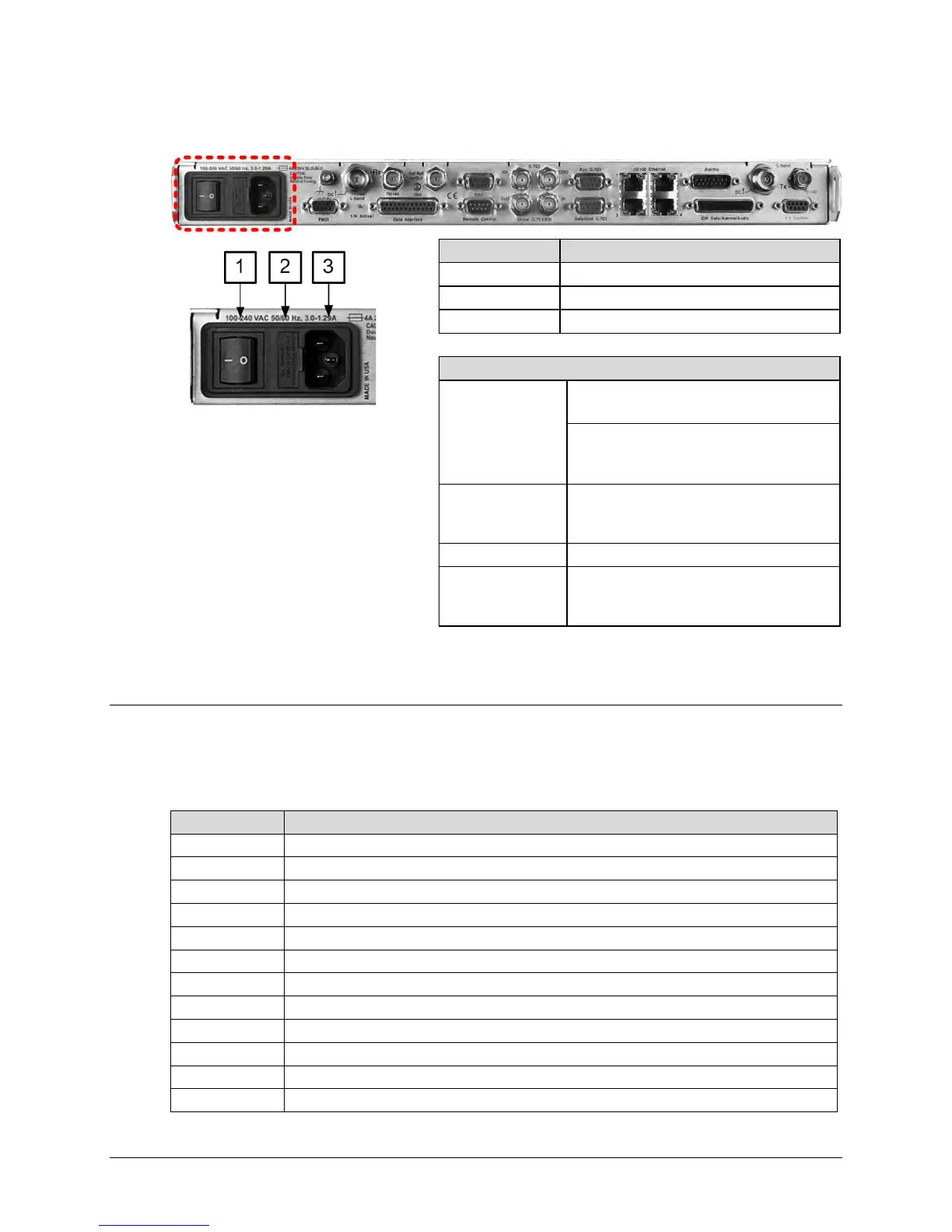

Figure 3-7. CDM-625 Standard AC Chassis (CEFD P/N PL/12587-1)
3.3.2.1 AC Operation – CDM-625 Accessories
Contact your Comtech EF Data sales representative during normal business hours to purchase
any of these available accessories:
CEFD P/N
Description
KT-0020703 AC to 24V DC Conversion Kit
KT-0000226
AC to 48V DC Conversion Kit
KT-0000283
AC Primary Power Supply: 100-240 VAC (65W Power Supply) w/required cables
KT-0020701
AC Primary Power Supply: 100-240 VAC (175W Power Supply) w/required cables
PS-0000075 AC 65W Power Supply
PS-0000065 AC 175W Power Supply
CA/17725 AC Power Cord, Standard (IEC-60320 Type C13) – USA
CA/90025-5FT AC Power Jumper Cord, Standard (IEC-60320 Type C13)
KT/11633-1 AC Power Cord Retainer Kit (for any AC Cord)
CA/17850 AC Power Cord – European / French
PP-0000097 AC Power Cord – Japanese
PP-0020556
AC Power Cord – India
