Comtech EF Data CDM-625 - Figure 6-33. Status | Modem Status Page; Status Pages; Status

To Next Page

To Previous Page

CDM-625 Advanced Satellite Modem Revision 13

Ethernet-based Remote Product Management MN-CDM625

6–60

Click [Submit] to save these settings.

6.5.4.4 Status Pages

The Status pages provide you with status, event logging, and operational statistics windows.

Click the Modem Status, Modem Logs, Modem Info, Traffic Statistics, or – when the optional IP

Packet Processor card is installed

and enabled – the Performance tab to continue.

6.5.4.4.1 Status | Modem Status

Use this page to view read-only status window pertaining to:

• Alarms • Rx Parameters • AUPC

• CnC (Carrier-in-Carrier) • ACM • General Status

• Fractional CnC Counters

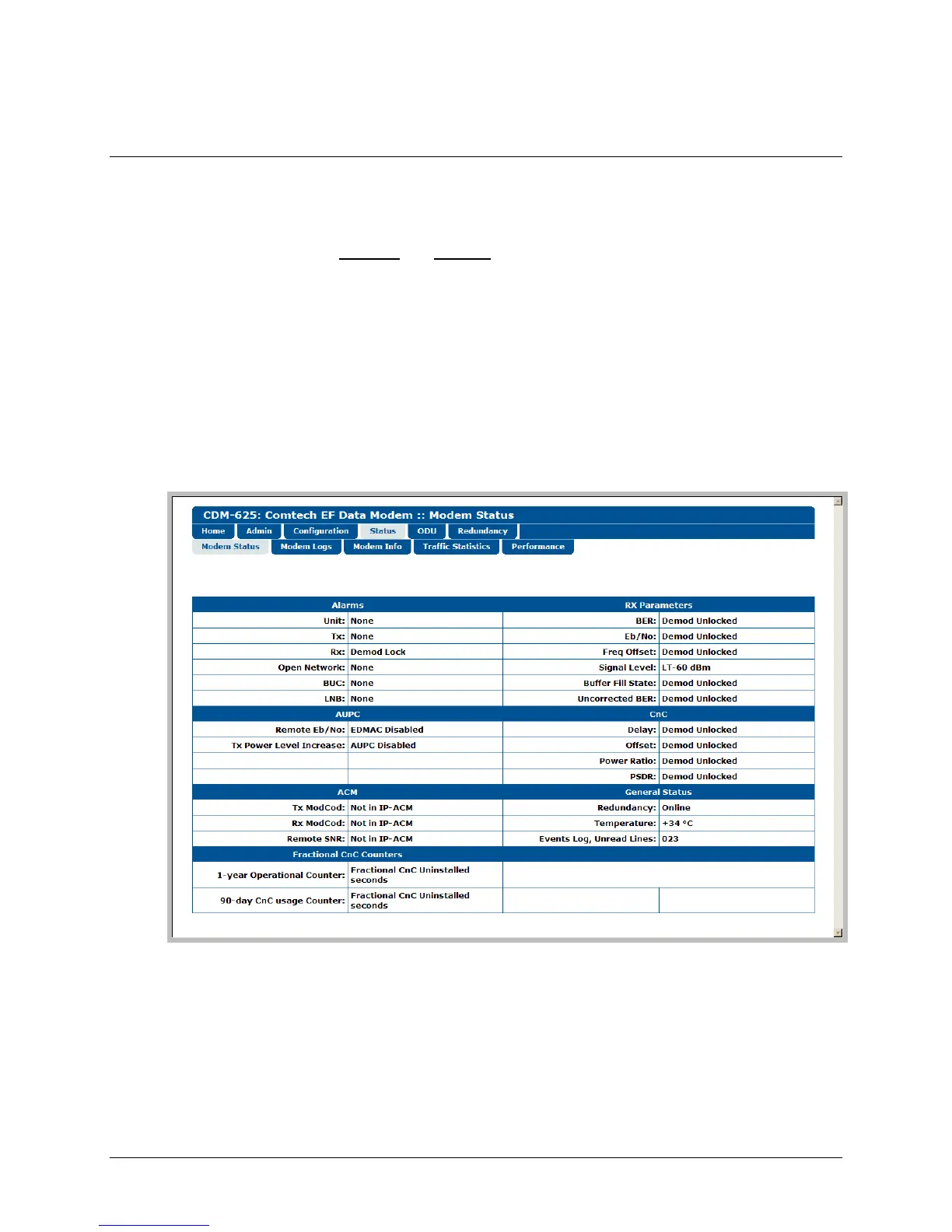

Figure 6-33. Status | Modem Status page
