10.5.2 Estimating PSD Ratio

PSD can be estimated from a link budget using Downlink EIRP and Symbol Rate:

PSD = Downlink EIRP – 10 * Log (Symbol Rate)

PSD Ratio Example:

Carrier

Downlink EIRP

Symbol Rate

Power Spectral Density

A to B

27 dBW

500 ksps

-29.99 dBW/Hz

B to A

24 dBW

375 ksps

-31.74 dBW/Hz

PSD Ratio (@ A) = -29.99 – (-31.74) = 1.75 dB

PSD Ratio (@ B) = -31.74 – (-29.99) = -1.75 dB

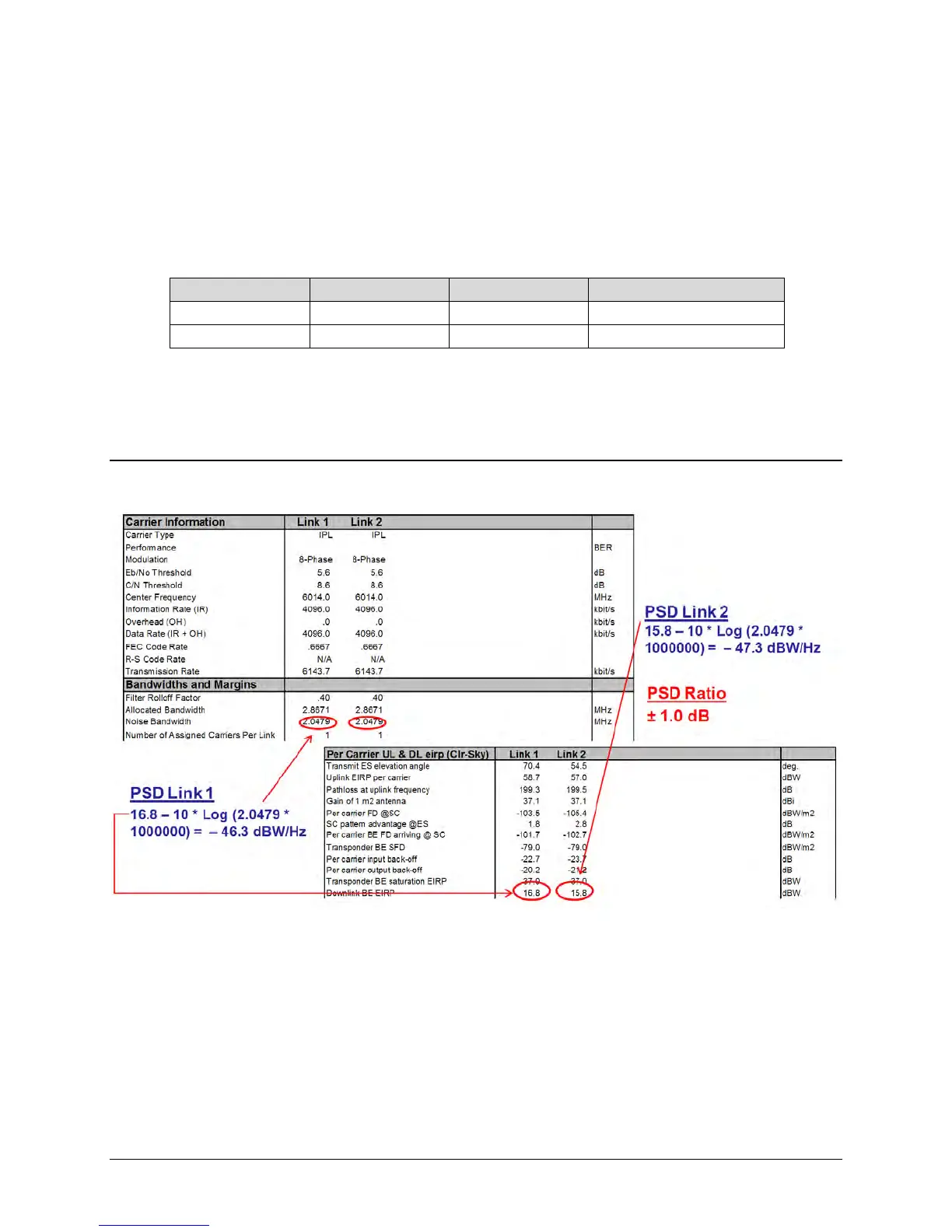

10.5.2.1 Estimating PSD Ratio from LST
