E.3.3.11 Home > Modem > Overhead

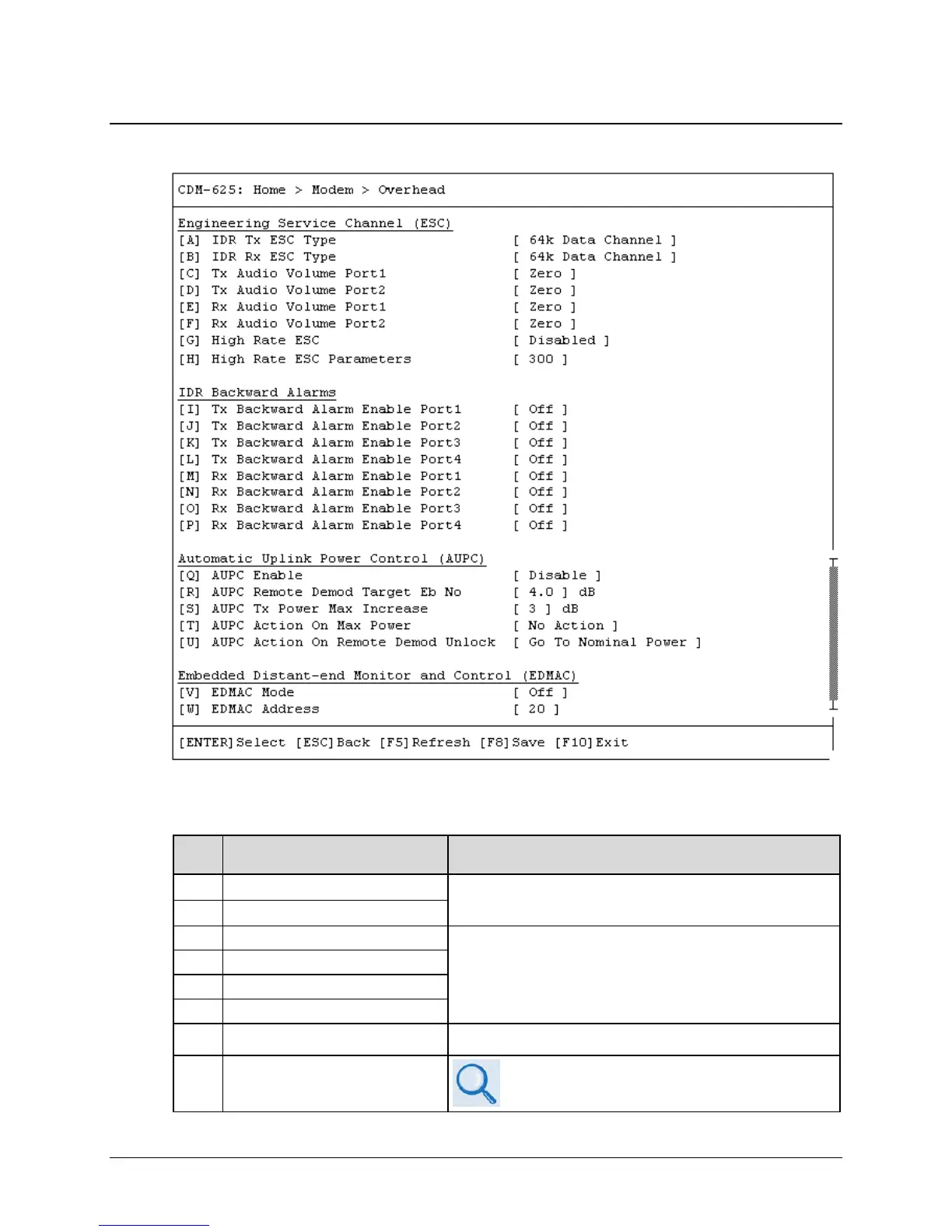

Open the scrollable Overhead page from the Modem submenu. This page contains the following
options:
Hot
Key
Dialog Window Option Entry
A
IDR Tx ESC Type
Typical for either entry – Use the ↑↓ arrow keys to select 64k Data
Channel or 2 Audio Channels
B IDR Rx ESC Type
C
Tx Audio Volume Port 1
Typical for each entry – Use the ↑↓ arrow keys to select:
D Tx Audio Volume Port 2
•
Negative6 • Negative4 • Negative2 • Zero
E
Rx Audio Volume Port 1
• Positive2 • Positive4 • Positive6 • Positive8
F
Rx Audio Volume Port 2
G High Rate ESC Use the ↑↓ arrow keys to select Disabled or Enabled
H High Rate ESC Parameters
See Sect. 5.2.1.10.6 CONFIG: Misc

HiRateESC in
Chapter 5. FRONT PANEL OPERATION for details
