CDM-625 Advanced Satellite Modem Revision 13

Appendix E MN-CDM625

E–90

E.3.11 Home > Contact Page

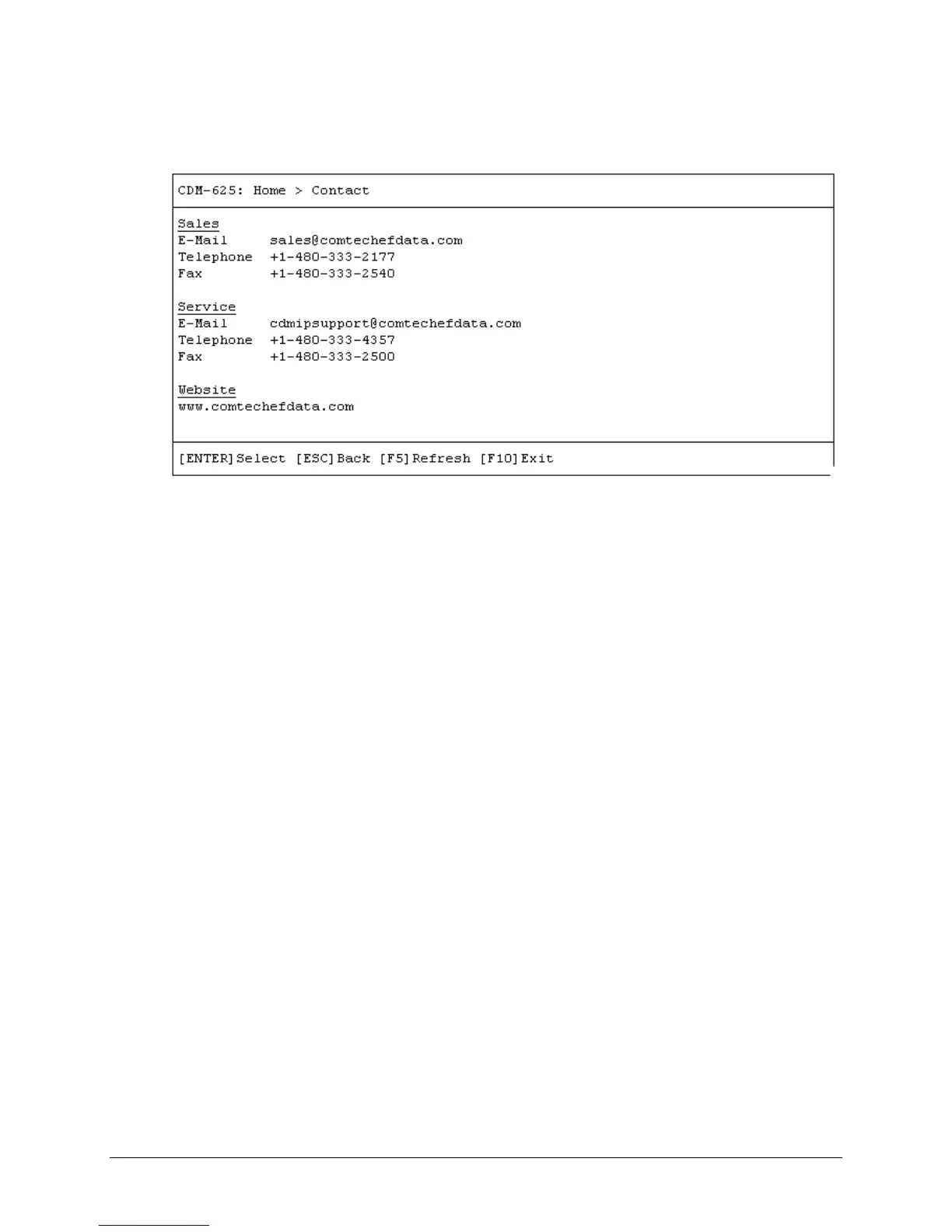

Open the read-only Contact information page from the Home menu. Use this page to retrieve

Comtech EF Data contact information. Otherwise, press [ESC] to return to the Home menu.
