6.5.4.6 Redundancy page
Take note of the following redundant switch information, as it pertains to IP
Packet Processor Redundancy:
• 1:1 Redundancy is supported using either a CRS-170A L-
Band 1:1
Redundancy Switch or a CRS-180 70/140 MHz 1:1 Redundancy Switch, and
a user-provided, off-the-shelf Ethernet switch.
• 1:N Redundancy is supported using a CRS-300 1:10 Redundancy Switch or a
CRS-500 M:N Redundancy System in 1:N mode based on the following
criteria:
Redundancy Device
Packet Processor
Terrestrial Interface
Mode
CRS-300 Disabled Any Any
CRS-500
Disabled
EIA-422/530, V.35,
Sync EIA-232
Any
Enabled Ethernet L3 or Bridge
• Packet Processor Redundancy
is supported in both 1:1 and 1:N redundant
configurations using the CRS-500 M:N Redundancy System.
Refer to
the pertinent switch Installation and Operation Manuals for detailed
information on using the CDM-625 in a redundancy configuration.

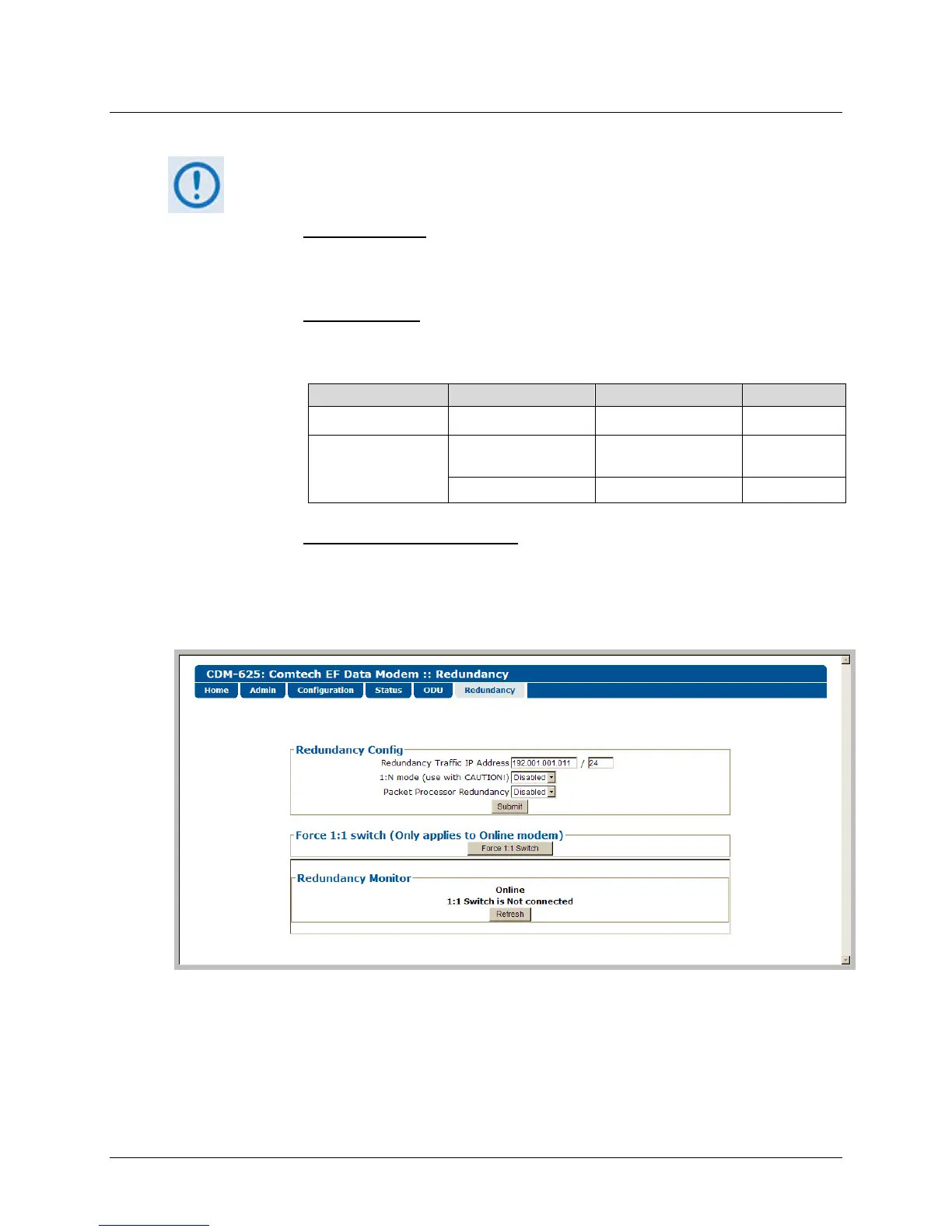

Figure 6-49. Redundancy page
Redundancy Config
• Redundancy Traffic IP Address – Enter the IP Address and subnet mask in the form
XXX.XXX.XXX.XXX/YY.
