CDM-625 Advanced Satellite Modem Revision 13

Ethernet-based Remote Product Management MN-CDM625

6–19

6.5.4.2.3 Admin | Firmware Pages

Chapter 4. UPDATING FIRMWARE

Click the Base Modem tab, or when the optional IP Packet Processor card is installed, the Packet

Processor tab to continue.

6.5.4.2.3.1 Admin | Firmware | Base Modem

Use this page to view the scrollable, read-only status windows that provide information about

the basic unit’s two loaded and operational firmware images.

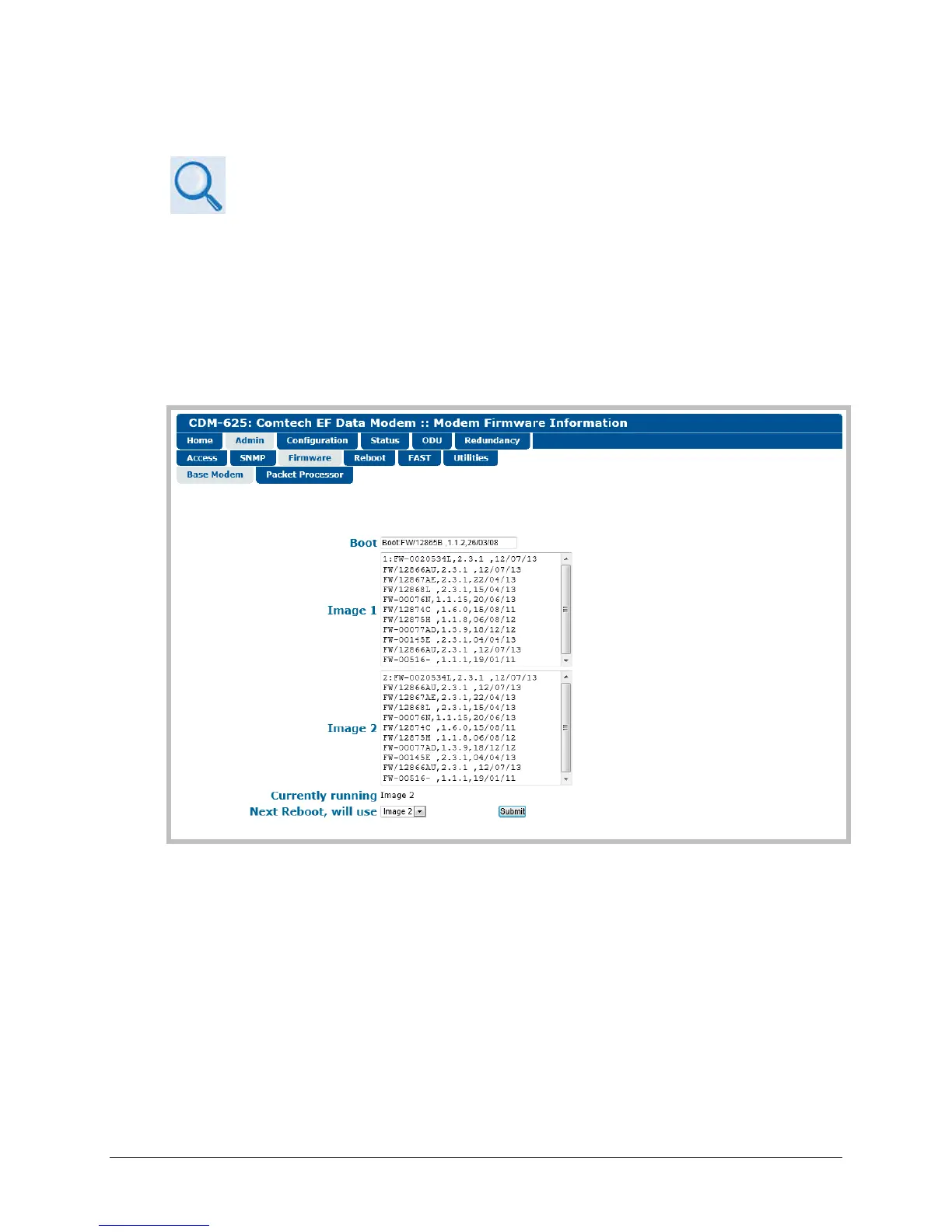

Figure 6-8. Admin | Firmware | Base Modem page

Boot

This window identifies the firmware number, version, and release date that is loaded upon

power-up/boot up of the unit.

Image 1 / Image 2

These scrollable windows identify the Firmware numbers, versions, and release dates that

comprise the aggregate image load.
