CDM-625 Advanced Satellite Modem Revision 13

Ethernet-based Remote Product Management MN-CDM625

6–77

6.5.4.5 ODU (Outdoor Unit) Pages (Summary Only)

After enabling ODU Comms and configuring the CDM-625 for 70/140 MHz

operation, you may use the ‘ODU (Outdoor Unit)’ pages to control and monitor

the CSAT-5060 or KST-2000A/B Outdoor Unit that is connected via FSK to the

CDM-625.

2. The Comtech EF Data LPOD Amplifier / Block Up Converter is not supported by

the CDM-625 Web Server (HTTP) Interface at this time.

See Appendix F. CDM-625 ODU (TRANSCEIVER, BUC, LNB) Operation for complete

details on using the Web Server Interface for ODU operations.

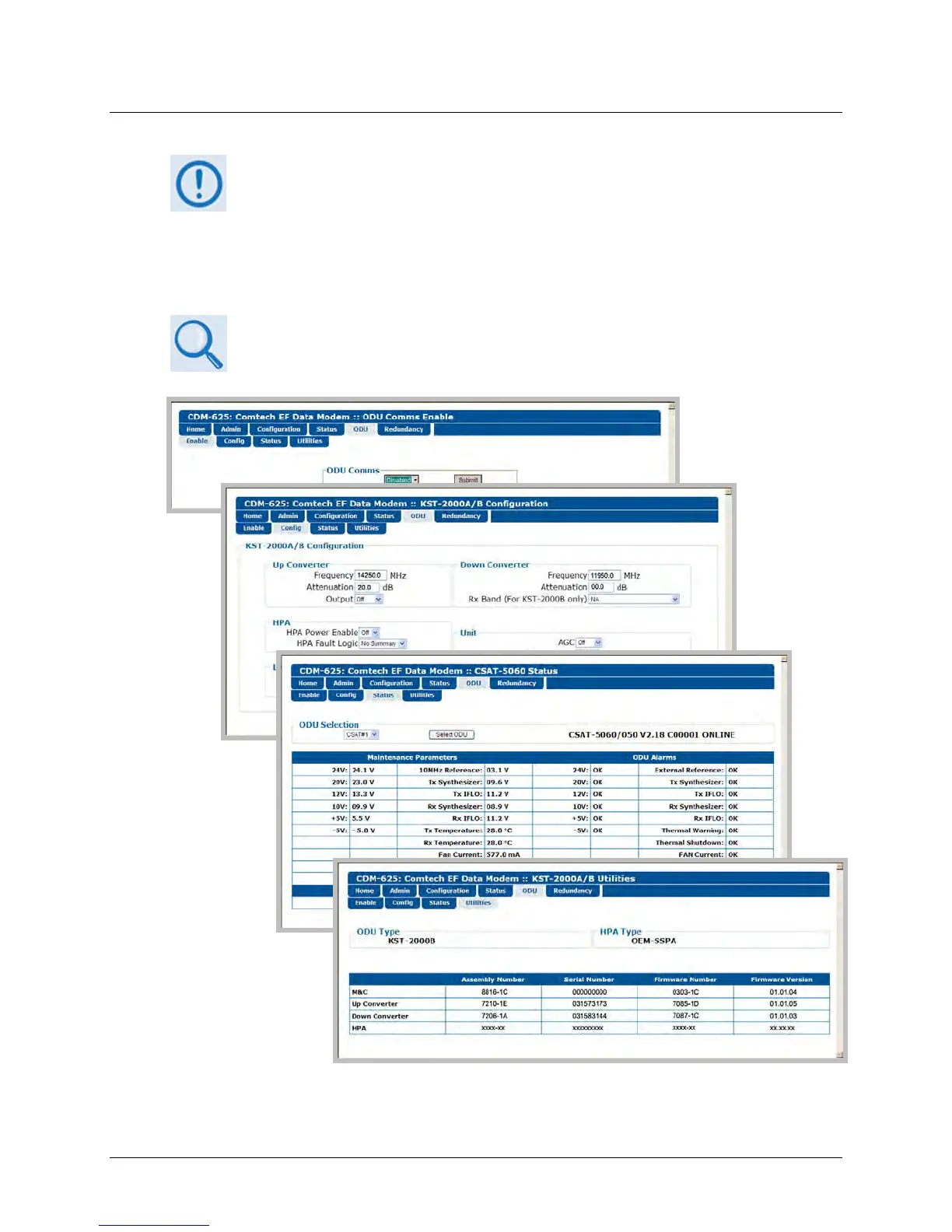

Figure 6-48. ODU Page Examples (Enable, Config, Status, and Utilities)
