6.5.4.4.4.8 Status | Traffic Statistics | MAC Table

Use this page to view and refresh the MAC Addresses that the modem has discovered on one or

more of its Ethernet switch ports.

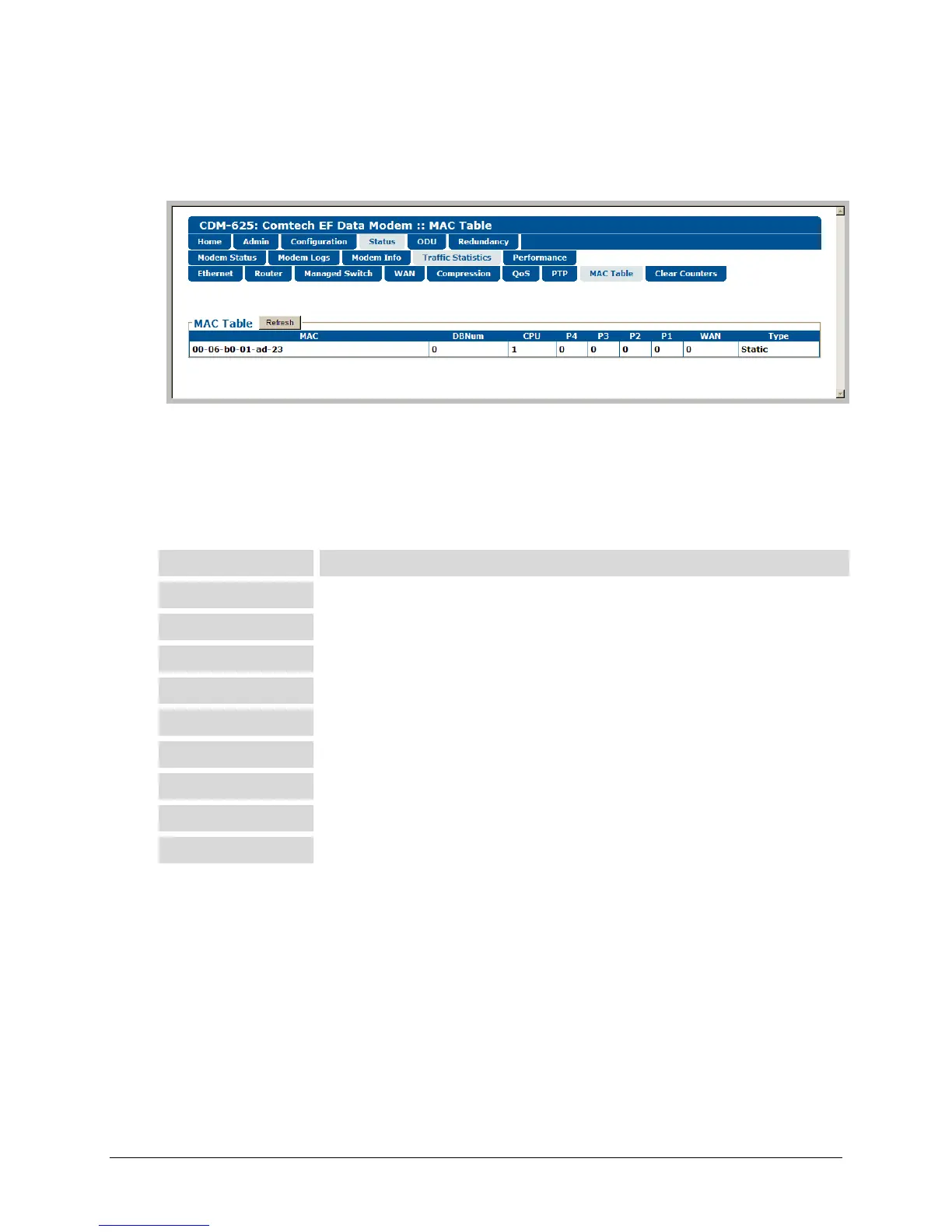

Figure 6-44. Status | Traffic Statistics | MAC Table page

MAC Table

Click [Refresh] to update the page with the latest discovered MAC Addresses.

From left to right, note the following:

Column

Description

MAC

The MAC Address of the device on LAN/WAN

DBNum

Database number (always zero)

CPU

Port connected to the modem’s M&C Management Port

User Traffic Port #4

User Traffic Port #3

User Traffic Port #2

User Traffic Port #1

WAN

Packets going into WAN (when the IP Packet Processor is installed and enabled)

Type

Identifies the MAC address as Static or Dynamic
