CDM-625 Advanced Satellite Modem Revision 13

Ethernet-based Remote Product Management MN-CDM625

6–64

6.5.4.4.3 Status | Modem Info

Use this page to view read-only information about the currently configured modem:

• General Information

• Equipment ID

• Scrollable windows listing Installed Options and available Options – Not Installed

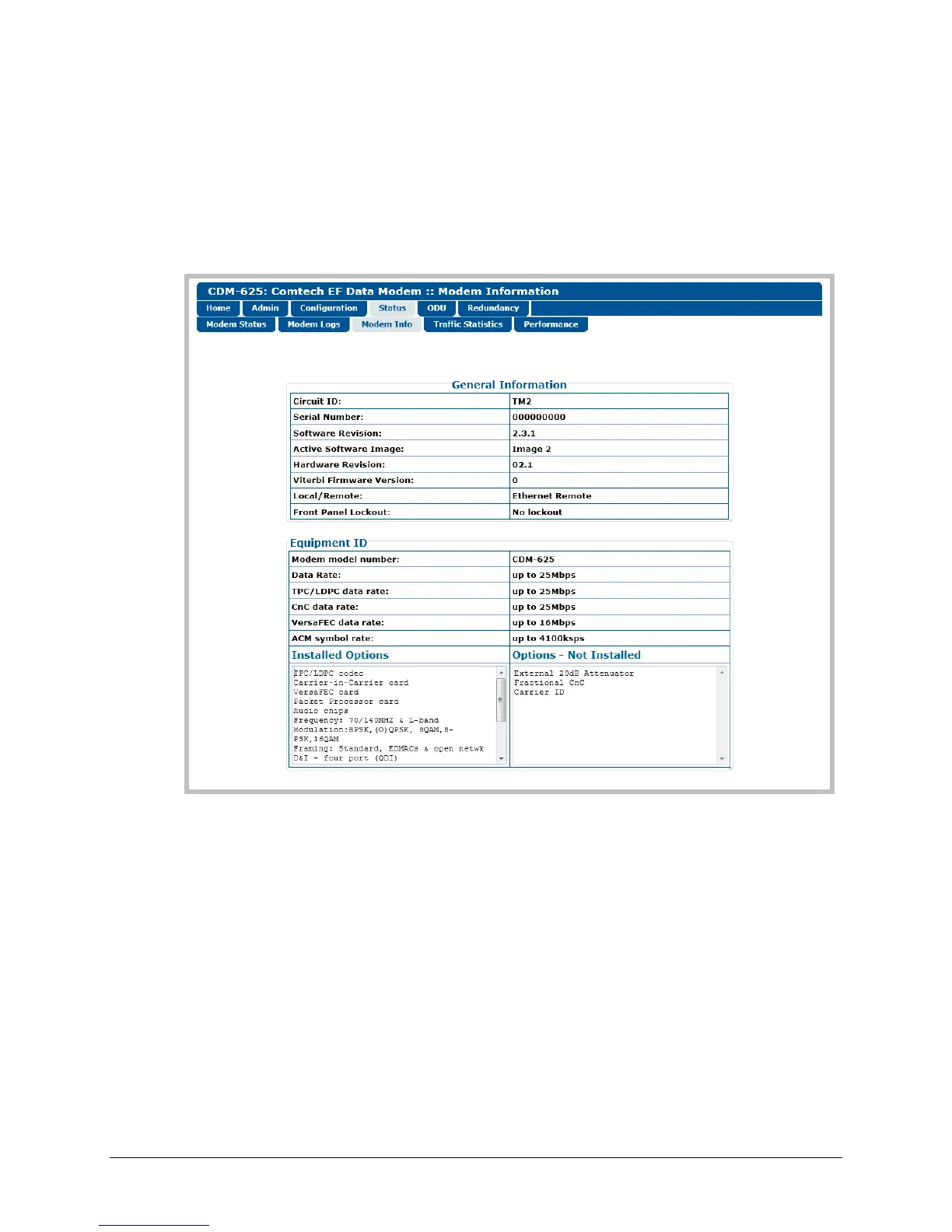

Figure 6-36. Status | Modem Info page
