10.5 Operational References
10.5.1 Carrier-in-Carrier Link Budget Calculation
The following steps are required for calculating the link budget for a Carrier-in-Carrier Link:
Step Task
1

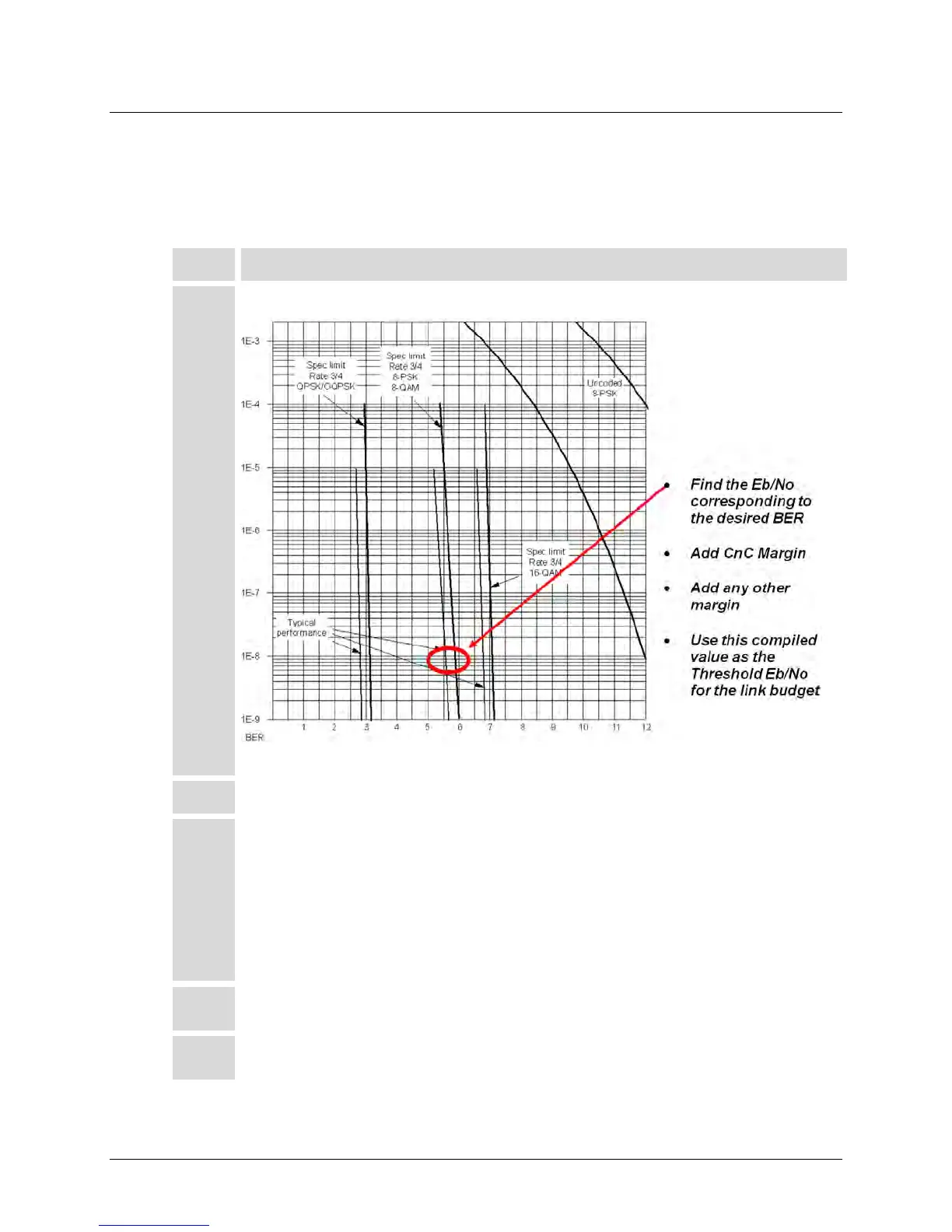

Calculate the link budget for both carriers in the duplex link, with required CnC margin:
2 Verify that the PDS ration is within spec for the CDM-625.
3
Calculate the Allocated Bandwidth (BW) and Power Equivalent Bandwidth (PEB) for the duplex
link:
• BW
Duplex Link
= Greater of (BW
Carrier 1
, BW
Carrier 2
)
• PEB
Duplex Link
= PEB
Carrier 1
+ PEB
Carrier 2
• Leased BW
Duplex Link
= Greater of (BW
Duplex Link
, PEB
Duplex Link
)
4
For an optimal link, the Leased Bandwidth and the Power Equivalent Bandwidth should be
equal / nearly equal.
5
Repeat the link budget process by selecting different Modulation and FEC, until the BW and
PEB is nearly balanced.
