Comtech EF Data CDM-625 - Figure 9-1. TX Clock Modes

To Next Page

To Previous Page

CDM-625 Advanced Satellite Modem Revision 13

Clock Modes and Drop and Insert (D&I) MN-CDM625

9–3

• No framing (EDMAC, etc.) may be used.

• No RS coding may be used.

• RS-422, V.35, HSSI, and LVDS are the only interfaces supported and used on the Type ‘D’

25-pin connector.

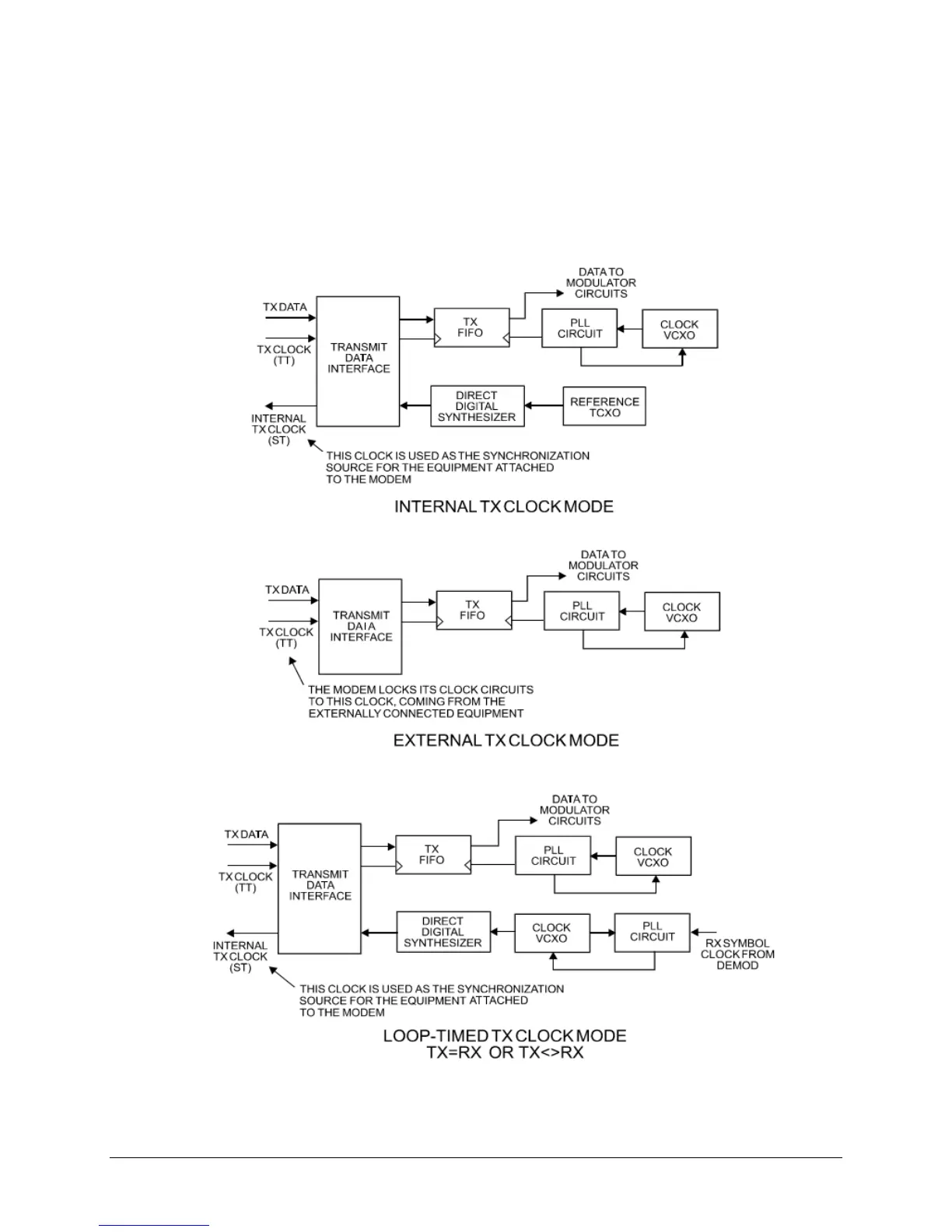

Figure 9-1. TX Clock Modes
