6.5.4.3.9 Configuration | BUC (Block Up Converter)

Appendix F. CDM-625 ODU (TRANSCEIVER, BUC, LNB) OPERATION

After configuring the CDM-625 for L-Band operation, and when a Block Up Converter (BUC) is

installed, you may use this page to configure its operating parameters and to view the BUC

operational status.

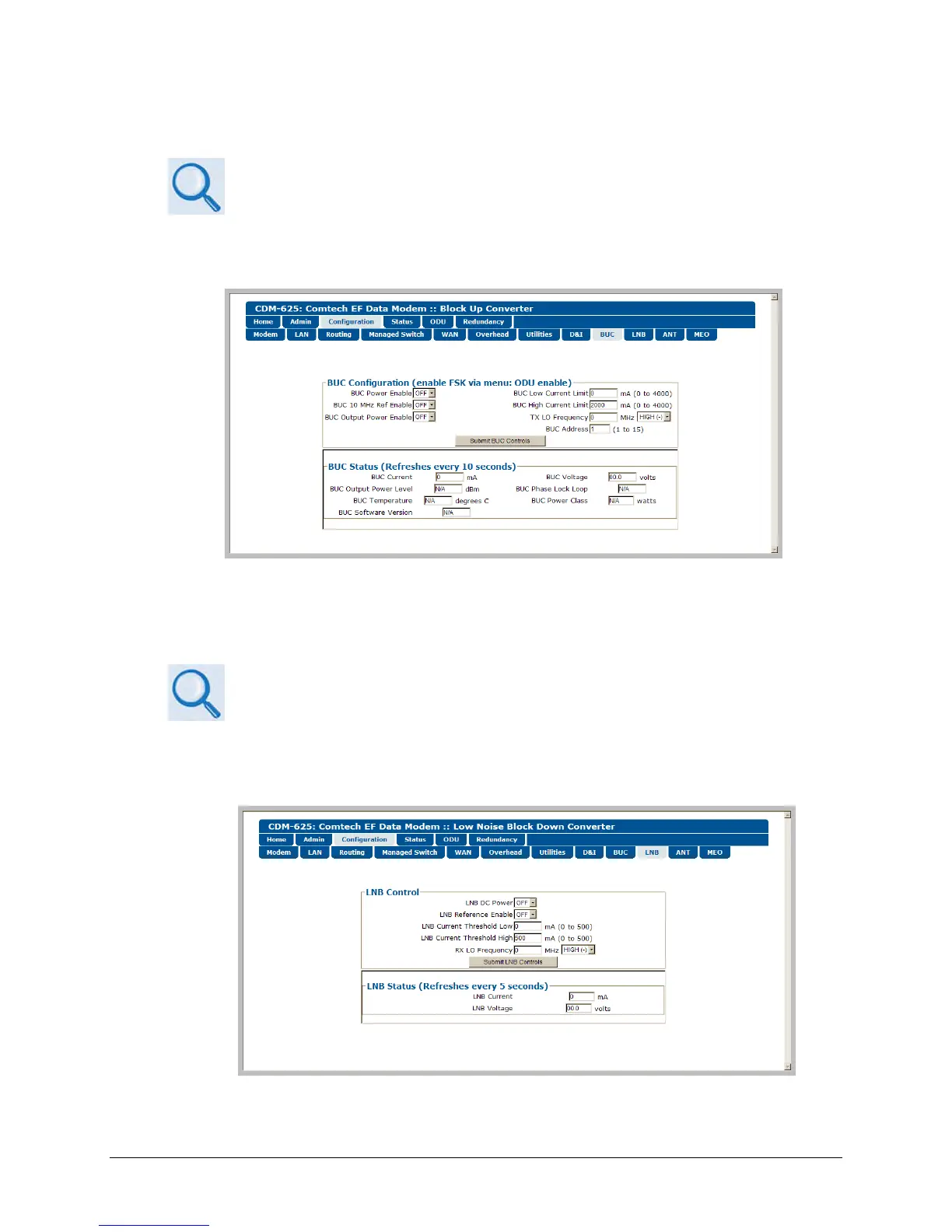

Figure 6-28. Configuration | BUC page

6.5.4.3.10 Configuration | LNB (Low Noise Block Down Converter)

Appendix F. CDM-625 ODU (TRANSCEIVER, BUC, LNB) OPERATION

After configuring the CDM-625 for L-Band operation, and when a Low Noise Block Down

Converter (LNB) is installed, you may use this page to configure its operating parameters and to

view the LNB operational status.

Figure 6-29. Configuration | LNB page
