E.3.2.5 Home > Administration > FAST

• Sect. 5.2.8 SELECT: FAST Menus in Chapter 5. FRONT PANEL OPERATION

• Appendix A. FAST ACTIVATION PROCEDURE

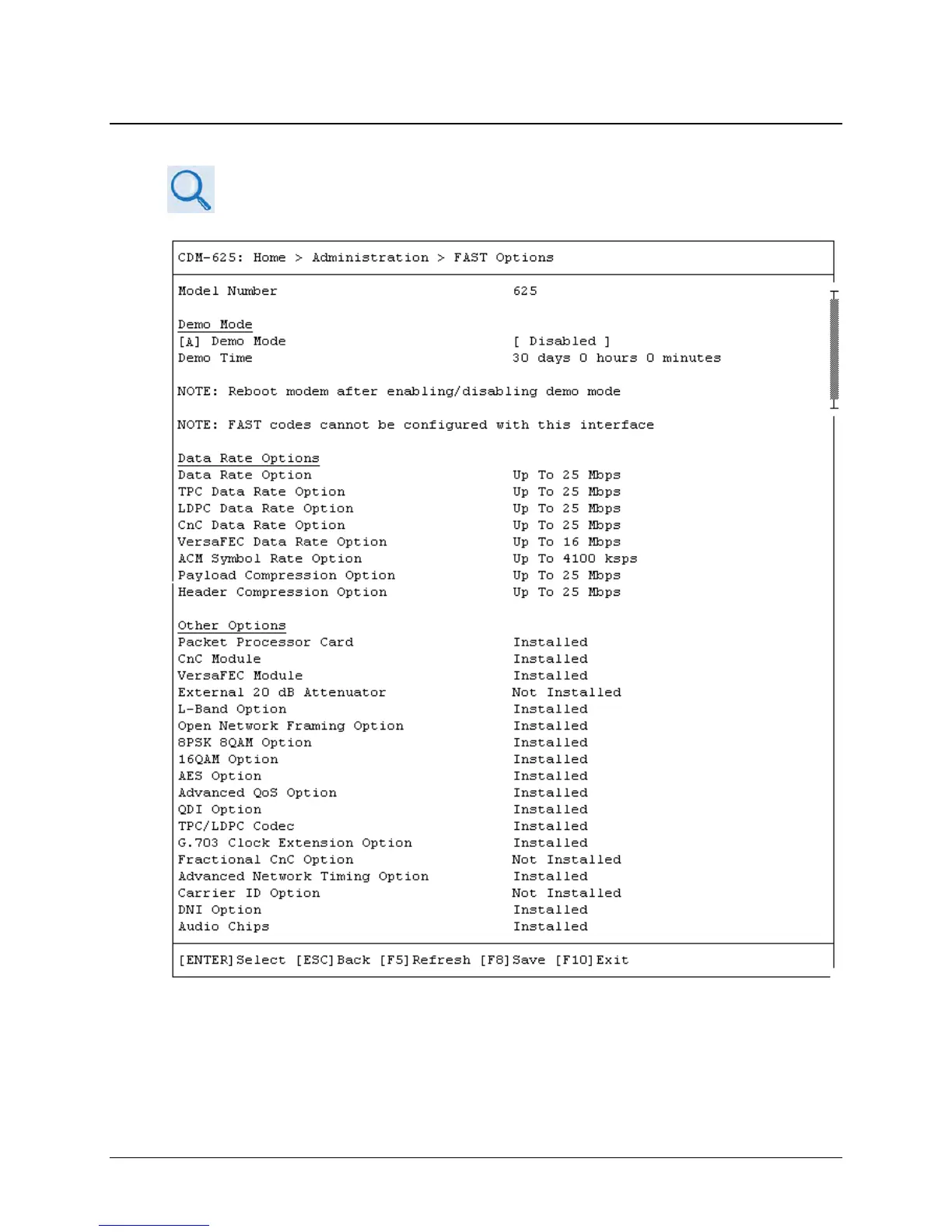

Open the FAST Options page from the Administration submenu. Use this page to review your

unit’s available and installed FAST features.
