CDM-625 Advanced Satellite Modem Revision 13
Introduction MN-CDM625
1–20
Monitor Functions
Eb/No estimate:
2 to 10 dB with ± 0.3 dB accuracy
0 to 16 dB with ± 0.5 dB accuracy
Corrected Bit Error Rate, 1E-3 to 1E-10
Frequency offset, ± 32 kHz range, (or 200 kHz range, depending on band and symbol rate) 100 Hz resolution
Buffer fill state, in percent
Receive signal level:
950-2000 MHz band accuracy: ± 3 dB
50-180 MHz band accuracy: ± 2 dB

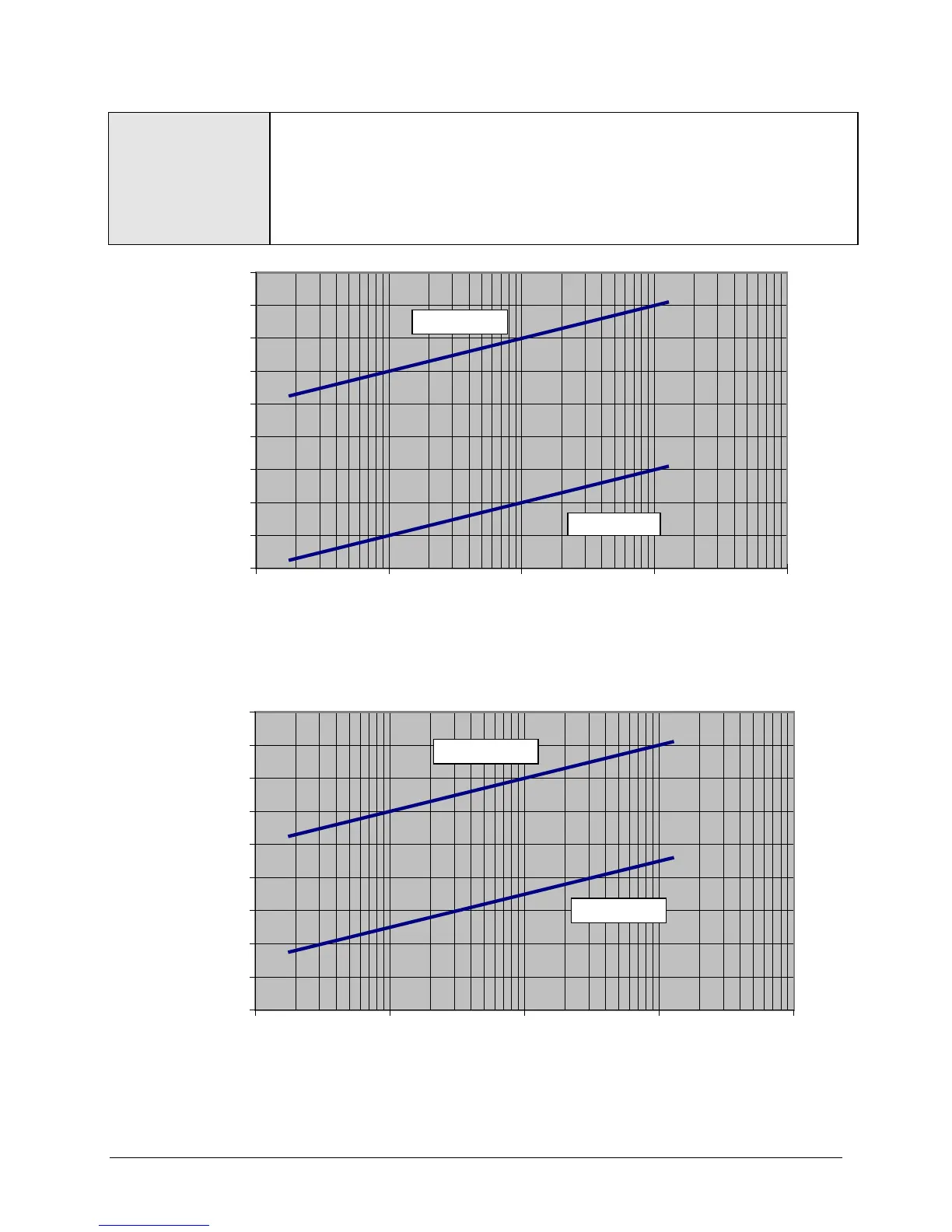

Figure 1-5. Rx Carrier Level vs. Symbol Rate – L-Band (950-2000 MHz)
Figure 1-6. Rx Carrier Level vs. Symbol Rate – IF Band (50-180 MHz)
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
10 100 1000 10000 100000
Symbol Rate in ksps
Carrier Level in dBm
Maximum
Minimum
-80
-70
-60
-50
-40
-30
-20
-10
0
10
10 100 1000 10000 100000
Symbol Rate in ksps
Carrier Level in dBm
Maximum
Minimum
