F.4.2.4.3.2 ODU | Status (KST-2000A/B)
Figure F-12 shows the read-only ‘ODU | Status’ page as it appears when you configure the
Comtech EF Data KST-2000A/B as the ODU.

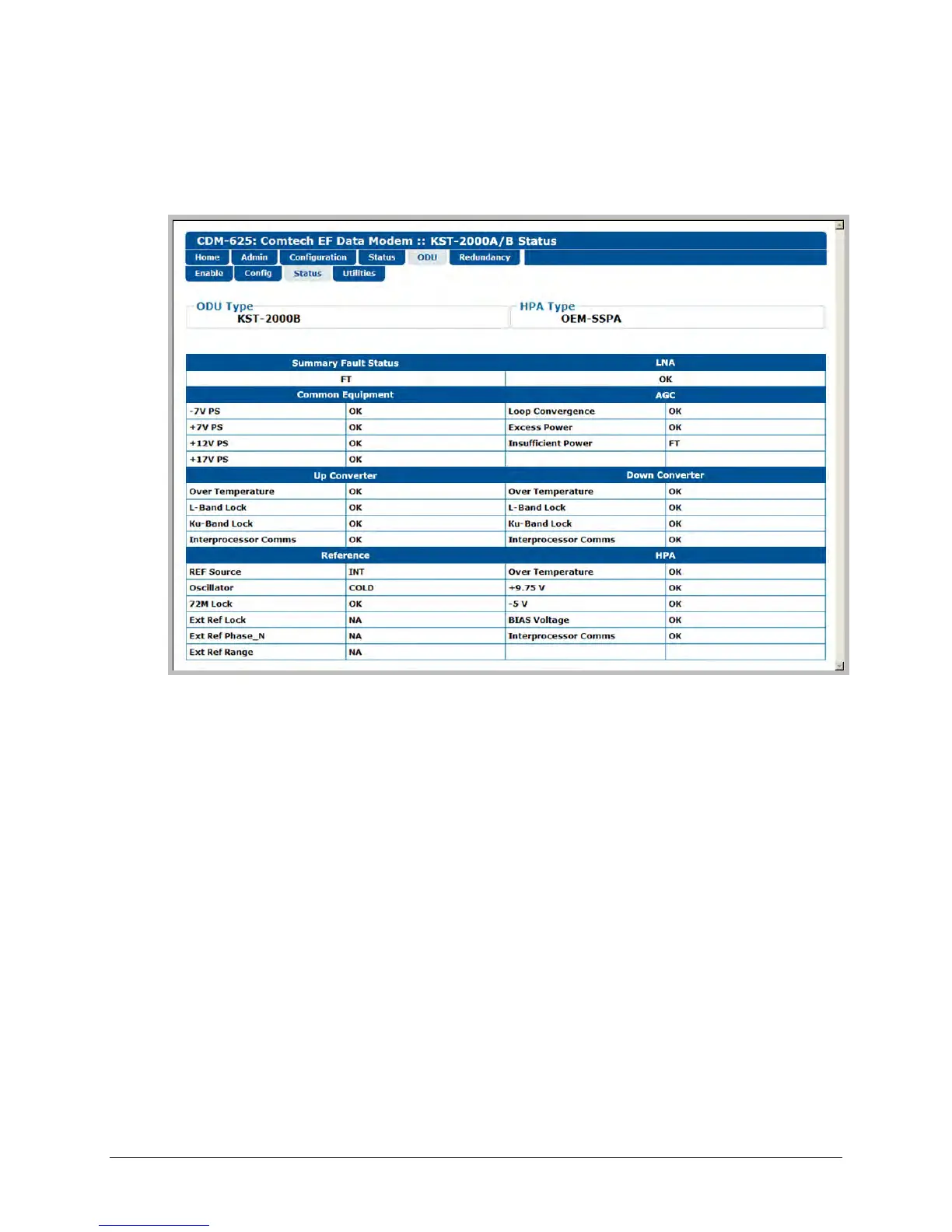

Figure F-12. ODU | Status page (KST-2000A/B)
ODU Type / HPA Type
The section identifies the installed equipment types.
The remainder of this page provides configuration and operational status information (e.g., OK /
FT = Fault) for the following settings:
• Summary Fault Status • LNA (Low-Noise Amplifier • Common Equipment
• AGC (Automatic Gain Control) • Up Converter • Down Converter
• Reference • HPA (High Power Amplifier)
