CDM-625 Advanced Satellite Modem Revision 13

Ethernet-based Remote Product Management MN-CDM625

6–66

6.5.4.4.4.2 Status | Traffic Statistics | Router

This nested page is

accessible only to Admin users and when the optional IP Packet

Processor card is installed and enabled. See Sect. 6.5.3.1 for complete details about

using conditional access pages.

Use this page to view cumulative router traffic information.

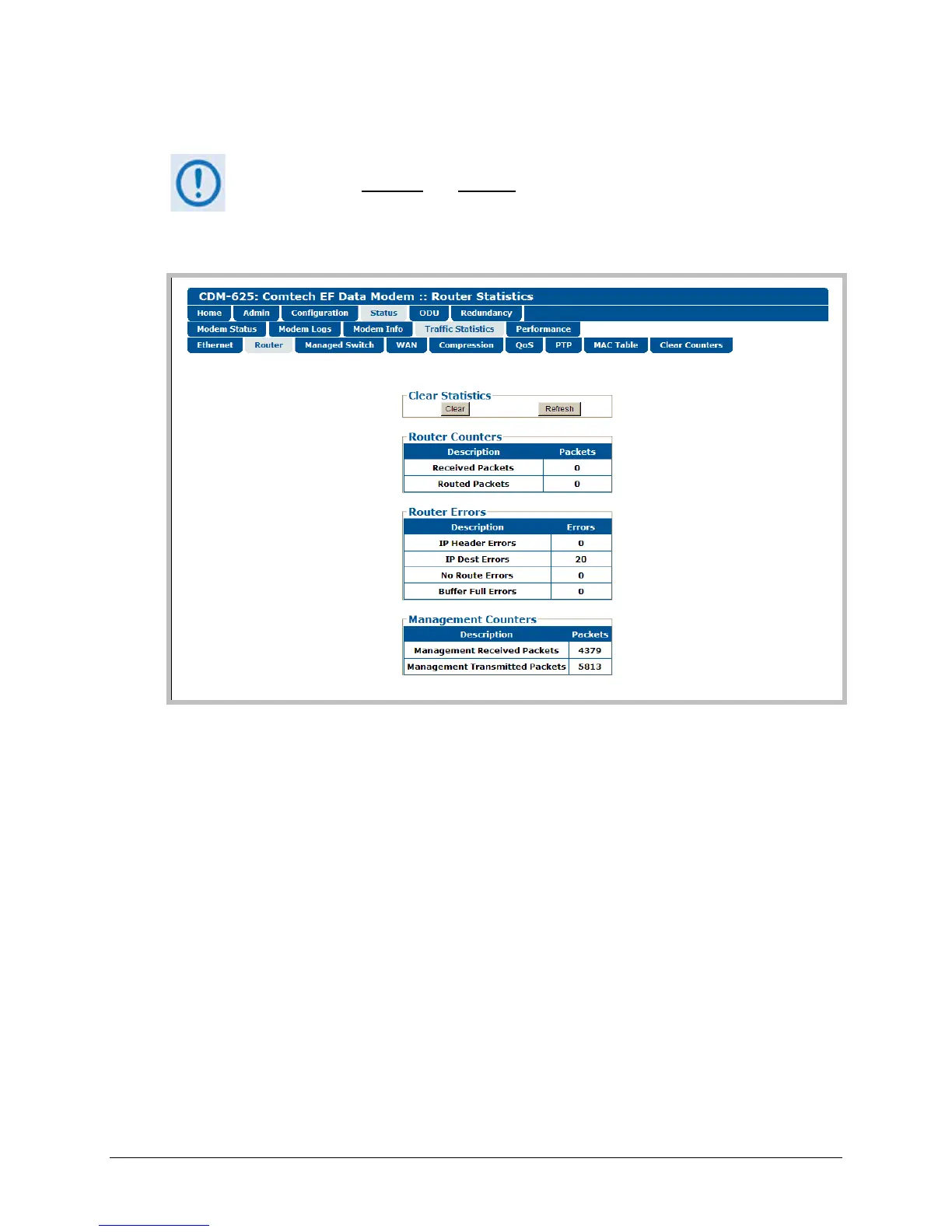

Figure 6-38. Status | Traffic Statistics | Router page

Clear Statistics

Click [Clear] to clear all router statistics from the buffer.

Click [Refresh] to update the page with the latest available statistics.
