E.3.4.2 Home > Network > LAN IP

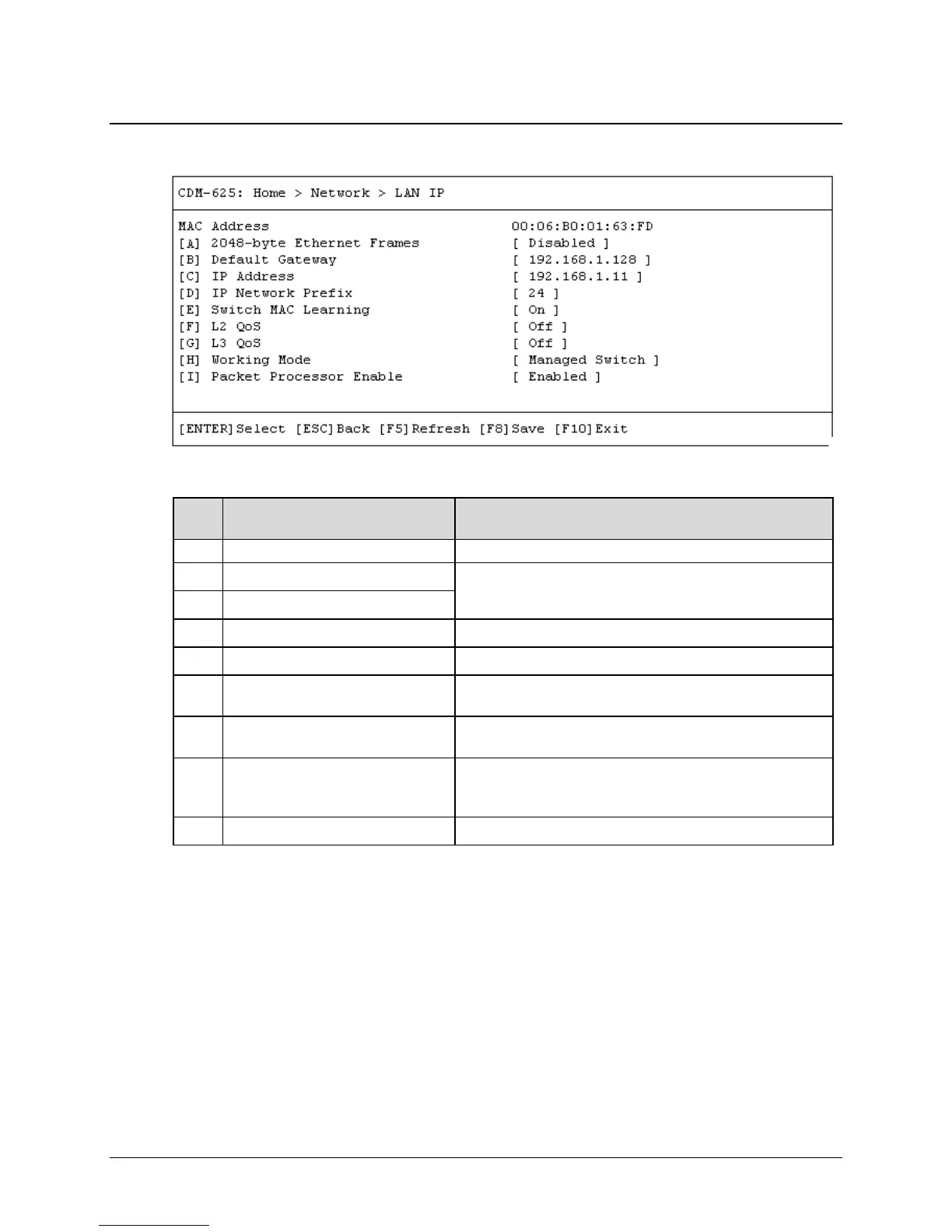

Open the LAN IP page from the Network submenu. This page contains the following options:
Hot
Key
Dialog Window Option Entry
A
2048-byte Ethernet Frames
Use the ↑↓ arrow keys to select Disabled or Enabled
B Default Gateway
Typical for either entry – Enter an IP address in the form
XXX.XXX.XXX.XXX
C IP Address
D IP Network Prefix Enter a value from 8 to 30
E
Switch MAC Learning
Use the ↑↓ arrow keys to select Off or On
F L2 QoS
Use the ↑↓ arrow keys to select Off, VLAN Prio Only, Port Prio
Only, or VLAN and Port Prio
G L3 QoS
Use the ↑↓ arrow keys to select Off, Advanced QoS Max
Priority, Advanced QoS Min Max, or Advanced QoS DiffServ
H Working Mode
Use the ↑↓ arrow keys to select Managed Switch, Router
Point-to-Point, Router Multipoint Hub, or Router Multipoint
Remote
I
Packet Processor Enable
Use the ↑↓ arrow keys to select Disabled or Enabled
Press a hot key to open a dialog window. Otherwise, press [ESC] to return to the Network
submenu.
