CDM-625 Advanced Satellite Modem Revision 13
Appendix F MN-CDM625
F–58
F.5.1.2.1.1 Home > Outdoor Unit (ODU) > CSAT-5060 > Up Converter
Settings 1/2, 2/2
After configuring the CDM-625 for L-
Band operation, and when a Block Up
Converter (BUC) is installed, you may use this page to configure BUC operating
settings and to view the BUC operational status.

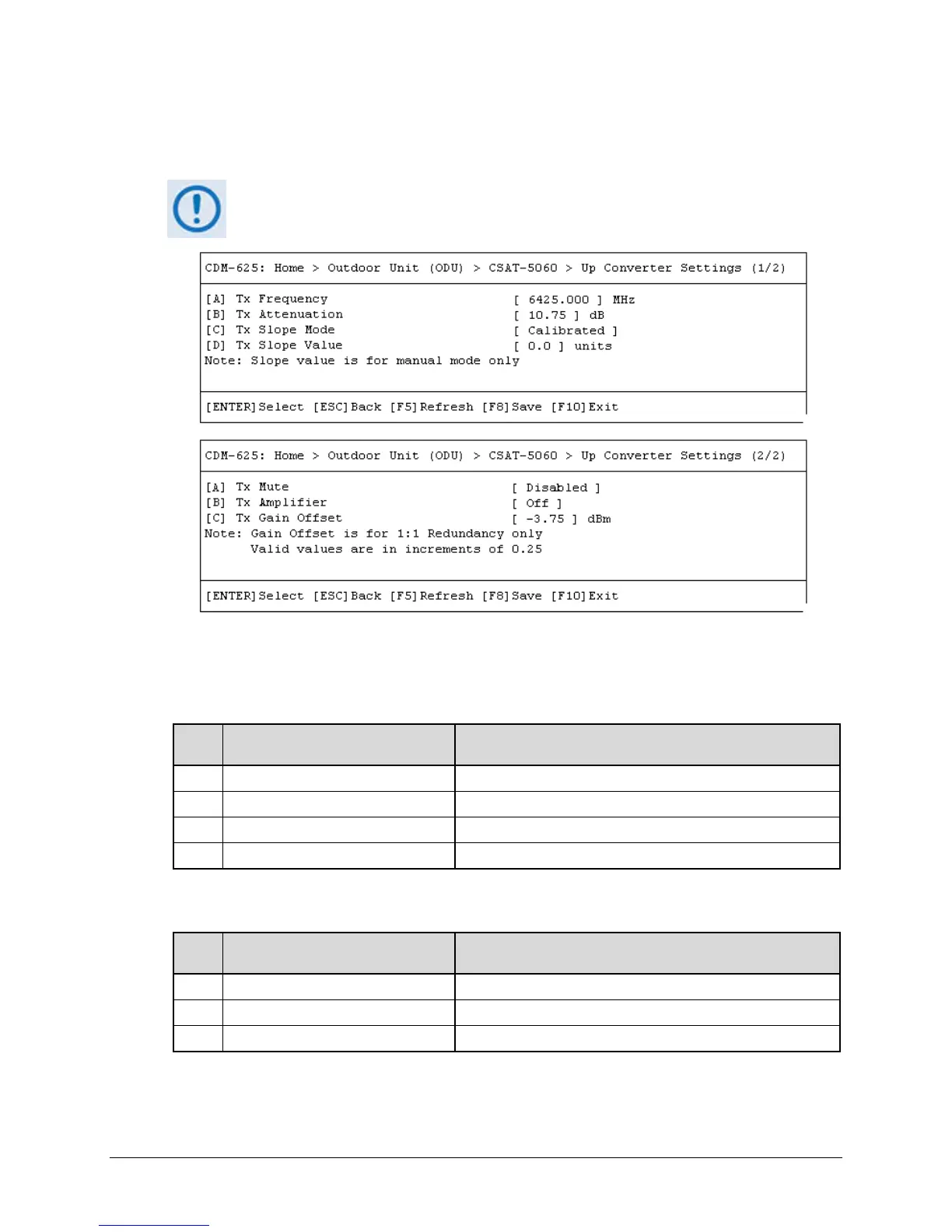

Open the Up Converter Settings 1/2 page or the Up Converter Settings2/2 page from the nested
CSAT-5060 submenu.
The Up Converter Settings 1/2 page contains the following options:
Hot
Key
Dialog Window Option Entry
A
Tx Frequency
Enter a value from 5845.000 to 6725.000 MHz
B
Tx Attenuation
Enter a value from 0.00 to 25.00 dB
C
Tx Slope Mode
Use the ↑↓ arrow keys to select Manual or Calibrated
D
Tx Slope Value
Enter a value from 0.0 to 1.0 units
The Up Converter Settings 2/2 page contains the following options:
Hot
Key
Dialog Window Option Entry
A
Tx Mute
Use the ↑↓ arrow keys to select Disabled or Enabled
B
Tx Amplifier
Use the ↑↓ arrow keys to select Off or On
C
Tx Gain Offset
Enter a value from -4.00 to 0.00 dBm
Typical for either page, press a hot key to open a dialog window. Otherwise, press [ESC] to
return to the nested CSAT-5060 submenu.
