F.5.1.2.1.2 Home > Outdoor Unit (ODU) > CSAT-5060 > Down Converter
Settings 1/2, 2/2
After configuring the CDM-625 for L-Band operation, and when a Low Noise Block
Down Converter (LNB) is installed, you may use this page to configure LNB
operating settings and to view the LNB operational status.
Open the Down Converter Settings 1/2 page or the Down Converter Settings 2/2 page from the
nested CSAT-5060 submenu.

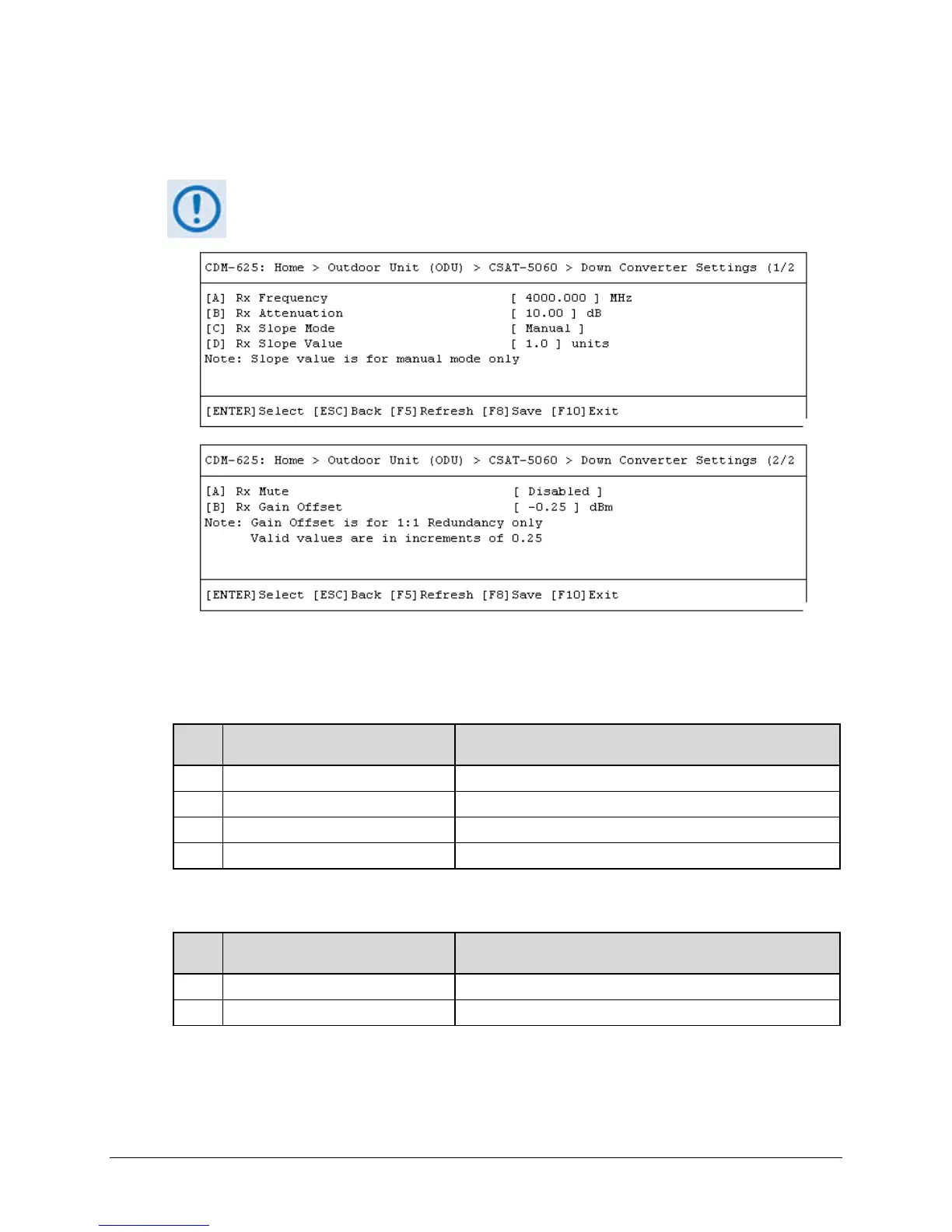

The Down Converter Settings 1/2 page contains the following options:
Hot
Key
Dialog Window Option Entry
A
Rx Frequency
Enter a value from 3400.000 to 4200.000 MHz
B
Rx Attenuation
Enter a value from 0.00 to 20.00 dB
C
Rx Slope Mode
Use the ↑↓ arrow keys to select Manual or Calibrated
D
Rx Slope Value
Enter a value from 0.0 to 1.0 units
The Down Converter Settings 2/2 page contains the following options:
Hot
Key
Dialog Window Option Entry
A
Rx Mute
Use the ↑↓ arrow keys to select Disabled or Enabled
B
Rx Gain Offset
Enter a value from -4.00 to 0.00 dBm
Typical for either page, press a hot key to open a dialog window. Otherwise, press [ESC] to
return to the nested CSAT-5060 submenu.
