CDM-625 Advanced Satellite Modem Revision 13

Ethernet-based Remote Product Management MN-CDM625

6–40

6.5.4.3.5.1.1 Configuration | WAN | QoS Pages – Max/Priority, Min/Max

Modes

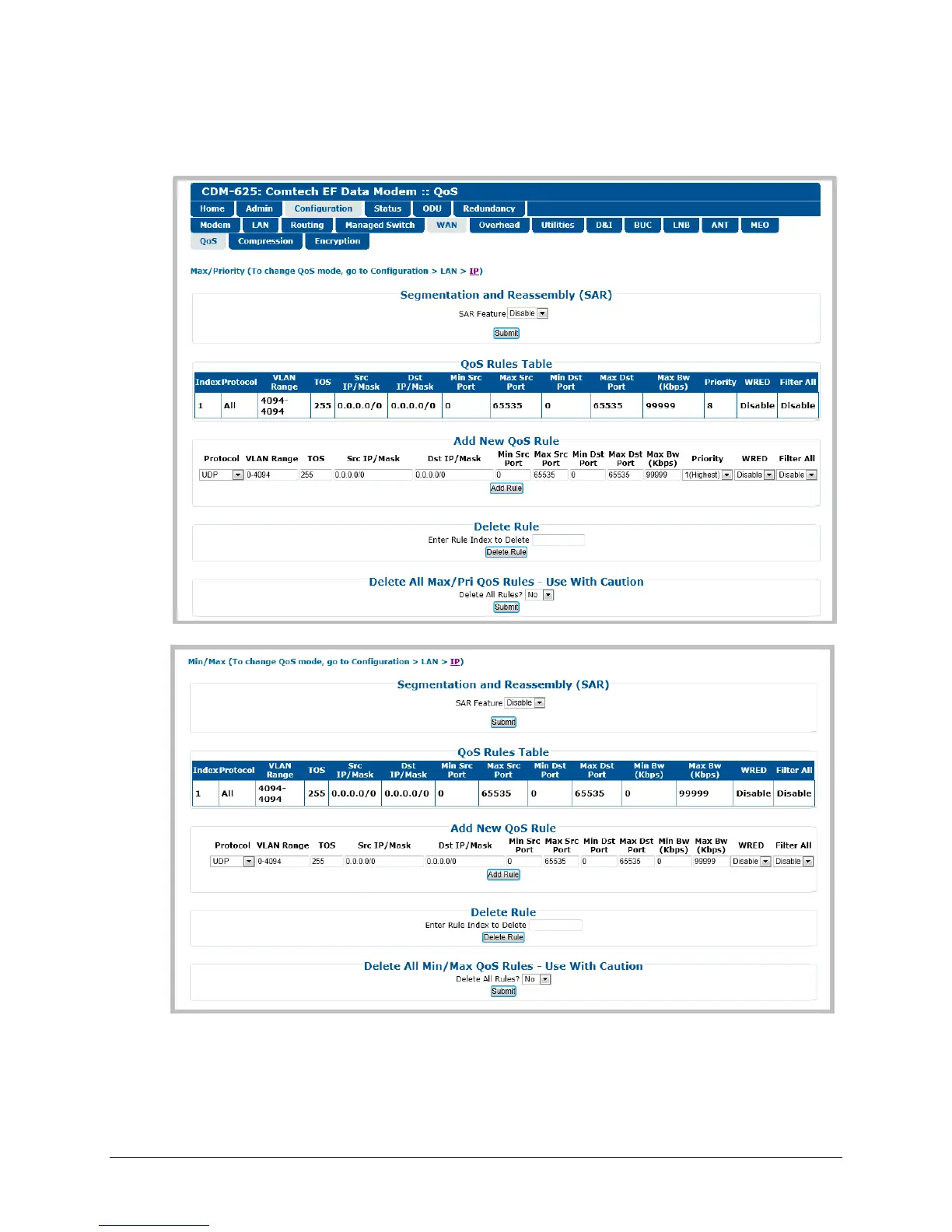

Figure 6-21. Configuration | WAN | QoS Pages

(Top) QoS Control Mode = Max/Priority

(Bottom) QoS Control Mode = Min/Max (Banner, Menu Bar not shown)
